Orion 110/12-30A (360W) Isolated DC-DC converter

Convert 110V DC to 12.2V DC with the Orion 110/12-30A Isolated DC-DC Converter, offering 360W output and 30A continuous current.

Input Voltage Range: 100–150V DC Output Voltage: 12.2V DC Continuous Output Current: 30A Power Output: 360W Dimensions: 64 mm (H) × 163 mm (W) × 160 mm (D)
£438.00 £383.25 SAVE £54.75
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ORI110123610
AVAILABLE IN 7-10 DAYS
Product Details

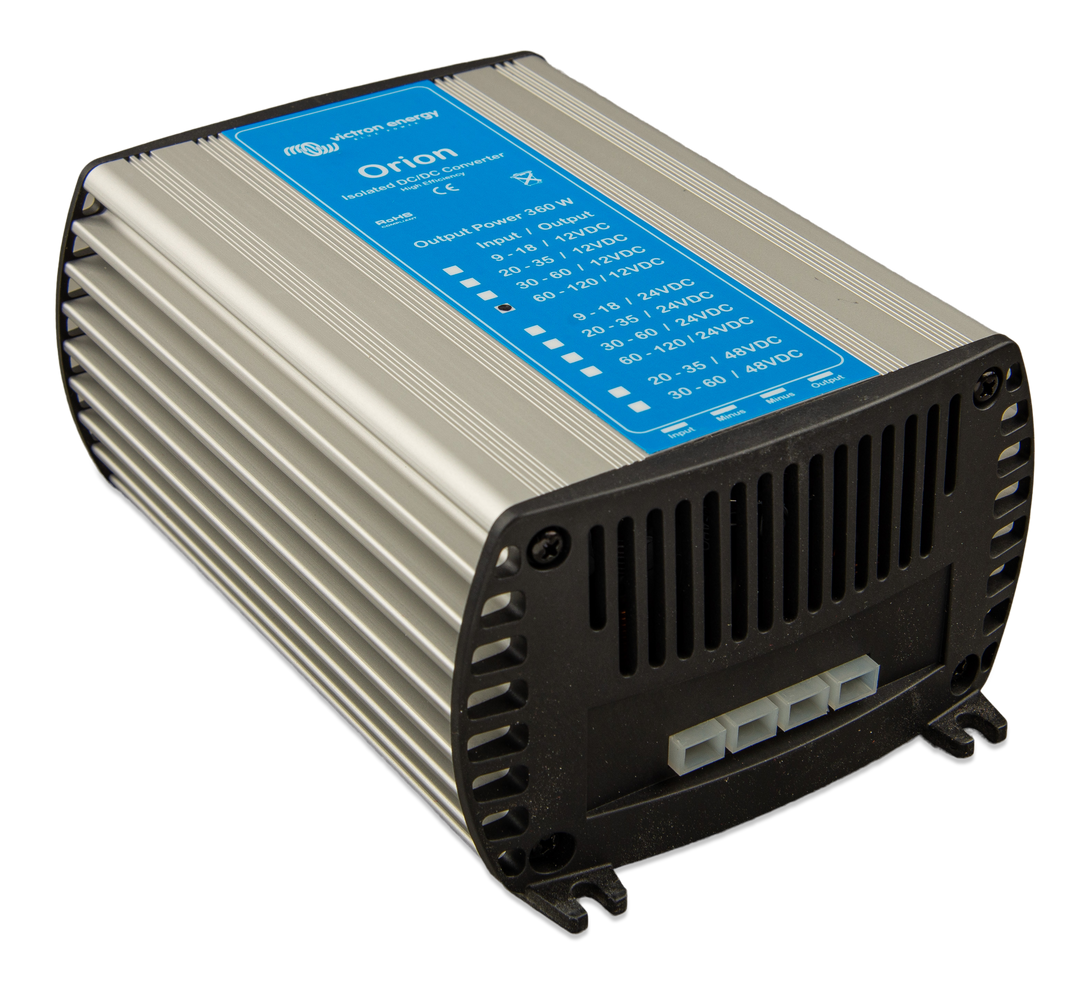

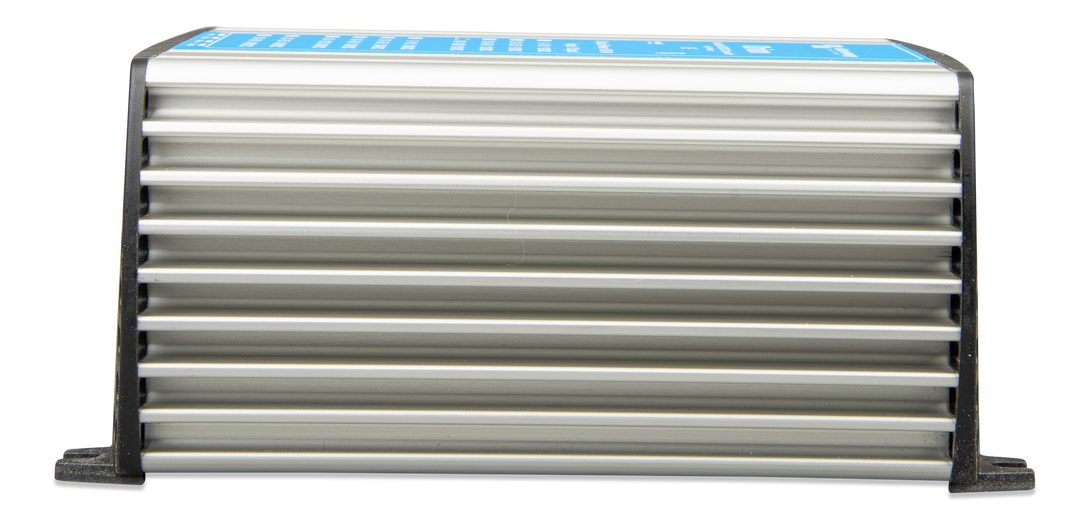

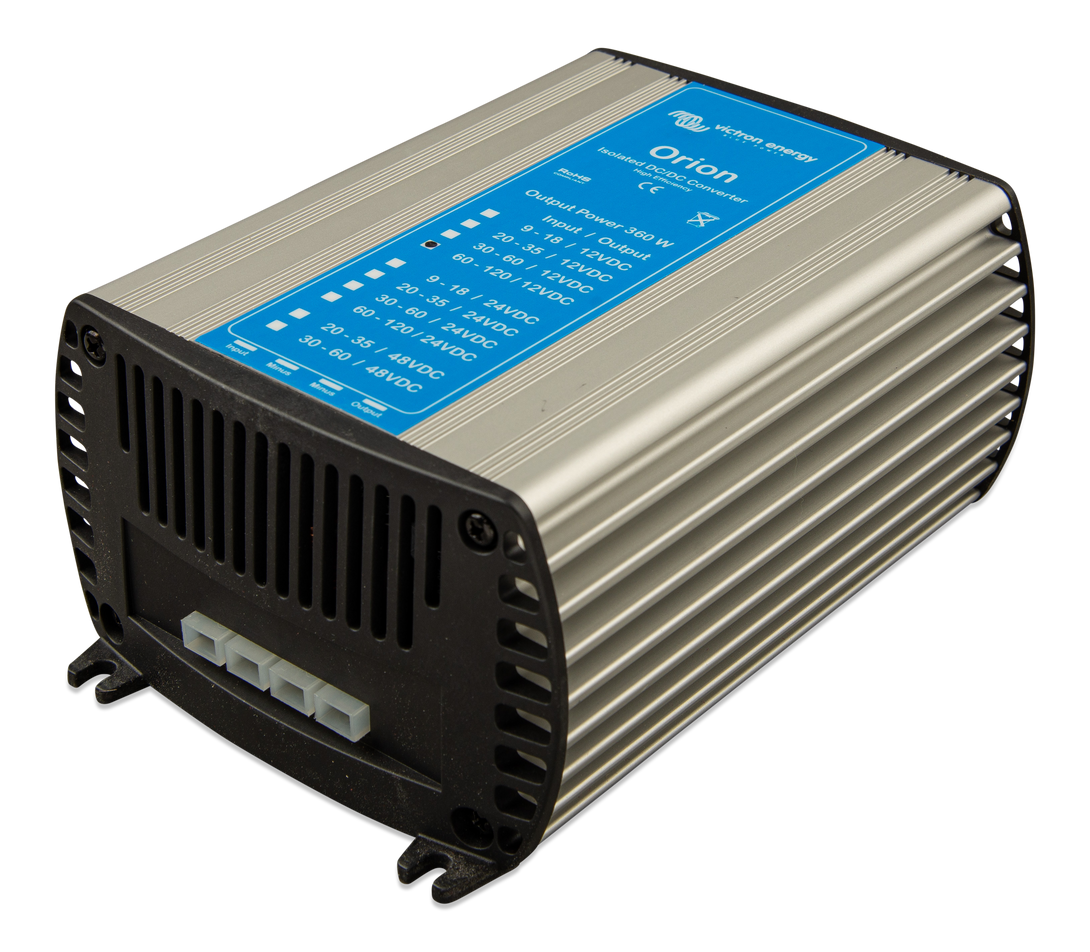

The Victron Energy Orion 110/12-30A (360W) Isolated DC-DC Converter is engineered to efficiently convert a 110V DC input to a stable 12.2V DC output, delivering up to 30A of continuous current. This converter is ideal for applications requiring a reliable 12.2V power source from a 110V battery system. It features galvanic isolation, ensuring safe and efficient operation in various setups.

With its compact dimensions of 64 mm (H) × 163 mm (W) × 160 mm (D), it is suitable for installations with limited space.

Product Specifications

Technical Specifications

Combined for SKUs: ORI110123610

Colour: Grey

Continuous Output Current: 30 A

Dc Connection Terminal Type: Faston tab 6.3 mm

Depth: 190 mm

Emission: EN 55014-1,EN-IEC 61000-6-3

Fan Assisted Cooling: Yes

Galvanic Isolation: Yes

Height: 82 mm

Immunity: EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2

Input Voltage Range: [60, 140] V

Isolation: 400 Vrms

Material: Anodized aluminium

Max Efficiency: 85

Max Humidity: 95 %

Off Load Current: 25

Output Voltage: 12.5 V

Output Voltage Noise: 50 mVrms

Output Voltage Stability: 2 %

Output Voltage Tolerance: 3 %

Power Rating: 360 W

Protections: Battery reverse polarity (fuse),Overload,Overcurrent,Over temperature

Safety: EN 60950

Weight: 1.4 kg

Width: 132 mm

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Orion 110/12-30A (360W) Isolated DC-DC converter - Manual
Orion 110/12-30A (360W) Isolated DC-DC converter - Data Sheet
