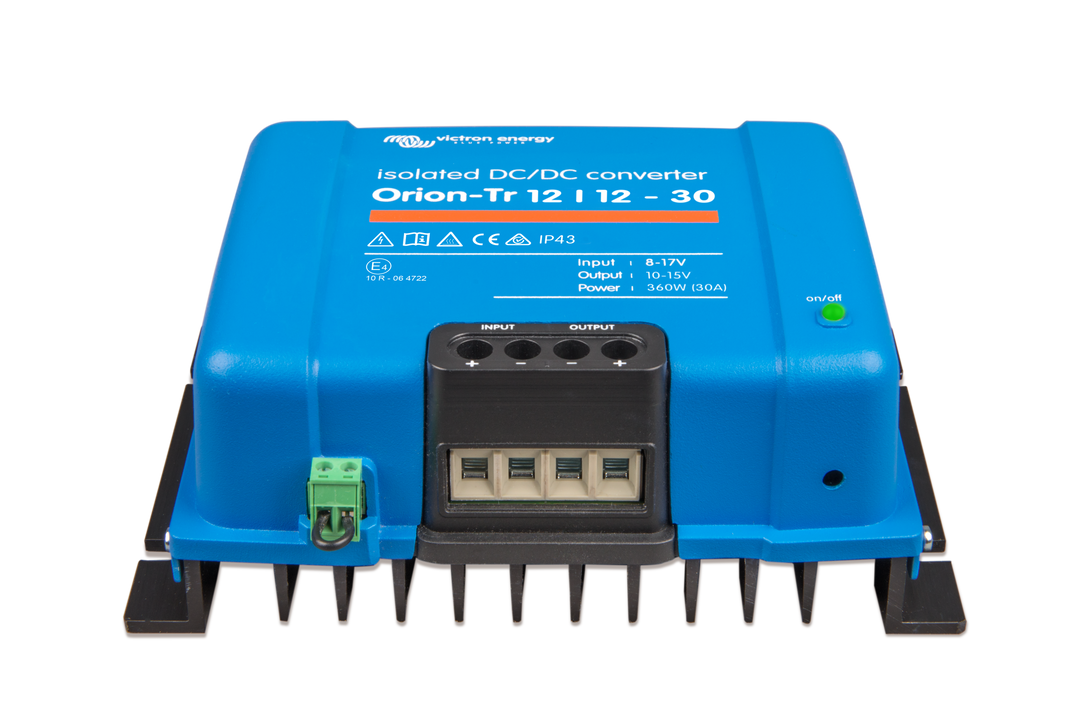

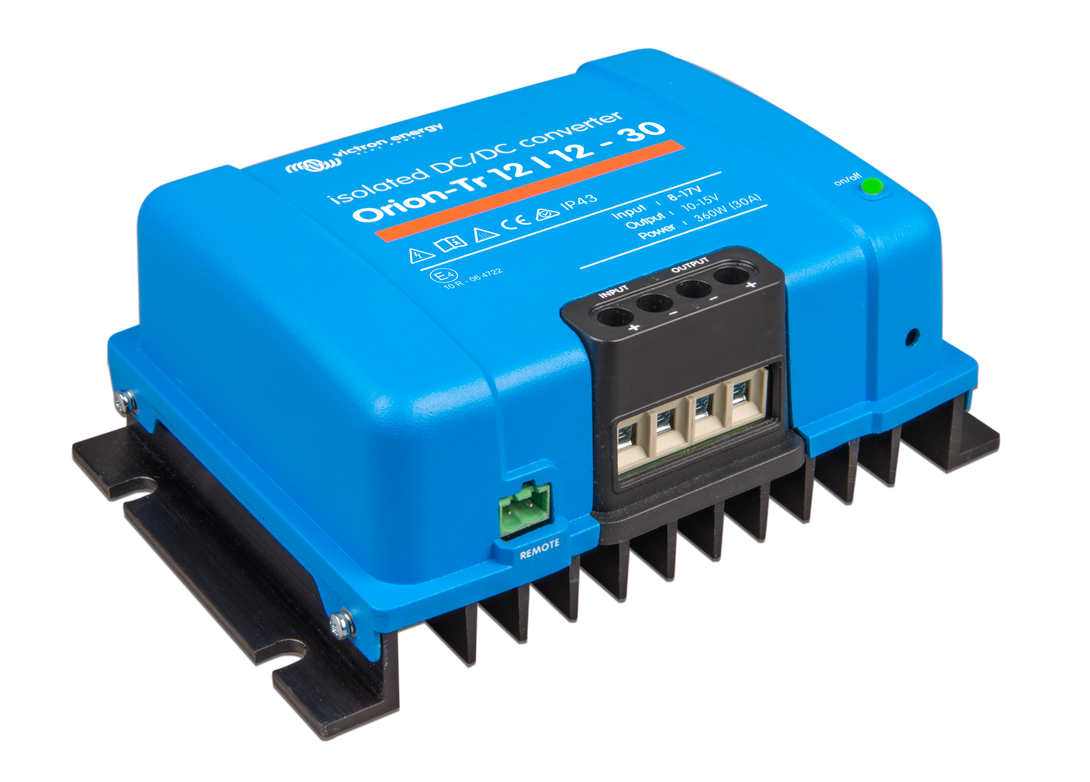

Victron Orion-Tr 12/12-30A (360W) Isolated DC-DC converter

Electrical Specifications

• Input Voltage Range: 8 – 17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10 – 15 V (Note: Not intended for battery charging)
• Output Voltage Tolerance: +/- 0.2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage (40°C): 30 A
• Maximum Output Current (10 s) at Nominal Output Voltage minus 20%: 40 A
• Short Circuit Output Current: 60 A
• Cont. Output Power at 25°C: 430 W
• Cont. Output Power at 40°C: 360 W
• Efficiency: 87%
• No Load Input Current: < 80 mA
• Current Consumption (Disabled via remote port): < 200 µA
• Galvanic Isolation: 200 VDC between input, output, and case

Features & Protection

• Remote On/Off: Can be operated with a low-power switch or an engine run/stop switch.
• Parallel Operation: An unlimited number of units can be connected in parallel.
• High Temperature Protection: Output current reduces at high ambient temperatures.
• Input Fuse: Integrated non-replaceable input fuse.
• Protection Category: IP43 (When installed with screw terminals oriented downwards).

Mechanical & Environmental

• Operating Temperature Range: -20 to +55 °C (Derate 3% per °C above 40 °C)
• Humidity: Max. 95% non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-section: 16 mm² (AWG6)
• Weight: 1.8 kg (4 lb)
• Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)

Standards & Certifications

• Safety: EN 60950
• Emission: EN 61000-6-3, EN 55014-1
• Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive: ECE R10-5
