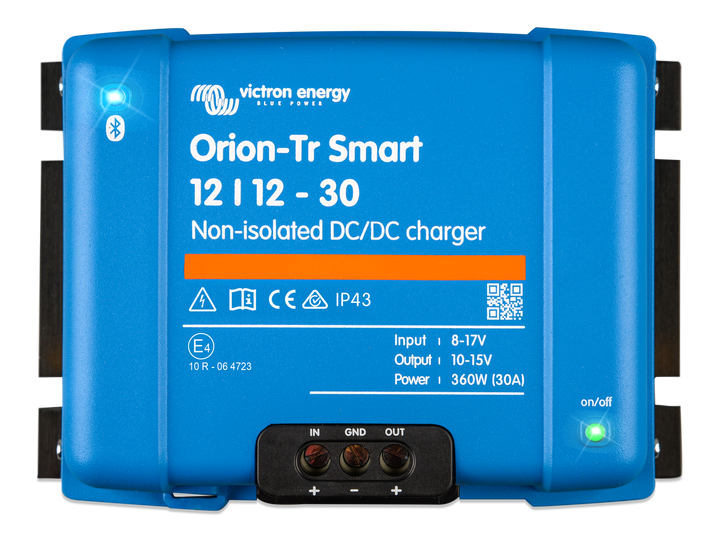

Blue Victron Energy Orion-Tr Smart DC/DC charger on a white background
Callidus Trade: A blue Victron Energy Orion-Tr Smart non-isolated DC-DC charger with multiple connection ports.
Callidus Trade: A blue Victron Energy Orion-Tr Smart non-isolated DC-DC charger with multiple connection ports.
Callidus Trade: smart phone running the Victron Energy Orion Smart App.
Fast Delivery
Expert Support

Victron Battery To Battery Charger 30A – 12/12 Orion-Tr Smart – Non-Isolated DC-DC Charger

The Victron Orion-Tr Smart 30A 12/12 non-isolated DC-DC charger is the ideal solution for charging a 12V leisure or auxiliary battery from a 12V starter battery. With built-in Bluetooth for easy monitoring and configuration, it delivers efficient multi-stage charging to protect your battery bank and extend service life. Perfect for campervans, boats, off-grid and vehicle systems.

30A Charging Current (360W). For 12V systems. Monitor settings and performance remotely via Bluetooth.
£271.20 £152.00 SAVE £119.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ORI121236140
IN STOCK
Receive between -
Product Details

Victron Energy Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC charger – ORI121236140

Efficient Battery Charging on the Go:

The Victron Orion-Tr Smart 30A Battery to Battery Charger intelligently charges your leisure batteries from your vehicle's starter battery while driving, ensuring a safe and optimized charging process.


Modern Vehicle Compatibility:

Designed for vehicles with Euro 5 or Euro 6 engines equipped with smart alternators, the Orion-Tr Smart B2B eliminates the limitations of basic Voltage Sensitive Relays (VSRs) and offers a viable charging solution.


Easy Installation and Operation:

With a straightforward installation process that requires access to the vehicle's starter battery, the Orion-Tr Smart B2B is user-friendly and efficient. The 30A model charges the leisure battery at a rate of 30A/hr.


Smart Functionality with Bluetooth:

Equipped with built-in Bluetooth, the Victron battery to battery charger connects wirelessly to the VictronConnect App, available on Android or iOS devices. This smart functionality allows for wireless monitoring, programming, and remote control via a switch.


Versatile Charger for Various Applications:

Ideal for dual battery systems in vehicles or boats where the alternator and start battery charge the service battery. The Orion Tr-Smart charger is suitable for both lead acid and lithium batteries, with models available up to 400W. It operates effectively in high temperatures up to 55°C, providing a full-rated output up to 40°C.

Product Specifications

Technical Specifications

Combined for SKUs: ORI121236140

Automotive Directive: ECE R10-5

Bluetooth: Yes

Colour: Blue (RAL 5012)

Cont Output Current Rating40: 30 A

Continuous Output Power25: 430 W

Continuous Output Power40: 360 W

Depth: 80 mm

Emission: EN 55014-1,EN-IEC 61000-6-3

Height: 130 mm

Immunity: EN 55014-1,EN-IEC 61000-6-1, EN-IEC 61000-6-2

Input Voltage Range: [8, 17] V

Max Efficiency: 87

Max Humidity: 95 %

Max Output Current: 40 A

Maximum Shortcircuit Current: 60 A

No Load Current Consumption: 80 mA

Output Derating Above40: 3 %

Output Voltage: 12.2 V

Output Voltage Noise: 2 mVrms

Output Voltage Range: [10, 15] V

Output Voltage Tolerance: 200 mVrms

Power Supply Use: Yes

Programable: Yes

Protection Category: IP22 (connection area),IP43 (electronic components)

Remote On Off Terminal: Yes

Remote On Off Terminal Connection: Screw terminal two pole

Safety: EN 60950

Standby Current Consumption: 1 mA

Under Voltage Restart: 7.5 V

Under Voltage Shutdown: 7 V

Weight: 1.8 kg

Width: 186 mm

Source: Victron
