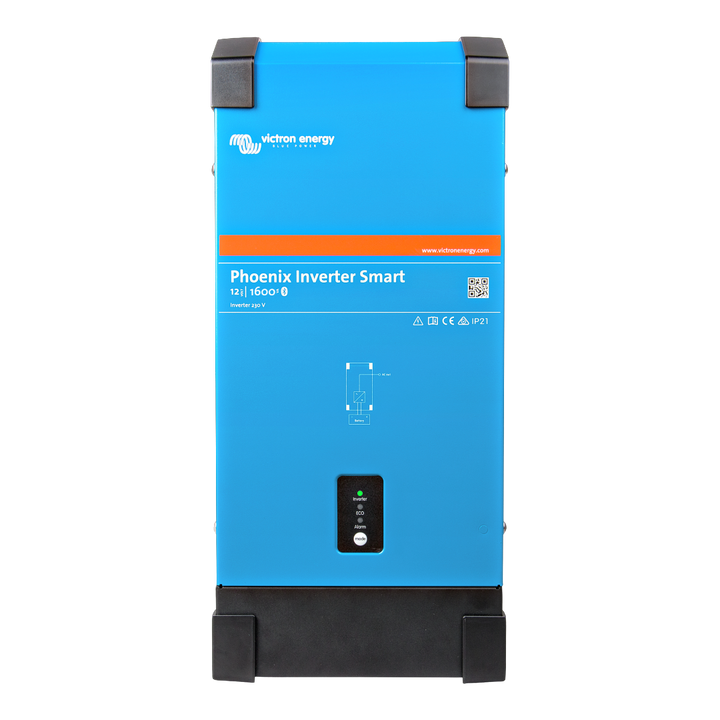

Victron 1600VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter

The Victron Smart Phoenix Inverter 12/1600 delivers reliable, pure sine wave AC power from a 12 V DC battery source. Featuring built‑in Bluetooth, it's ideal for off‑grid, marine, and mobile applications.

Max constant power 1600VA 12V DC Power to 230V AC Power. Pure sine wave inverter. Quiet, efficient and reliable. Monitor the status of your system with Bluetooth. Dimensions: 485 x 219 x 125mm Weight: 12kg
£838.80 £399.00 SAVE £439.80
This product is on clearance/reduced pricing.
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN122161000
IN STOCK
Receive between -

People Also Bought:

Frequently Bought Together

Total price:£1,011.60 £476.39
Product Details

Victron Energy Pure Sine Wave Smart Phoenix Inverter 12/1600 – PIN122161000

Powerful Off-Grid Performance:

The Victron Energy Pure Sine Wave Smart Phoenix Inverter 12/1600 converts 12V DC power from your leisure batteries into a continuous 230V AC power supply, providing up to 1600VA for off-grid applications like campervans, boats, and tiny houses.


Smart Connectivity for Monitoring:

Equipped with built-in Bluetooth and smart connectivity, the 1600VA inverter allows you to monitor its performance and settings through the Victron Connect app. Enjoy real-time insights, programmable alarms, and cut-offs, ensuring efficient and secure operation.


Versatile Use Cases:

Ideal for off-grid electrical systems in campervans, motorhomes, RVs, boats, and tiny houses, the 1600VA Phoenix inverter is suitable for powering mains appliances with a total wattage of 1600VA or less.


Pure Sine Wave Technology:

As a pure sine wave inverter, it precisely reproduces the 230V AC waveform found in household mains sockets. This ensures compatibility with all 230V appliances, offering a reliable power source without the risk of damage or malfunctions.


Proven Reliability and Safety Features:

Victron inverters boast short circuit protection and defence against overheating, providing reliability under various conditions. The inverter includes a range of safety features, such as low battery voltage alarms, cut-offs, and restart levels, ensuring the longevity of your battery system.


High Start-Up Power and ECO Mode:

The inverter supports high start-up power, crucial for devices like power converters, LED lamps, halogen lamps, or electric tools. The ECO mode optimizes power consumption by switching to standby during low loads, contributing to energy efficiency when the inverter is not in active use.


Remote Control Convenience:

Connect a remote on/off switch to the Victron Phoenix inverter for convenient control, allowing you to turn off the inverter from a designated control panel rather than using the on/off switch on the unit itself.



Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 12 V
  • Input Voltage Range: 9.5 – 17 V
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240 V)
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 1600 VA
  • Continuous Output Power at 25°C: 1300 W
  • Continuous Output Power at 40°C: 1200 W
  • Continuous Output Power at 65°C: 800 W
  • Peak Power: 3000 W
  • Maximum Efficiency: 92%
  • Zero-Load Power: 8 W
  • Zero-Load Power (AES Mode): 5 W
  • Zero-Load Power (Search Mode): 2 W

Features & Connectivity

  • SinusMax Technology: Superior engineering provides very high start-up power that conventional high-frequency technology cannot offer.
  • VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration.
  • Parallel Operation: Up to 6 units can operate in parallel to achieve significantly higher power output.
  • Three-Phase Capability: Multiple units can be configured for three-phase power output.
  • Programmable Relay: Can be configured for functions such as a general alarm, DC under-voltage, or generator start/stop. (AC rating: 230V / 4A; DC rating: 4A up to 35VDC).
  • Remote On-Off: Yes
  • Customizable Parameters: Use a PC and the MK3-USB interface to customize output voltage, frequency, and voltage thresholds via VictronConnect or VEConfigure software.
  • Monitoring and Control: Can be connected to a GX device (e.g., Cerbo GX) for intuitive system monitoring.

Mechanical & Enclosure

  • Dimensions (H x W x D): 375 x 214 x 110 mm
  • Weight: 10 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: M8 bolts
  • 230V AC Connection: G-ST18i plug

Environmental & Standards

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
  • Humidity (Non-condensing): Max 95%
  • Safety Standards: EN 60335-1
  • Emission / Immunity: EN 55014-1 / EN 55014-2
  • Integrated Protections: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1600VA inverter with an estimated continuous output of ~1300W. A comfortable all-rounder for serious motorhome and off-grid base loads.

Inverter size 1600VA
Continuous output ~1300W

Typical appliances you can run

  • Induction hob on a medium setting (around 1000–1300W)
  • Larger inverter air-con (around 900–1200W running)
  • Vacuum cleaner (modern, around 700–900W)
  • Heated clothes airer (around 300W)
  • Dishwasher, heat-pump type (around 900W)
  • Larger dehumidifier (around 400–700W)
  • Bread maker (around 450–800W)
  • Small microwave (around 700–900W)
A 700–900W microwave generally fits well here with sensible headroom, depending on startup demand and the wider system design.
