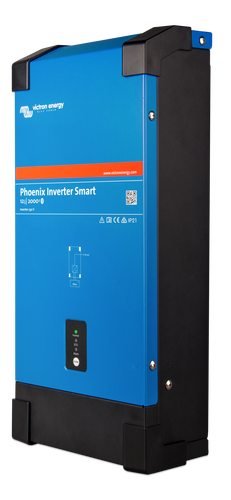

Callidus Trade: A Victron Energy Pure Sine Wave Smart Phoenix Inverter, model PIN122201000, which is a 12V to 2000VA power inverter with a slimline blue and black design featuring various protective features and LED fault diagnosis.

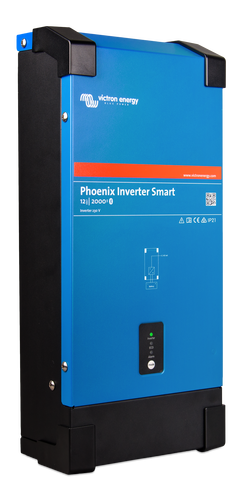

Callidus Trade: A Victron Energy Pure Sine Wave Smart Phoenix Inverter, model PIN122201000, side view.
Callidus Trade: A Victron Energy Pure Sine Wave Smart Phoenix Inverter, model PIN122201000, side view.

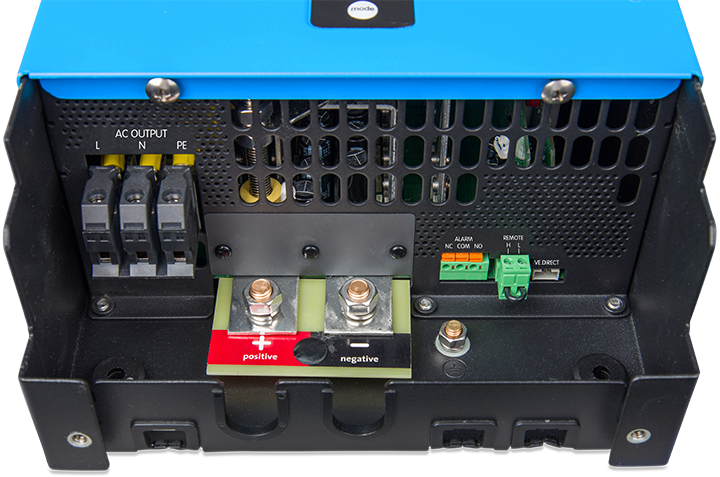

Callidus Trade: A Victron Energy Pure Sine Wave Smart Phoenix Inverter, model PIN122201000,connector detail.
Fast Delivery
Expert Support

Victron 2000VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter

The Victron Smart Phoenix Inverter 12/2000 is a pure sine wave inverter with built-in Bluetooth and full configurability, ideal for off-grid, marine and mobile power systems.

Max constant power 2000VA. Pure sine wave inverter. For 12V systems. 12V DC Power to 230V AC Power. Monitor the status of your system remotely via Bluetooth.
£948.00 £459.50 SAVE £488.50
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN122201000
IN STOCK
Receive between -
Product Details

Victron Energy Pure Sine Wave Smart Phoenix Inverter 12/2000 – PIN122201000

Powerful Off-Grid Performance:

The Victron Energy Pure Sine Wave Smart Phoenix Inverter 12/2000 converts 12V DC power from your leisure batteries into a continuous 230V AC power supply, providing up to 2000VA for off-grid applications like campervans, boats, and tiny houses.


Smart Connectivity for Monitoring:

Equipped with built-in Bluetooth and smart connectivity, the 2000VA inverter allows you to monitor its performance and settings through the Victron Connect app. Enjoy real-time insights, programmable alarms, and cut-offs, ensuring efficient and secure operation.


Versatile Use Cases:

Ideal for off-grid electrical systems in campervans, motorhomes, RVs, boats, and tiny houses, the 2000VA Phoenix inverter is suitable for powering mains appliances with a total wattage of 2000VA or less.


Pure Sine Wave Technology:

As a pure sine wave inverter, it precisely reproduces the 230V AC waveform found in household mains sockets. This ensures compatibility with all 230V appliances, offering a reliable power source without the risk of damage or malfunctions.


Proven Reliability and Safety Features:

Victron inverters boast short circuit protection and defence against overheating, providing reliability under various conditions. The inverter includes a range of safety features, such as low battery voltage alarms, cut-offs, and restart levels, ensuring the longevity of your battery system.


High Start-Up Power and ECO Mode:

The inverter supports high start-up power, crucial for devices like power converters, LED lamps, halogen lamps, or electric tools. The ECO mode optimizes power consumption by switching to standby during low loads, contributing to energy efficiency when the inverter is not in active use.


Remote Control Convenience:

Connect a remote on/off switch to the Victron Phoenix inverter for convenient control, allowing you to turn off the inverter from a designated control panel rather than using the on/off switch on the unit itself.



12V Model

Features:

  • Pure sine wave output
  • High start-up power
  • Proven reliability
  • Rugged, slimline design
  • Bluetooth built-in - fully configurable
  • LED fault diagnosis
  • ECO mode
  • Remote On/Off switching
  • Programmable relay for activation on alarm condition
  • Protected against output short circuit
  • Protected against battery voltage low/high
  • Protected against power overload
  • Protected against over-temperature
  • Protected against 230V AC detected on inverter output (e.g. from another AC source)
  • Protected against input voltage ripple too high
  • 5-year manufacturer's warranty

Specifications:

  • Input voltage range: 9.3 - 17.0 VDC
  • Output voltage: 230VAC +/- 2%
  • Continuous AC power at 25ºC: 2000VA
  • Continuous power at 25ºC/40ºC/65ºC: 1600/1450/1000W
  • Peak power: 4000VA
  • Dynamic (load dependent) DC low shut down: Fully configurable
  • Max. efficiency: 92%
  • No-load power consumption: 8W
  • Default zero load power in ECO mode: 0.6W
  • Operating temperature: -40ºC to +65ºC (fan assisted cooling)
  • Stop & start power ECO-mode:  Adjustable
  • DC (battery) cable connection: M8 bolts
  • 230V AC cable connection: Screw terminals
  • Ingress Protection rating: IP21
  • Weight: 14kg
  • Overall dimensions: 485 (L) x 219 (W) x 125 (H) mm
Product Specifications

Technical Specifications

Combined for SKUs: PIN122201000

AC Output Voltage: 230 V

Ac Connection: Screw terminals

Automotive Directive: ECE R10-5

Battery Connection: M8 bolts

Battery Voltage Nominal: 12 V

Bluetooth: Yes

Colour: Blue (RAL 5012) and Black (RAL 9017)

Communication Port: VE.Direct,Bluetooth

Continuous Power (VA, 25°C): 2,000 VA

Continuous Power (W, 25°C): 1,600 W

Continuous Power (W, 40°C): 1,450 W

Continuous Power (W, 65°C): 1,000 W

DC Input Voltage Range: [9.3, 17] V

Depth: 125 mm

Dynamic Low DCShutdown: Yes

Eco Mode Stop Start Power Setting: Adjustable

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Frequency1: 50Hz or 60Hz

Fully Programable: Yes

Height: 485 mm

Material: Steel

Max Efficiency: 92 %

Max Humidity: 95 %

Parallel3phase: Yes

Peak Power Rating: 4,000 W

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote Terminal: Screw terminal two pole

Safety: EN-IEC 60335-1

Weight: 13 kg

Width: 219 mm

Zero Load Power: 8 W

Zero Load Power Eco Mode: 0.6 W

Source: Victron
