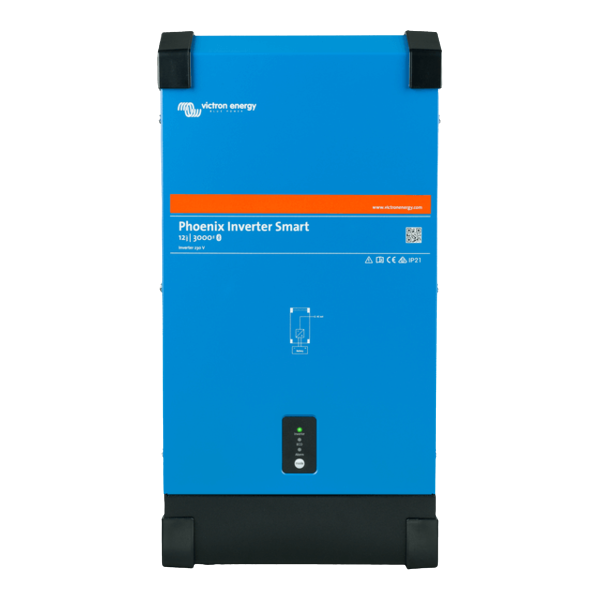

Victron 3000VA 12V Smart Pure Sine Wave Phoenix Inverter PIN122300000 front view
Side view of Victron 3000VA 12V Phoenix Inverter showing ventilation and ports
Terminals of Victron 3000VA 12V Smart Phoenix Inverter for DC input and AC output connections
Callidus Trade: A blue Victron Energy Phoenix Inverter Smart, displaying the brand logo and product information. Shown with a smart phone running a monitoring app.
Callidus Trade: A blue Victron Energy Phoenix Inverter Smart. Infographic showing suggested uses, etc.
Fast Delivery
Expert Support

Victron 3000VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter

Reliable 3000VA 12V inverter with pure sine wave output and smart connectivity for off-grid applications.

Pure Sine Wave Output: Ensures safe operation of sensitive electronics. High Surge Capacity: Handles appliances with high start-up currents. Remote Monitoring: Built-in Bluetooth for easy configuration via VictronConnect app. Protective Features: Includes programmable alarms and automatic shutdown. Compact Design: Easy to install in various off-grid setups. Free Tracked Shipping!
£620.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN122300000
IN STOCK
Receive between -
Product Details

The Victron 3000VA Inverter 12V – Smart Pure Sine Wave Phoenix Inverter (SKU: PIN122300000) is a high-performance power solution designed for off-grid applications, including campervans, boats, and tiny homes. This inverter converts 12V DC power from your leisure batteries into 230V AC power, enabling you to run domestic appliances such as laptops, blenders, and toasters, provided their combined wattage does not exceed 3000VA for a prolonged period.

Key features include:

  • Pure Sine Wave Output: Delivers high-quality, stable voltage and frequency, ensuring compatibility with sensitive electronics and appliances.

  • High Peak Power Capacity: Capable of handling high surge loads, making it suitable for appliances with high start-up currents.

  • Built-in Bluetooth Connectivity: Allows for remote monitoring and configuration via the VictronConnect app, providing real-time insights into inverter performance.

  • Programmable Alarms and Cut-Offs: Features low and high voltage alarms, as well as automatic shutdown to protect your battery and inverter from damage.

  • Compact and Robust Design: With dimensions of 533 x 285 x 150 mm and a weight of 18 kg, this inverter is designed for easy installation in various setups.

Ideal for those seeking a reliable and efficient power solution in off-grid environments, the Victron 3000VA Inverter ensures that your essential appliances remain powered, enhancing your comfort and convenience.

Product Specifications

Technical Specifications

Combined for SKUs: PIN122300000

AC Output Voltage: 230 V

Ac Connection: Screw terminals

Automotive Directive: ECE R10-5

Battery Connection: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 12 V

Bluetooth: Yes

Colour: Blue (RAL 5012) and Black (RAL 9017)

Communication Port: Bluetooth,VE.Direct

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

DC Input Voltage Range: [9.3, 17] V

Depth: 150 mm

Dynamic Low DCShutdown: Yes

Eco Mode Stop Start Power Setting: Adjustable

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Frequency1: 50Hz or 60Hz

Fully Programable: Yes

Height: 533 mm

Material: Steel

Max Efficiency: 93 %

Max Humidity: 95 %

Parallel3phase: Yes

Peak Power Rating: 6,000 W

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote Terminal: Screw terminal two pole

Safety: EN-IEC 60335-1

Weight: 19 kg

Width: 285 mm

Zero Load Power: 12 W

Zero Load Power Eco Mode: 1.5 W

Source: Victron
