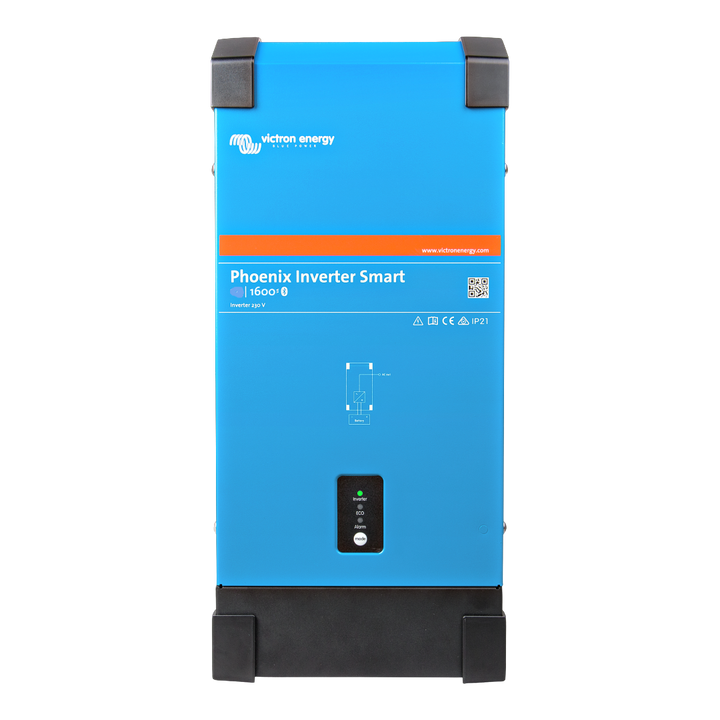

Victron Phoenix Inverter 24/1600 230V Smart

Get stable 230V AC power anywhere with the Victron Phoenix 24/1600 Smart inverter, featuring pure sine wave output, Bluetooth monitoring, and robust design for off-grid and mobile use.

Pure Sine Wave Output for Sensitive Electronics Built-in Bluetooth for Easy Monitoring and Configuration VE.Direct Communication Port for System Integration Compact and Durable Metal Enclosure Suitable for 24V DC Systems Dimensions: 485 x 219 x 125mm Weight: 12.4kg
£838.80 £643.20 SAVE £195.60
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN242161000
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

The Victron Phoenix Inverter 24/1600 230V Smart transforms your 24V battery power into clean, reliable 230V AC electricity, making it perfect for off-grid homes, boats, caravans, and RVs. With a continuous output of 1600VA, it powers sensitive electronics safely, including laptops, TVs, and small appliances.

Equipped with a pure sine wave output, this inverter ensures your devices operate efficiently without risk of damage. The built-in Bluetooth and VE.Direct connectivity allow you to monitor and configure the inverter easily via the VictronConnect app.

Compact and robust, the Phoenix 24/1600 Smart fits easily in tight spaces and is built to withstand demanding environments. It offers peace of mind by delivering uninterrupted, high-quality power wherever mains electricity is unavailable, making it an essential component for any off-grid or mobile power system.

Product Specifications

Electrical Specifications

  • Nominal Battery Voltage: 24 V
  • Cont. Output Power at 25°C: 1600 VA / 1300 W
  • Cont. Output Power at 40°C: 1200 W
  • Cont. Output Power at 65°C: 800 W
  • Peak Power: 3000 W
  • Output AC Voltage: 230 VAC (Adjustable 210 – 245 V)
  • Output Frequency: 50 Hz or 60 Hz (Adjustable)
  • Maximum Efficiency: 94%
  • Zero Load Power: 9 W
  • Zero Load Power in ECO Mode: 1.3 W

Features & Connectivity

  • Bluetooth Built-in: Wireless monitoring and system integration via the VictronConnect app.
  • VE.Direct Port: Allows for a wired connection to a computer or GX device for configuration and monitoring.
  • ECO Mode: Automatically switches the unit to standby when the load decreases below a preset value, searching for a load every 2.5 seconds (adjustable).
  • Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
  • Remote On/Off: Features a two-pole connector for easy remote switch integration.
  • Monitoring Capabilities: Real-time tracking of input/output voltage, load percentage, and active alarms.

Integrated Protections

  • Output short circuit
  • Overload
  • Battery voltage too high / too low
  • Temperature too high
  • 230 VAC on inverter output
  • Input voltage ripple too high

Mechanical Specifications

  • Dimensions (H x W x D): 485 x 219 x 125 mm
  • Weight: 12 kg
  • Material & Colour: Steel chassis (Blue RAL 5012 and Black RAL 9017)
  • Protection Category: IP21
  • Battery Connection: M8 bolts
  • 230V AC Connection: Screw terminals
  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
  • Humidity: Max 95% (Non-condensing)

Standards & Compliance

  • Safety: EN 60335-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
  • Automotive Directive: ECE R10-5

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 24/1600 230V Smart - Manual
Victron Phoenix Inverter 24/1600 230V Smart - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1600VA inverter with an estimated continuous output of ~1300W. A comfortable all-rounder for serious motorhome and off-grid base loads.

Inverter size 1600VA
Continuous output ~1300W

Typical appliances you can run

  • Induction hob on a medium setting (around 1000–1300W)
  • Larger inverter air-con (around 900–1200W running)
  • Vacuum cleaner (modern, around 700–900W)
  • Heated clothes airer (around 300W)
  • Dishwasher, heat-pump type (around 900W)
  • Larger dehumidifier (around 400–700W)
  • Bread maker (around 450–800W)
  • Small microwave (around 700–900W)
A 700–900W microwave generally fits well here with sensible headroom, depending on startup demand and the wider system design.
