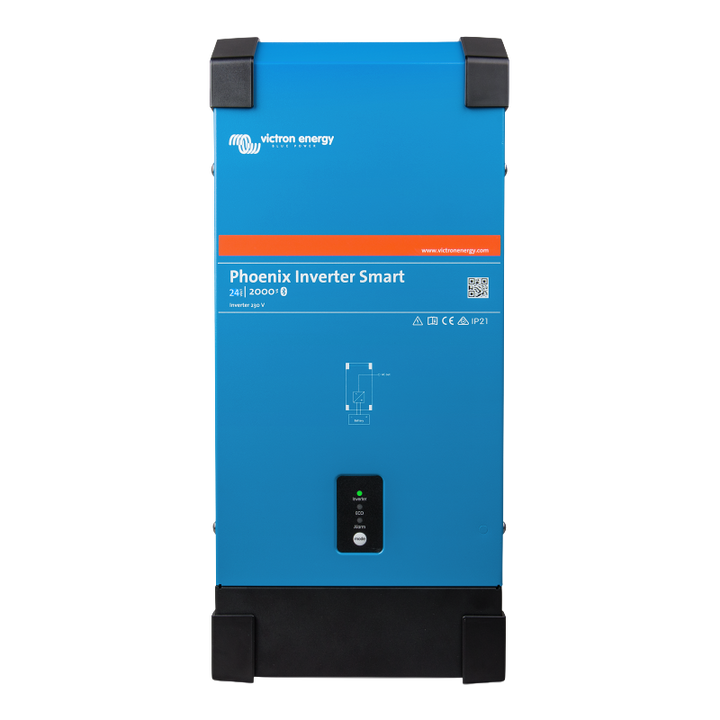

Victron Phoenix Inverter 24/2000 230V Smart

24V to 230V pure sine-wave inverter (2000 VA) with Bluetooth, dynamic cut-off and built-in protection for modern energy systems.

Continuous Output: 2000 VA at 25 °C Input Voltage Range: ~18.6 V to 34 V Smart Connectivity: Bluetooth configuration and monitoring via VictronConnect Dynamic Cut-off & Protections: Adjustable low voltage alarm, cut-off and restart levels Pure Sine-Wave Output: 230 V AC ±2 % Dimensions: 485 x 219 x 125mm Weight: 13.2kg
£878.40 £651.39 SAVE £227.01
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN242200000
AVAILABLE IN 7-10 DAYS

People Also Bought:

Product Details

The Victron Phoenix Inverter 24/2000 230V Smart is a robust and efficient 24V DC to 230V AC pure sine-wave inverter with built-in smart features. It delivers up to 2000 VA of continuous output (at 25 °C) and supports a wide input voltage range (approximately 18.6 V to 34 V) to suit battery systems.

Integrated Bluetooth functionality allows full configuration and real-time monitoring via the VictronConnect app.

The inverter includes essential protection and dynamic voltage cut-off capabilities to protect both the battery and the load.

Ideal for off-grid, marine or mobile systems, it offers reliable AC power with smart control.

Product Specifications

Performance & Electrical Specifications

  • Continuous Power at 25°C: 2000 VA
  • Continuous Power at 25°C: 1600 W
  • Continuous Power at 40°C: 1450 W
  • Continuous Power at 65°C: 1000 W
  • Peak Power: 4000 W
  • Output AC Voltage: 230 VAC ± 2%
  • Frequency: 50 Hz or 60 Hz ± 0.1%
  • Nominal Input Voltage: 24 VDC
  • Input Voltage Range: 18.6 – 34 V
  • Maximum Efficiency: 94%
  • Zero-load Power: 9 W
  • Zero-load Power in ECO Mode: 1.3 W

Configurable & Smart Features

  • Bluetooth Built-in: Use a tablet or smartphone to configure settings such as low battery alarms, cut-off levels, output voltage (210–245V), frequency, and ECO mode parameters.
  • VE.Direct Communication Port: Allows for wired connection to a computer or GX device for advanced system monitoring and integration.
  • ECO Mode: Automatically switches the inverter to standby when the load drops below a preset level. In standby, it pulses every 2.5 seconds (adjustable) to check for a load.
  • Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
  • Remote On/Off: Dedicated two-pole connector for easy remote control integration via a switch or relay contact.
  • High Start-up Power: Specifically designed to start difficult loads such as electric tools, halogen lamps, or power converters for LED lighting.

Protection & Environmental

  • Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple (too high).
  • Operating Temperature Range: -40 to +65°C (fan-assisted cooling).
  • Humidity: Maximum 95% (non-condensing).

Mechanical Specifications

  • Enclosure Material: Steel
  • Enclosure Color: Blue RAL 5012 and Black RAL 9017
  • Protection Category: IP21
  • Battery Connection: M8 bolts
  • 230 VAC Connection: Screw terminals
  • Dimensions (h x w x d): 485 x 219 x 125 mm
  • Unit Weight: 13 kg

Standards & Compliance

  • Safety: EN 60335-1
  • Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
  • Automotive Directive: ECE R10-5

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 24/2000 230V Smart - Manual
Victron Phoenix Inverter 24/2000 230V Smart - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 2000VA inverter with an estimated continuous output of ~1600W. A high-capability option for kitchens, appliances and multi-load off-grid setups.

Inverter size 2000VA
Continuous output ~1600W

Typical appliances you can run

  • Most microwaves (around 900–1100W)
  • Induction hob, full single zone (around 1400–1800W)
  • Air fryer (most models, around 1200–1800W)
  • Standard vacuum cleaner (around 1000–1400W)
  • Portable heat pump AC (around 1000–1400W running)
  • Hair dryer on a low setting (around 1000W)
  • Fridge-freezer + microwave simultaneously
  • Washing machine on a cold wash (around 400–600W)

Looking for something Bespoke?

As a leading UK Victron Distributor and the Official UK Pytes Distributor our in house engineering team can deliver bespoke solutions. We handle design, specification, and system optimisation to meet your specific needs, regardless of size, weight, environmental, or regulatory constraints. From DIY projects up to large scale commercial projects our team can do it all.

Talk To An Engineer
