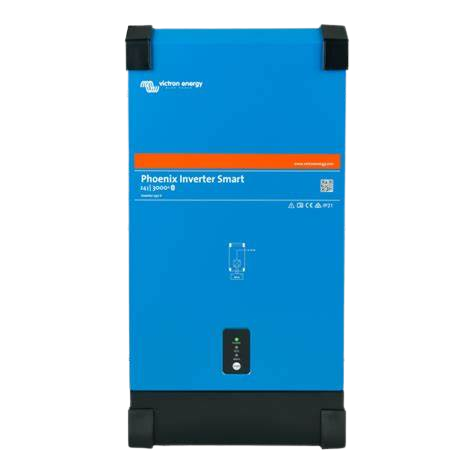

Victron Phoenix Inverter 24/3000 230V Smart

Performance Specifications

• Nominal Battery Voltage: 24 V
• Maximum Apparent Power: 3000 VA
• Peak Power: 6000 W
• Continuous Output Power at 65°C: 1700 W
• Maximum Efficiency: 94%
• Zero Load Power: 13 W
• Zero Load Power in ECO Mode: 1.9 W
• Output AC Voltage: 210 – 245 V (Adjustable)
• Output Frequency: 50 Hz or 60 Hz (Adjustable)

Smart Features & Connectivity

• Integrated Bluetooth: Built-in wireless communication for remote monitoring, system integration, and configuration via the VictronConnect app.
• VE.Direct Communication Port: Allows for a wired connection to a computer (via VE.Direct to USB interface) or GX devices (Cerbo GX, Ekrano GX) for advanced system control.
• ECO Mode: Automatically switches the inverter to standby when the load drops below a preset value, searching for a load every 2.5 seconds (adjustable) to conserve battery energy.
• Programmable Relay: Can be configured for a general alarm, DC under-voltage, or generator start/stop functions.
• Remote On-Off: Features a two-pole connector for easy integration with a remote switch or relay contact.

Protection & Reliability

• Proven Topology: Full bridge plus toroidal transformer design for long-term durability and thermal stability.
• Short Circuit Proof: Integrated protection against output short circuits.
• Overload Protection: Safely manages loads exceeding continuous ratings.
• Advanced Monitoring: Built-in sensors for battery voltage (high/low), temperature (high), and input voltage ripple.
• Load-Dependent Cut-off: Features a dynamic DC low-voltage shut-down level that adjusts based on the load.
• LED Diagnosis: On-board LED indicators for immediate status and alarm identification.

Mechanical Specifications

• Dimensions (H x W x D): 485 x 285 x 150 mm
• Weight: 19 kg
• Material & Colour: Steel chassis in Blue (RAL 5012) and Black (RAL 9017).
• Protection Category: IP21
• Battery Connection: 2+2 M8 bolts
• 230V AC Connection: Screw terminals
• Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
• Humidity: Max 95% (Non-condensing)

Standards & Compliance

• Safety: EN 60335-1
• Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
• Automotive Directive: ECE R10-5
