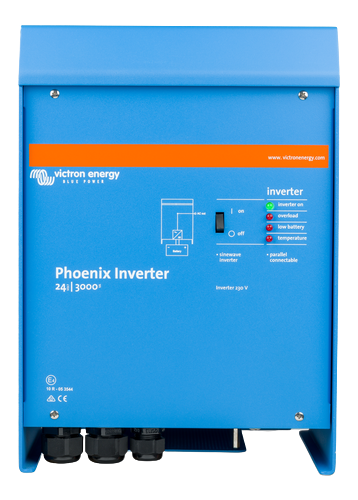

Victron Phoenix Inverter 24/3000 230V VE.Bus

The Victron Phoenix Inverter 24/3000 230V VE.Bus is a robust inverter designed to convert 24V DC to 230V AC. With a continuous output of 3000VA, it delivers pure sine wave power suitable for demanding applications. The VE.Bus connectivity allows for seamless integration into larger systems, making it ideal for off-grid and mobile power solutions.

High Power Output: Supports loads up to 3000VA (2400W). Seamless Integration: VE.Bus compatibility for system expansion. Compact and Robust: Designed for durability in various environments. Versatile Applications: Ideal for off-grid, marine, and mobile setups. Energy Efficient: Minimises energy loss for optimal performance. Dimensions: 362 x 258 x 218 mm Weight: 18.5 kg
£1,440.00 £1,114.99 SAVE £325.01
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN243020000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Phoenix Inverter 24/3000 230V VE.Bus is engineered for high-performance power conversion in 24V DC systems. Delivering a continuous output of 3000VA (approximately 2400W), this inverter provides pure sine wave AC power, ensuring compatibility with sensitive electronics and appliances.

Key features include:

  • Pure Sine Wave Output: Delivers clean and stable power for sensitive devices.
  • VE.Bus Connectivity: Facilitates integration into larger systems for increased capacity.
  • Compact Design: Space-saving dimensions for versatile installation options.
  • Wide Application Range: Suitable for off-grid, marine, and mobile power systems.
  • High Efficiency: Optimised for minimal energy loss and maximum performance.

Dimensions:

  • Length: 362 mm
  • Width: 258 mm
  • Height: 218 mm
  • Weight: 18.5 kg
Product Specifications

Inverter Specifications

  • Input Voltage Range: 19 – 33 VDC
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240 V)
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Cont. Output Power at 25°C: 3000 VA
  • Cont. Output Power at 25°C: 2400 W
  • Cont. Output Power at 40°C: 2200 W
  • Cont. Output Power at 65°C: 1700 W
  • Peak Power: 6000 W
  • Maximum Efficiency: 94%
  • Zero Load Power: 20 W
  • Zero Load Power in AES Mode: 15 W
  • Zero Load Power in Search Mode: 10 W

Features & Connectivity

  • Parallel & 3-Phase Operation: Up to 6 units can operate in parallel; 3-phase configuration is also supported.
  • Communication Port: VE.Bus for parallel/three-phase operation, remote monitoring, and system integration.
  • Programmable Relay: Yes (Can be set for general alarm, DC under voltage, or generator start/stop).
  • Remote On-Off: Yes
  • Customization: Parameters such as output voltage, frequency, and voltage settings can be customized via VictronConnect or VEConfigure software (requires MK3-USB interface).

Protection

  • Output short circuit
  • Overload
  • Battery voltage too high / too low
  • Temperature too high
  • 230 VAC on inverter output
  • Input voltage ripple too high

Mechanical Specifications

  • Dimensions (H x W x D): 362 x 258 x 218 mm
  • Weight: 18 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: M8 Bolts
  • 230V AC Connection: Screw terminals

Environmental Standards

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
  • Humidity (Non-condensing): Max 95%
  • Safety Standard: EN 60335-1
  • EMC Standards: EN 55014-1 / EN 55014-2

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 24/3000 230V VE.Bus - Manual
Victron Phoenix Inverter 24/3000 230V VE.Bus - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 3000VA inverter with an estimated continuous output of ~2400W. A powerful home and off-grid tier that supports most mainstream household appliances.

Inverter size 3000VA
Continuous output ~2400W

Typical appliances you can run

  • Near limit: kettle (around 2500–3000W)
  • Hair dryer on full heat (around 1800–2200W)
  • Toaster (around 800–1800W)
  • Iron (around 1000–2400W)
  • Washing machine on hot wash (up to around 2000W)
  • Dishwasher with standard heating element (around 1800–2400W)
  • Fan heater / convector heater (around 1000–2000W)
  • Most air fryers + fridge/freezer simultaneously
