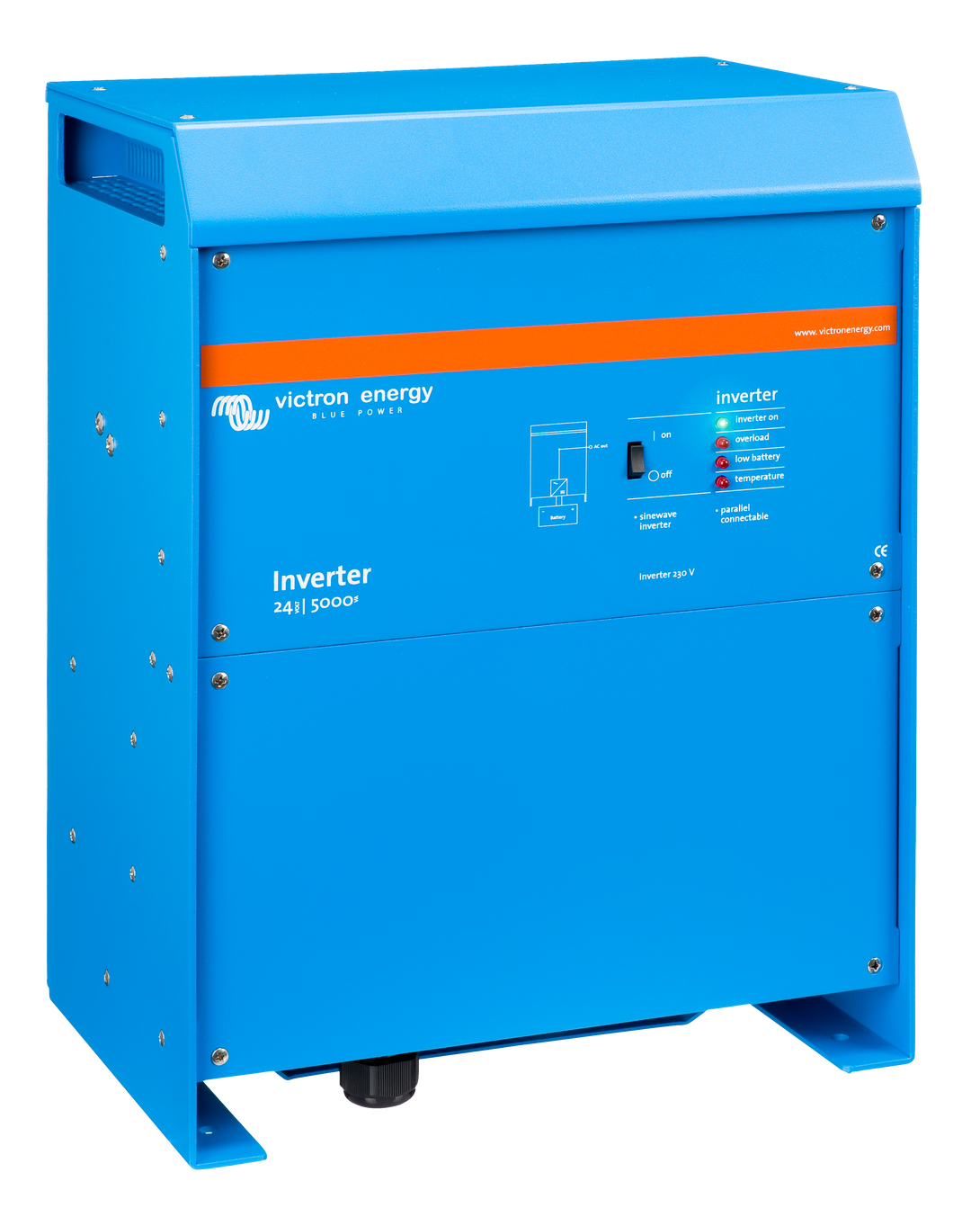

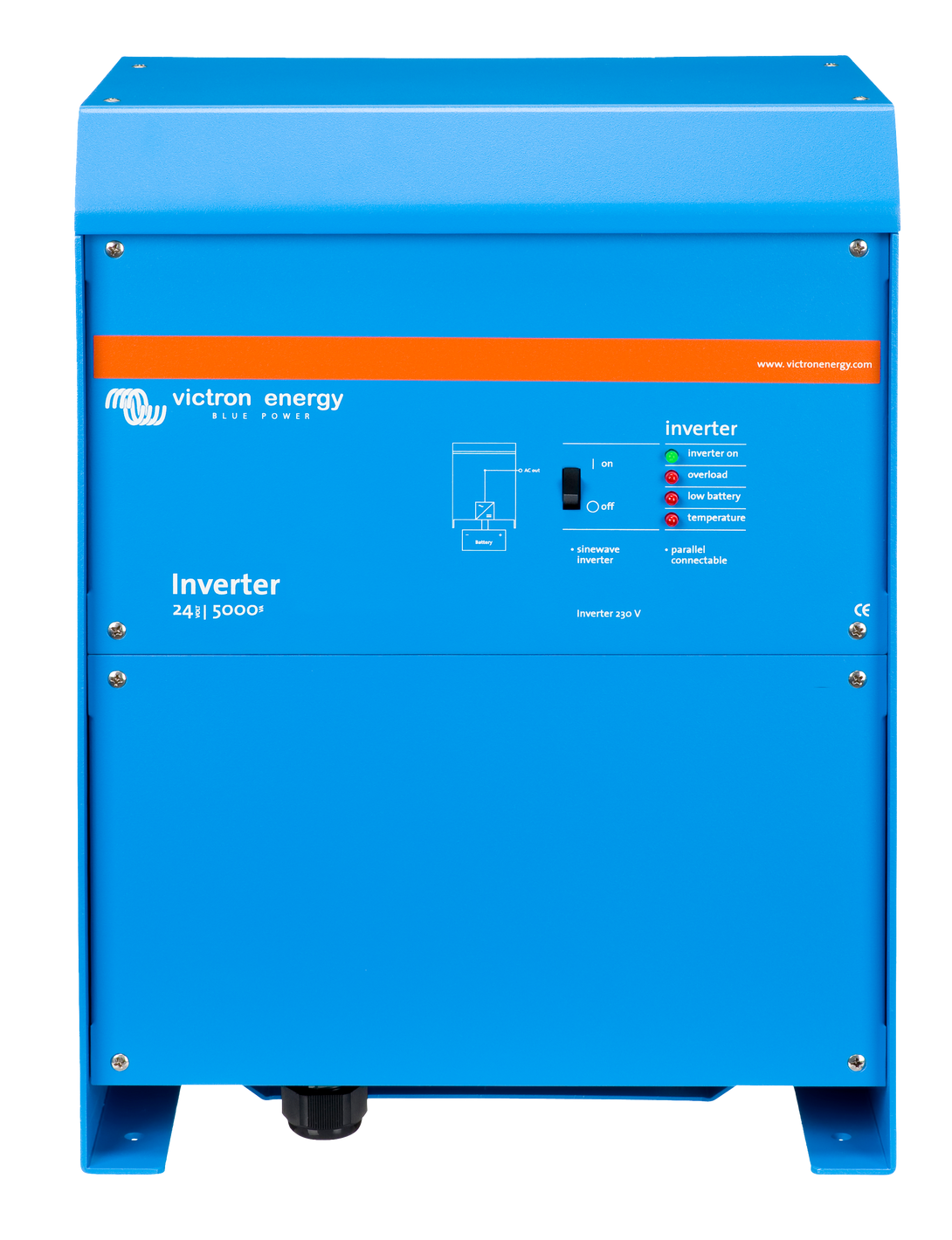

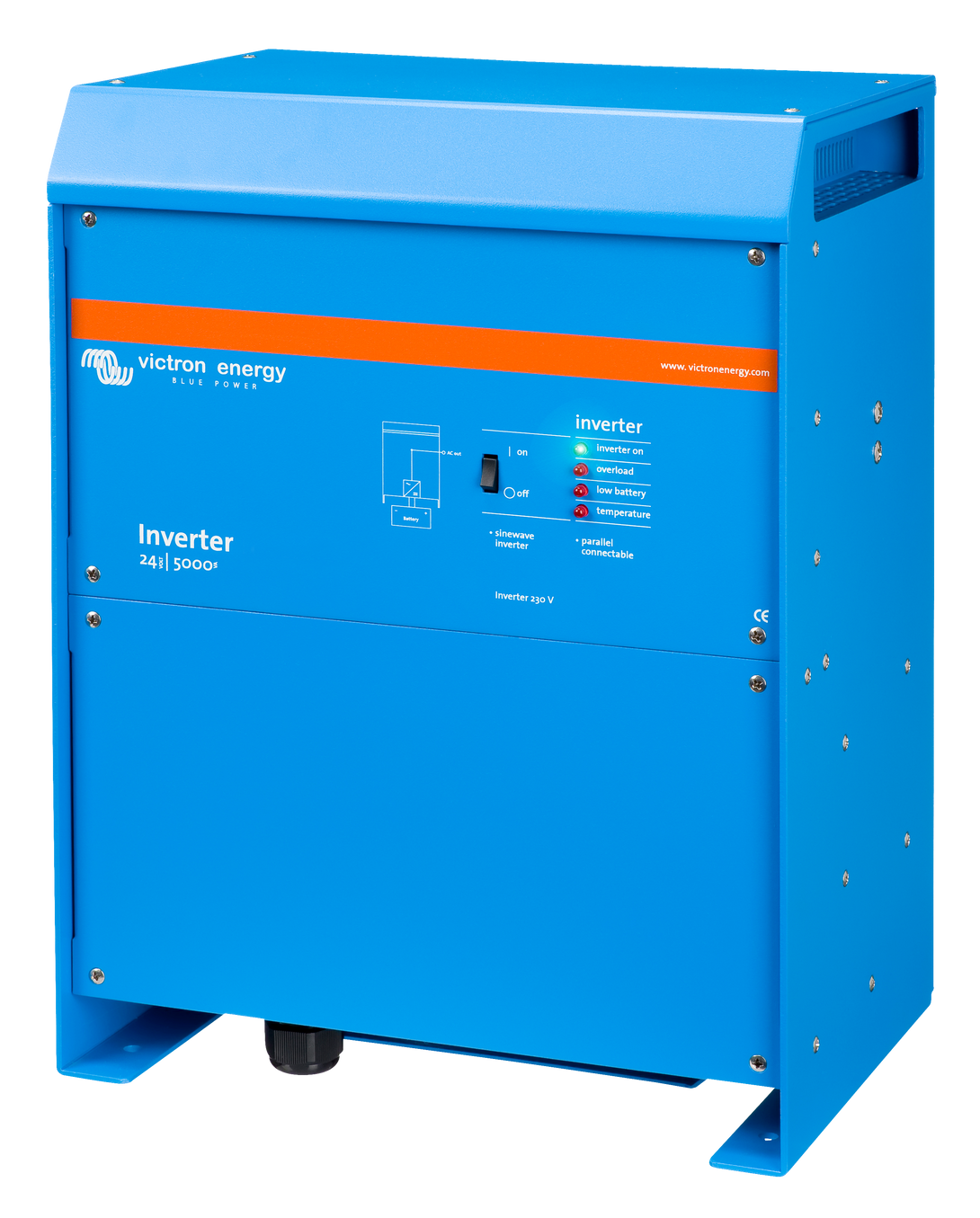

Victron Phoenix Inverter 24/5000 230V VE.Bus

The Victron Phoenix Inverter 24/5000 230V VE.Bus is a high-performance 5000W inverter designed for 24V systems. It provides pure sine wave output, ensuring compatibility with sensitive electronics. With VE.Bus integration, it offers seamless communication with other Victron devices, enabling advanced system configurations. Ideal for off-grid, marine, and backup power applications.

Pure Sine Wave Output: Delivers stable and clean power, suitable for sensitive electronics. VE.Bus Integration: Allows for parallel and 3-phase configurations, enhancing system scalability. High Surge Capacity: Capable of handling high inrush currents, ideal for appliances with motors. Compact Design: Space-saving form factor without compromising on performance. Robust Build Quality: Designed for demanding environments, ensuring longevity and reliability. Dimensions: 444 x 328 x 240mm Weight: 28kg
£2,265.60 £1,982.40 SAVE £283.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN245020000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Phoenix Inverter 24/5000 230V VE.Bus is engineered to provide high-quality, reliable power for 24V DC systems. Its pure sine wave output ensures that even the most sensitive devices operate without interference or damage. The integration with VE.Bus allows for flexible system configurations, including parallel and 3-phase setups, making it versatile for various applications.

Whether you're powering a remote cabin, a marine vessel, or require a backup power solution, this inverter offers the performance and reliability you need. Its compact design makes installation straightforward, and its robust construction ensures it can withstand the rigours of off-grid and marine environments.

Product Specifications

Inverter Specifications

  • Input Voltage Range: 19 – 33 VDC
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240 V)
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Cont. Output Power at 25°C: 5000 VA
  • Cont. Output Power at 25°C: 4000 W
  • Cont. Output Power at 40°C: 3700 W
  • Cont. Output Power at 65°C: 3000 W
  • Peak Power: 10000 W
  • Maximum Efficiency: 94%
  • Zero Load Power: 35 W
  • Zero Load Power in AES Mode: 30 W
  • Zero Load Power in Search Mode: 15 W

Features & Connectivity

  • Parallel & 3-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output (e.g., six 24/5000 units provide 24 kW / 30 kVA). 3-phase configuration is also supported.
  • Communication Port: VE.Bus port for parallel/three-phase operation, remote monitoring, and system integration.
  • Programmable Relay: Yes (Can be set for general alarm, DC under voltage, or generator start/stop function).
  • Remote On-Off: Yes
  • Customization: Parameters such as output voltage, frequency, and voltage settings can be customized via VictronConnect or VEConfigure software (requires MK3-USB interface).
  • System Integration: Can be connected to a GX device (e.g., Cerbo GX) for comprehensive monitoring and control.

Protection Features

  • Output short circuit
  • Overload
  • Battery voltage too high
  • Battery voltage too low
  • Temperature too high
  • 230 VAC on inverter output
  • Input voltage ripple too high

Mechanical Specifications

  • Dimensions (H x W x D): 444 x 328 x 240 mm
  • Weight: 30 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: M8 bolts (2+2)
  • 230V AC Connection: Screw terminals

Environmental Standards

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
  • Humidity (Non-condensing): Max 95%
  • Safety Standard: EN 60335-1
  • EMC Standards: EN 55014-1 / EN 55014-2

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 24/5000 230V VE.Bus - Manual
Victron Phoenix Inverter 24/5000 230V VE.Bus - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 5000VA inverter with an estimated continuous output of ~4000W. Strong whole-kitchen and heavy-appliance performance with usable safety margin.

Inverter size 5000VA
Continuous output ~4000W

Typical appliances you can run

  • Kettle + background loads with safe margin
  • Tumble dryer (around 2000–4000W)
  • Single electric oven (around 2000–3500W)
  • Large air fryer or multi-zone induction hob
  • Hot tub / garden spa during heating phase
  • EV charger, slow 3.6kW Type 2
  • Kettle + microwave simultaneously
  • Whole kitchen background load (fridge + lights + misc)
