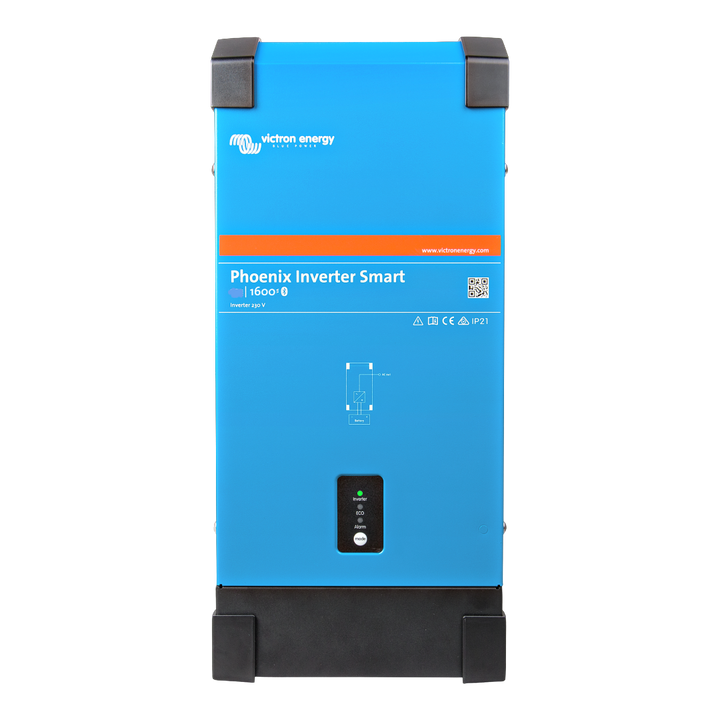

Victron Phoenix Inverter 48/1600 230V Smart

The Victron Phoenix Inverter 48/1600 230V Smart is a compact 1.6 kVA inverter delivering pure sine wave output. It features built-in Bluetooth for easy setup and monitoring via the VictronConnect app.

Pure Sine Wave Output Built-in Bluetooth Connectivity High Surge Capacity Compact and Lightweight Design Energy Efficient Operation Dimensions: 485 x 219 x 125mm Weight: 12kg
£838.80 £671.04 SAVE £167.76
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN482160000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Phoenix Inverter 48/1600 230V Smart (SKU: PIN482160000) is designed to provide reliable and efficient power conversion for 48V DC systems. It delivers a continuous output of 1.6 kVA (approximately 1.28 kW) and is capable of handling high surge loads, making it suitable for various applications, including off-grid solar systems, marine, and mobile setups.

Key Features:

  • Pure Sine Wave Output: Ensures compatibility with sensitive electronic devices.
  • Built-in Bluetooth: Allows for remote monitoring and configuration using the VictronConnect app.
  • High Surge Capacity: Can handle short-term power surges, ideal for appliances with high start-up currents.
  • Compact Design: Facilitates easy installation in space-constrained environments.
  • Energy Efficient: Operates with low idle consumption, enhancing overall system efficiency.
Product Specifications

Performance & Electrical Specifications

  • Continuous Power at 25°C: 1600 VA
  • Continuous Power at 25°C: 1300 W
  • Continuous Power at 40°C: 1200 W
  • Continuous Power at 65°C: 800 W
  • Peak Power: 3000 W
  • Output AC Voltage: 230 VAC ± 2% (Adjustable 210 – 245 V)
  • Frequency: 50 Hz or 60 Hz ± 0.1%
  • Nominal Input Voltage: 48 VDC
  • Input Voltage Range: 37.2 – 68 V
  • Maximum Efficiency: 94%
  • Zero-load Power: 11 W
  • Zero-load Power in ECO Mode: 2.1 W

Smart Features & Configuration

  • Bluetooth Built-in: Fully configurable using a tablet or smartphone via the VictronConnect app.
  • VE.Direct Communication Port: Allows connection to a computer (via VE.Direct to USB interface) or GX device (such as Cerbo GX) for advanced system monitoring and integration.
  • ECO Mode: Automatically switches the inverter to standby when the load drops below a preset value. While in standby, the inverter pulses every 2.5 seconds (adjustable) to check for a load.
  • Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
  • Remote On/Off: Features a dedicated two-pole connector for remote switching via a switch or relay contact.
  • Monitoring Capabilities: Real-time tracking of input and output voltage, load percentage, and system alarms.

Protection & Environmental

  • Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple (too high).
  • Operating Temperature Range: -40 to +65°C (fan-assisted cooling).
  • Humidity: Maximum 95% (non-condensing).

Mechanical Specifications

  • Enclosure Material: Steel (Blue RAL 5012 and Black RAL 9017)
  • Protection Category: IP21
  • Battery Connection: M8 bolts
  • 230 VAC Connection: Screw terminals
  • Dimensions (h x w x d): 485 x 219 x 125 mm
  • Unit Weight: 12 kg

Standards & Compliance

  • Safety: EN 60335-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
  • Automotive Directive: ECE R10-5

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 48/1600 230V Smart - Manual
Victron Phoenix Inverter 48/1600 230V Smart - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1600VA inverter with an estimated continuous output of ~1300W. A comfortable all-rounder for serious motorhome and off-grid base loads.

Inverter size 1600VA
Continuous output ~1300W

Typical appliances you can run

  • Induction hob on a medium setting (around 1000–1300W)
  • Larger inverter air-con (around 900–1200W running)
  • Vacuum cleaner (modern, around 700–900W)
  • Heated clothes airer (around 300W)
  • Dishwasher, heat-pump type (around 900W)
  • Larger dehumidifier (around 400–700W)
  • Bread maker (around 450–800W)
  • Small microwave (around 700–900W)
A 700–900W microwave generally fits well here with sensible headroom, depending on startup demand and the wider system design.
