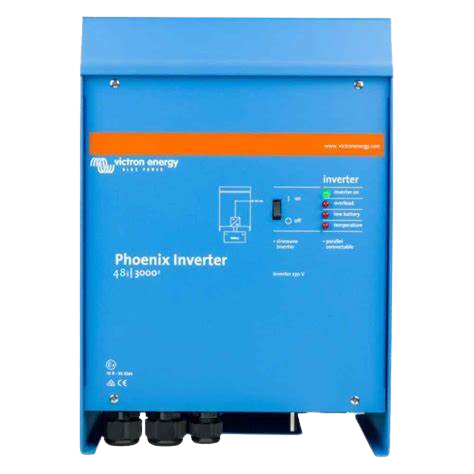

Victron Phoenix Inverter 48/3000 230V VE.Bus

The Victron Phoenix Inverter 48/3000 230V VE.Bus is a high-performance 3000VA inverter designed for 48V systems. It delivers pure sine wave output, ensuring stable and reliable power for sensitive equipment. With VE.Bus communication, it supports parallel and three-phase configurations, making it versatile for various applications including off-grid, marine, and backup power systems.

3000VA Power Output: Suitable for high-demand applications. Pure Sine Wave Output: Ensures stable power for sensitive devices. VE.Bus Communication: Enables parallel and three-phase operation. High Surge Capacity: Handles demanding start-up loads with ease. Compact and Robust Design: Built for durability in challenging environments. Dimensions: 362 x 258 x 218mm Weight: 18kg
£1,240.80 £1,085.70 SAVE £155.10
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN483020000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Phoenix Inverter 48/3000 230V VE.Bus is engineered to provide reliable and efficient power for demanding applications. With a continuous power output of 3000VA, it is capable of handling high loads, making it ideal for off-grid setups, marine vessels, and backup power systems.

Utilising advanced hybrid high-frequency (HF) technology, this inverter offers a pure sine wave output, ensuring that sensitive equipment operates without interference. The VE.Bus communication port allows for seamless integration into larger systems, supporting both parallel and three-phase configurations for increased power capacity.

Designed with durability in mind, the Phoenix Inverter features a compact and robust enclosure, making it suitable for installation in various environments. Its high surge capacity ensures that it can handle the initial power demands of devices with high inrush currents, such as refrigeration compressors and power tools.

Whether you're looking to power a remote cabin, a boat, or need a reliable backup solution, the Victron Phoenix Inverter 48/3000 230V VE.Bus offers the performance and flexibility you need.

Product Specifications

Inverter Specifications

  • Input Voltage Range: 38 – 66 VDC
  • Output Voltage: 230 VAC ± 2% (Adjustable to 240 V)
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Cont. Output Power at 25°C: 3000 VA
  • Cont. Output Power at 25°C: 2400 W
  • Cont. Output Power at 40°C: 2200 W
  • Cont. Output Power at 65°C: 1700 W
  • Peak Power: 6000 W
  • Maximum Efficiency: 95%
  • Zero Load Power: 25 W
  • Zero Load Power in AES Mode: 20 W
  • Zero Load Power in Search Mode: 12 W

Features & Connectivity

  • Parallel & 3-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output. Operation in 3-phase configuration is also supported.
  • Communication Port: VE.Bus port for parallel/three-phase operation, remote monitoring, and system integration.
  • Programmable Relay: Yes (Can be set for general alarm, DC under voltage, or generator start/stop function).
  • Remote On-Off: Yes
  • Customization: Parameters such as output voltage, frequency, and voltage settings can be customized via VictronConnect or VEConfigure software (requires MK3-USB interface).
  • System Integration: Can be connected to a GX device (e.g., Cerbo GX) for comprehensive monitoring and control.

Protection Features

  • Output short circuit
  • Overload
  • Battery voltage too high
  • Battery voltage too low
  • Temperature too high
  • 230 VAC on inverter output
  • Input voltage ripple too high

Mechanical Specifications

  • Dimensions (H x W x D): 362 x 258 x 218 mm
  • Weight: 18 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: M8 Bolts
  • 230V AC Connection: Screw terminals

Environmental Standards

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
  • Humidity (Non-condensing): Max 95%
  • Safety Standard: EN 60335-1
  • EMC Standards: EN 55014-1 / EN 55014-2

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter 48/3000 230V VE.Bus - Manual
Victron Phoenix Inverter 48/3000 230V VE.Bus - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 3000VA inverter with an estimated continuous output of ~2400W. A powerful home and off-grid tier that supports most mainstream household appliances.

Inverter size 3000VA
Continuous output ~2400W

Typical appliances you can run

  • Near limit: kettle (around 2500–3000W)
  • Hair dryer on full heat (around 1800–2200W)
  • Toaster (around 800–1800W)
  • Iron (around 1000–2400W)
  • Washing machine on hot wash (up to around 2000W)
  • Dishwasher with standard heating element (around 1800–2400W)
  • Fan heater / convector heater (around 1000–2000W)
  • Most air fryers + fridge/freezer simultaneously
