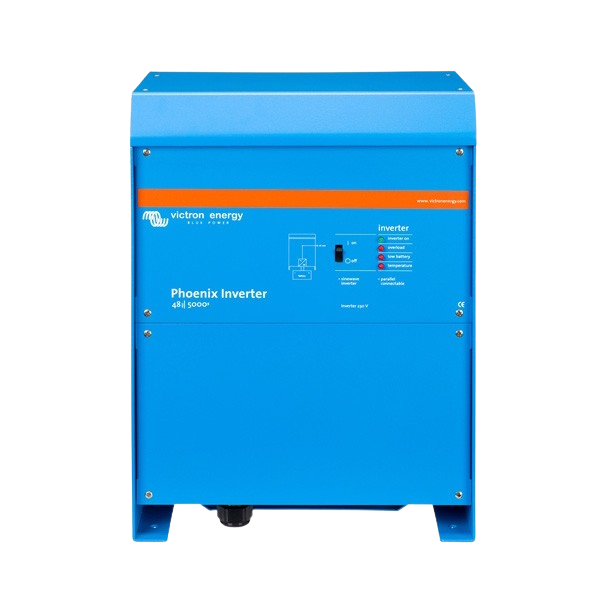

Victron Phoenix Inverter 48/5000 230V VE.Bus

£1,942.80 £1,699.95 SAVE £242.85
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PIN485020000
AVAILABLE IN 7-10 DAYS
Product Details

Phoenix Inverter
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Models:
3000VA - 5000VA

UD1122

Product Specifications

Technical Specifications

Combined for SKUs: PIN485020000

AC Output Voltage: 230 V

Ac Connection: Screw terminals

Battery Connection: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 48 V

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Continuous Power (VA, 25°C): 5,000 VA

Continuous Power (W, 25°C): 4,000 W

Continuous Power (W, 40°C): 3,700 W

Continuous Power (W, 65°C): 3,000 W

Cooling: Yes

DC Input Voltage Range: [38, 66] V

Depth: 240 mm

E MC: EN 55014-1,EN 55014-2

Frequency Select: 50Hz or 60Hz

Fully Programable: Yes

Height: 444 mm

Material: Aluminium

Max Efficiency: 95 %

Max Humidity: 95 %

Parallel3phase: Yes

Peak Power Rating: 10,000 W

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote Terminal: Screw terminal two pole

Safety: EN-IEC 60335-1

Weight: 30 kg

Width: 328 mm

Zero Load Power: 35 W

Zero Load Power (AES): 30 W

Zero Load Power (Search): 15 W

Source: Victron
