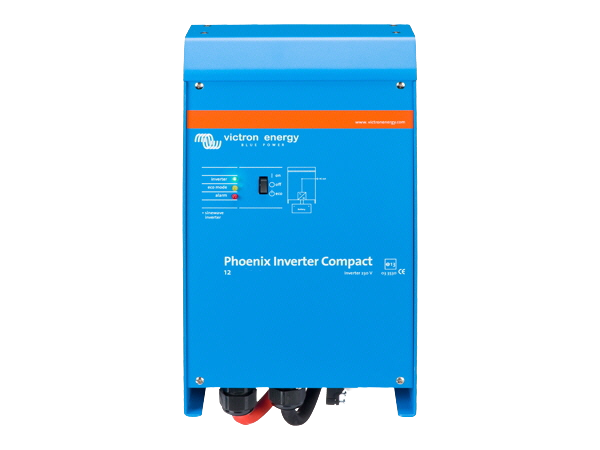

Victron Phoenix Inverter Compact 12/1200 VE.Bus – 12V 1200VA Pure Sine Wave Inverter

Reliable 12V to 230V pure sine wave inverter with 1200VA continuous output, designed for off-grid applications like campervans and boats.

High-Quality Power: Provides pure sine wave output, ensuring safe operation of sensitive devices. Energy Efficient: Optimised for high efficiency. Space-Saving Design: Compact and lightweight, perfect for installations with limited space. System Integration: Equipped with VE.Bus port for seamless integration with Victron systems. Dimensions: 375 x 214 x 110mm Weight: 10kg
£694.80 £399.99 SAVE £294.81
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: CIN122120000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Phoenix Inverter Compact 12/1200 VE.Bus is a high-performance, 12V pure sine wave inverter designed for demanding off-grid applications. With a continuous output of 1200VA and a peak power capacity of 2400VA, it ensures reliable and clean 230V AC power from a 12V DC source. Ideal for use in campervans, boats, and remote cabins, this inverter provides the flexibility and efficiency needed for various energy systems.

Key features include:

  • Pure Sine Wave Output: Delivers high-quality 230V AC power, suitable for sensitive electronics and appliances.

  • High Efficiency: Designed for professional duty with a focus on optimal performance and energy conservation.

  • Compact Design: Lightweight and space-saving, making it ideal for installations where space is limited.

  • VE.Bus Communication Port: Enables integration with other Victron devices for system monitoring and control.

  • Wide Application Range: Suitable for various off-grid applications, including mobile and marine environments.

Whether you're powering essential appliances in your campervan or providing backup power in a remote location, the Victron Phoenix Inverter Compact 12/1200 VE.Bus offers the reliability and performance you need.

Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 12 V
  • Input Voltage Range: 9.5 – 17 V
  • Continuous Output Power at 25°C: 1200 VA
  • Continuous Output Power at 25°C: 1000 W
  • Continuous Output Power at 40°C: 900 W
  • Continuous Output Power at 65°C: 600 W
  • Peak Power: 2400 W
  • Maximum Efficiency: 92 %
  • Zero Load Power: 8 W
  • Zero Load Power (AES Mode): 5 W
  • Zero Load Power (Search Mode): 2 W
  • Output Voltage: 230 VAC ± 2 % (Adjustable to 240 VAC)
  • Output Frequency: 50 Hz ± 0.1 % (Adjustable to 60 Hz)

General & Smart Features

  • SinusMax Technology: Provides very high start-up power, making it suitable for difficult loads that conventional high-frequency technology cannot handle.
  • Parallel and 3-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output. It can also be configured for three-phase operation.
  • VE.Bus Communication Port: Used for parallel and three-phase operation, remote monitoring, and system integration.
  • Programmable Relay: Features a relay that can be set for general alarms, DC under-voltage, or generator start/stop functions.
  • Remote On-Off: Yes
  • Computer Integration: Connect to a PC via an MK3-USB interface for custom parameter settings (voltage, frequency, alarms) using VictronConnect or VEConfigure software.
  • System Monitoring: Compatible with GX devices (such as a Cerbo GX) for comprehensive monitoring and control.

Mechanical Specifications

  • Enclosure Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Dimensions (h x w x d): 375 x 214 x 110 mm
  • Weight: 10 kg
  • Battery Connection: 1.5-meter battery cables included
  • 230 VAC Connection: G-ST18i plug
  • Operating Temperature Range: -40 to +65 °C (fan assisted cooling)
  • Humidity: Max 95 % (non-condensing)

Protection & Standards

  • Integrated Protection: Output short circuit, overload, battery voltage high, battery voltage low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
  • Safety: EN 60335-1
  • Emission / Immunity: EN 55014-1 / EN 55014-2

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter Compact 12/1200 VE.Bus – 12V 1200VA Pure Sine Wave Inverter - Manual
Victron Phoenix Inverter Compact 12/1200 VE.Bus – 12V 1200VA Pure Sine Wave Inverter - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1200VA inverter with an estimated continuous output of ~1000W. Well suited to more demanding off-grid living, including refrigeration and selected heating appliances.

Inverter size 1200VA
Continuous output ~1000W

Typical appliances you can run

  • Compressor fridge / freezer (all sizes)
  • Induction hob on a low power setting (around 800–1000W)
  • Small slow cooker (120–200W)
  • Electric blanket (60–100W)
  • Small inverter air-con (for example Dometic, around 650W running)
  • Water pump / pressure pump (300–600W)
  • CPAP with heated humidifier (around 100W)
  • Filter coffee machine (around 800–1000W)
