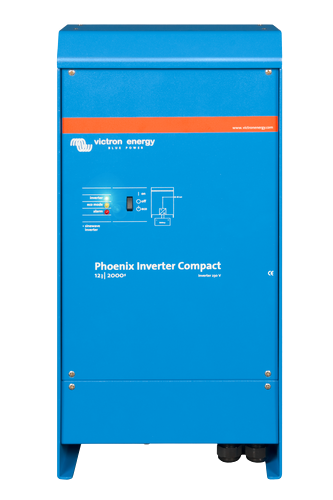

Victron Phoenix Inverter Compact 12/2000 230V VE.Bus

Technical Specifications

Combined for SKUs: CIN122200000

AC Output Voltage: 230 V

Ac Connection: Spring clamp

Battery Connection: M8 bolts

Battery Voltage Nominal: 12 V

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Continuous Power (VA, 25°C): 2,000 VA

Continuous Power (W, 25°C): 1,600 W

Continuous Power (W, 40°C): 1,450 W

Continuous Power (W, 65°C): 1,000 W

Cooling: Yes

DC Input Voltage Range: [7.5, 17] V

Depth: 125 mm

E MC: EN 55014-1,EN 55014-2

Frequency Select: 50Hz or 60Hz

Fully Programable: Yes

Height: 520 mm

Material: Aluminium

Max Efficiency: 92 %

Max Humidity: 95 %

Parallel3phase: Yes

Peak Power Rating: 4,000 W

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP21

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote Terminal: Screw terminal two pole

Safety: EN-IEC 60335-1

Weight: 12 kg

Width: 255 mm

Zero Load Power: 9 W

Zero Load Power (AES): 7 W

Zero Load Power (Search): 3 W
