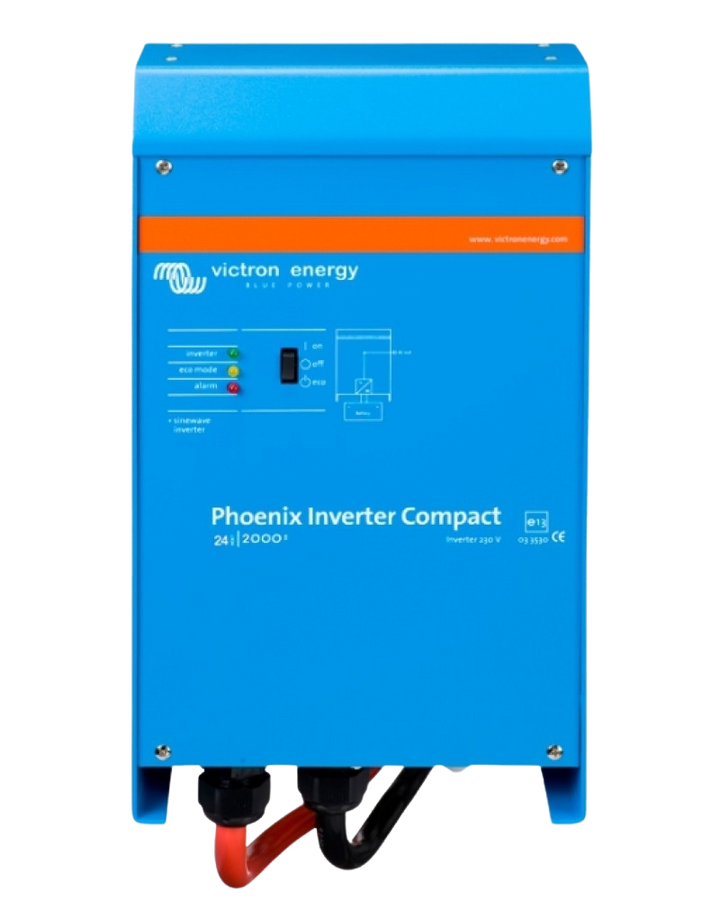

Victron Phoenix Inverter Compact 24/2000 230V VE.Bus

The Victron Phoenix Inverter Compact 24/2000 230 V VE.Bus is a professional-grade 24 V DC to 230 V AC pure sine wave inverter delivering 2000 VA continuous output. Compact in size yet robust in performance, it is designed for off-grid, marine, vehicle or mobile power systems with VE.Bus interface for monitoring and control.

Powerful 2000 VA continuous output from a 24 V battery system Pure sine wave output with high start-up power for challenging loads VE.Bus interface for system integration and remote monitoring Trusted brand with professional-grade build quality Dimensions: 520 x 255 x 125mm Weight: 12kg
£1,015.20 £796.99 SAVE £218.21
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: CIN242200000
AVAILABLE IN 7-10 DAYS
Product Details

This Victron Phoenix Inverter Compact 24/2000 230 V VE.Bus brings serious performance in a relatively compact unit. With a 24 V DC input and 2000 VA continuous output, it's suited to run demanding AC loads in off-grid or mobile power systems.

It features “SinusMax” technology delivering high start-up power so that even loads like refrigeration compressors or electric motors can be powered reliably.

VE.Bus communication allows integration with other Victron systems, remote monitoring and configuration for advanced setups.

With this inverter you get the flexibility of a high-output unit that can still fit into many installation spaces, whether aboard a boat, in a campervan or in a small off-grid house.

Product Specifications

Inverter Specifications

  • Input Voltage Range: 19 – 33 VDC
  • Output Voltage: 230 VAC ± 2%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 2000 VA
  • Continuous Output Power at 25°C: 1600 W
  • Continuous Output Power at 40°C: 1450 W
  • Continuous Output Power at 65°C: 1000 W
  • Peak Power: 4000 W
  • Maximum Efficiency: 92%
  • Zero-Load Power: 11 W
  • Zero-Load Power (AES Mode): 9 W
  • Zero-Load Power (Search Mode): 4 W

Features & Connectivity

  • SinusMax Technology: Delivers superior start-up power to support high-demand appliances that conventional high-frequency technology cannot handle.
  • VE.Bus Communication Port: Facilitates parallel and three-phase operation, as well as remote monitoring and system integration.
  • Customizable Parameters: Using a PC and the MK3-USB interface, parameters such as output voltage, frequency, and voltage thresholds can be fully customized via VictronConnect or VEConfigure software.
  • Programmable Relay: Can be configured for functions such as general alarms, DC under-voltage signaling, or generator start/stop commands.
  • Parallel Operation: Up to six units can be connected in parallel to achieve significantly higher power output.
  • Three-Phase Capability: Three units can be configured for three-phase power output.
  • Remote On-Off: Yes
  • GX Device Integration: Compatible with GX devices (e.g., Cerbo GX) for intuitive system control and monitoring.

Mechanical & Enclosure

  • Dimensions (H x W x D): 520 x 255 x 125 mm
  • Weight: 12 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: M8 bolts
  • 230V AC Connection: Spring-clamp terminals

Environmental & Standards

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
  • Humidity (Non-condensing): Max 95%
  • Safety Standards: EN 60335-1
  • Emission / Immunity: EN 55014-1 / EN 55014-2
  • Integrated Protections: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Phoenix Inverter Compact 24/2000 230V VE.Bus - Manual
Victron Phoenix Inverter Compact 24/2000 230V VE.Bus - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 2000VA inverter with an estimated continuous output of ~1600W. A high-capability option for kitchens, appliances and multi-load off-grid setups.

Inverter size 2000VA
Continuous output ~1600W

Typical appliances you can run

  • Most microwaves (around 900–1100W)
  • Induction hob, full single zone (around 1400–1800W)
  • Air fryer (most models, around 1200–1800W)
  • Standard vacuum cleaner (around 1000–1400W)
  • Portable heat pump AC (around 1000–1400W running)
  • Hair dryer on a low setting (around 1000W)
  • Fridge-freezer + microwave simultaneously
  • Washing machine on a cold wash (around 400–600W)
