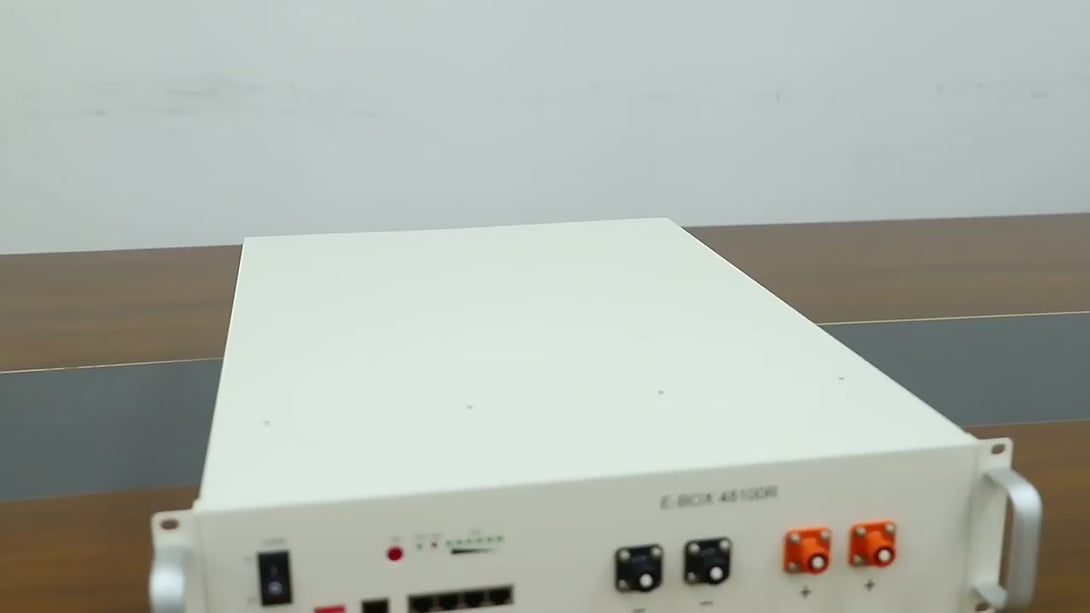

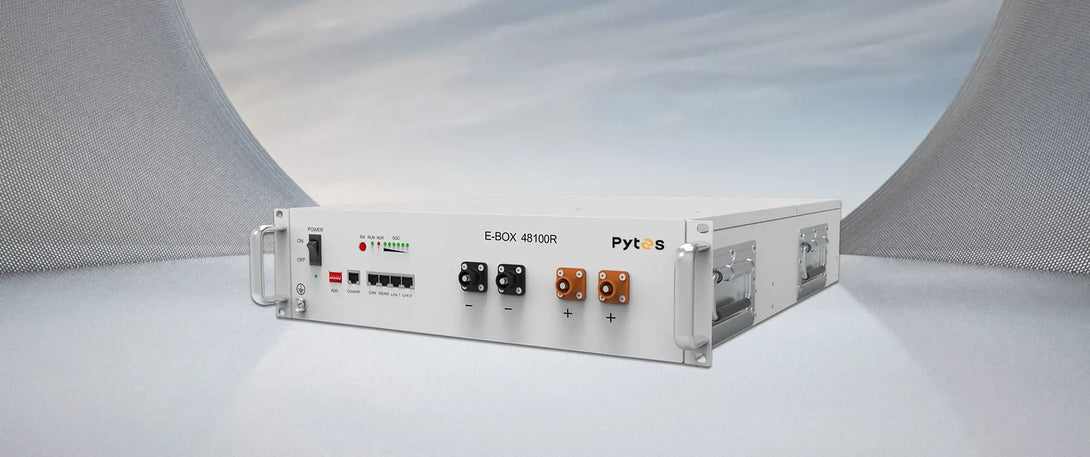

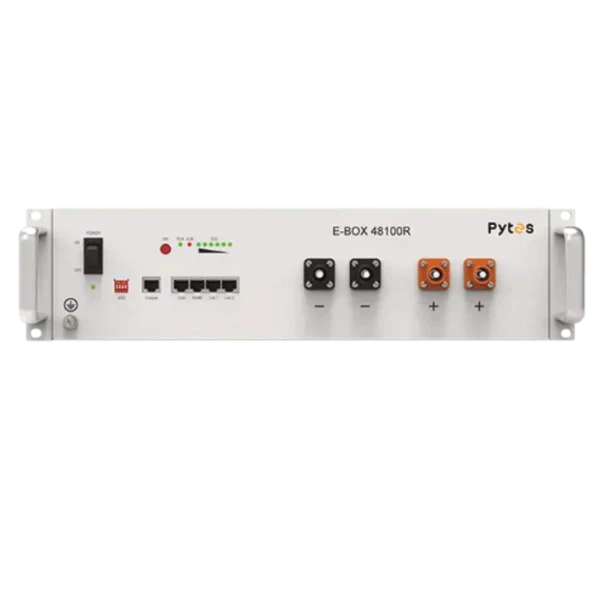

Pytes E-BOX 48100R 5.12kWh LFP Solar Battery
The Pytes E-BOX 48100R is a 5.12kWh LiFePO4 solar battery designed for residential and commercial energy storage. Ideal for off-grid, on-grid, and backup power applications, it delivers long-lasting, reliable performance with high thermal stability and a long cycle life.
Featuring a compact, easy-to-install design and advanced safety protections against overcharging, over-discharging, and short circuits, this lithium iron phosphate battery is a cost-effective solution for boosting energy independence and cutting electricity bills.
Perfect for solar power systems seeking efficient and durable energy storage.
Safe and Reliable
- Tier 1 Automotive Grade A prismatic LiFePO4 cells
- Self-developed BMS (Dual active MCU protection)
- State-of-the-art battery pack design achieves market-leading performance and safety
Long-lasting and Efficient
- ≥6000 cycles @90%DOD, ret@80%, 25℃
- >95% Round-trip efficiency
- 10 years warranty, Up to 20 years design life
- Product Liability Insurance for North and Latin America
Compact, Flexible and Easy Install
- Slimmer than most 5kWh server rack batteries
- Can be installed vertically and horizontally
- Brackets and battery enclosures available
- Wall mount, floor-stand or server rack mount
Scalable for Demand
- Expandable up to 491.52kWh
- Max support 56 units parallel connection
Wide Applications
- Off-grid, Back-up, Zero Export, Time-of-Use, Demand Response, Peak Shaving, and Virtual Power Plant
- Home Appliances, Electric Power Systems, Uninterrupted Power Supply
Electrical
Nominal Voltage 51.2V
Voltage Range 47.5V~57.6V
Nominal Capacity 100Ah
Nominal Energy 5.12kWh
Recommended Charge/Discharge Current 50A(2.56kW DC)
Maximum Charge/ Discharge Current 50A(2.56kW DC)
Peak Discharge Current 102A(5.22kW@15s)
General
Chemistry LFP
Communication Protocol CAN/RS485
Dimensions (L x W x H) 440*620*117 mm
Weight 112.5lbs/51kg
Operating Temperature Charge:32°F~113°F/0°C~45°C
Discharge:14°F~122°F/-10°C~50°C
Round-Trip Efficiency ≥95%
Cycle Life ≥6000 cycles
Altitude <13123.35ft/4000m
Warranty 10 Years
Scalability 16 pcs (81.92kWh) in a group
6 groups (491.52kWh) in a system w/a Hub
Certifications
UL 9540 Ed.2 (2020), UL 9540A, UL 1973, CEC, SGIP
