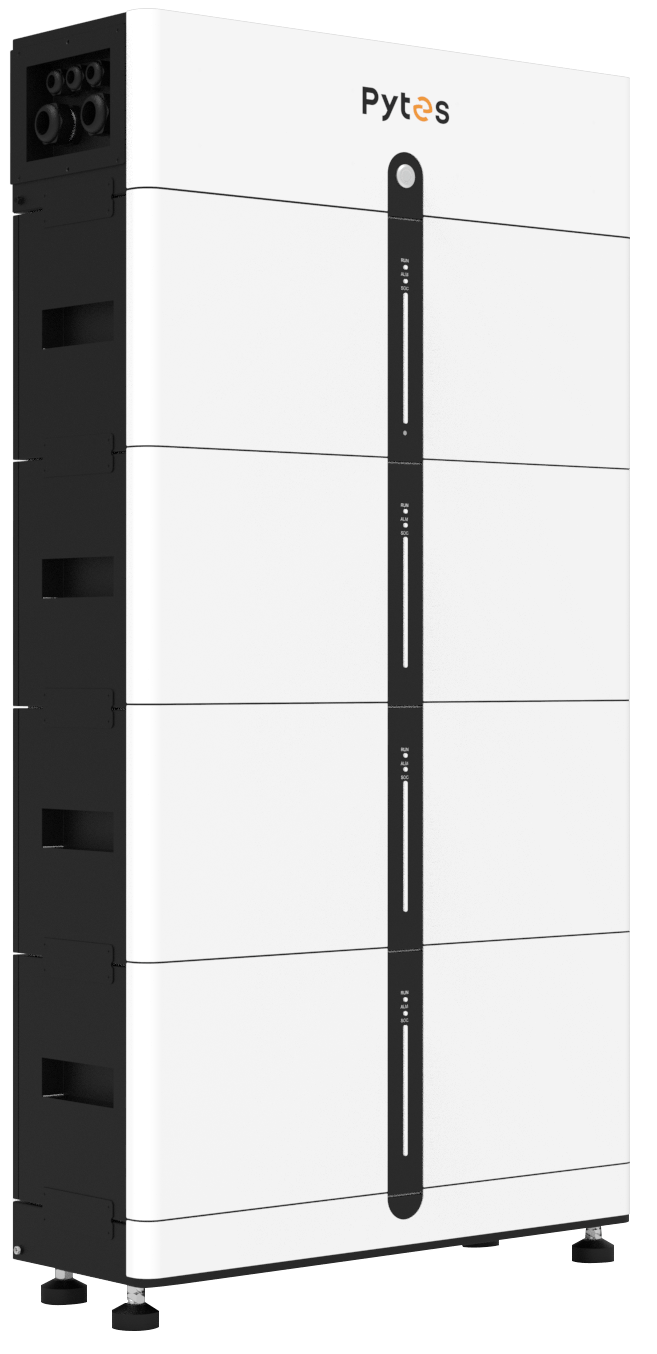

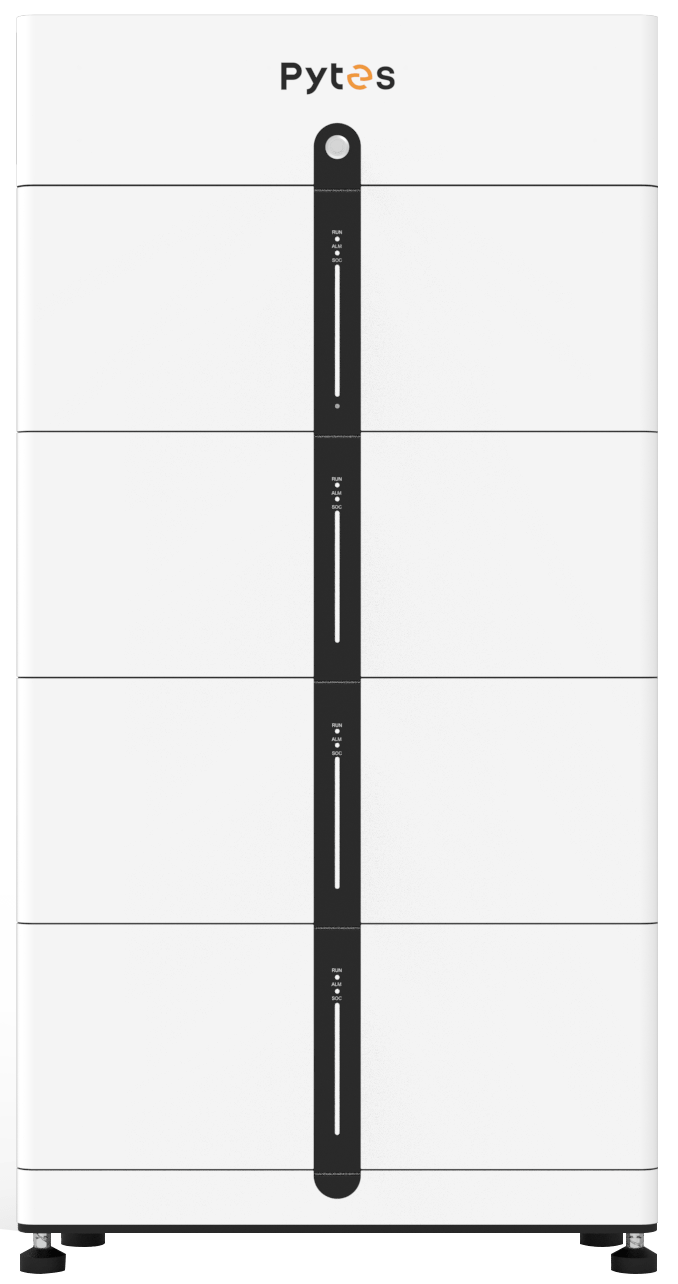

Pytes Pi LV1 Modular Stackable LFP Battery 5kWh - 30kWh
The Pi LV1 is a high-quality, stackable lithium iron phosphate (LiFePO4) battery solution designed for both internal and external installations. Offering a maximum capacity of 30.72kWh per stack, this battery delivers reliable, long-lasting performance for a variety of applications. Whether for off-grid or on-grid use, backup power, or energy storage, the Pi LV1 is perfect for both residential and commercial setups.
Each Battery Management Unit (BMU) adds an additional 5.12kWh of storage, and up to 6 batteries can be stacked in a single unit. For even greater energy capacity, multiple stacks can be connected to expand storage as needed.
Battery Module Unit:
Cell Type LFP
Nominal Energy 5.12kWh
Nominal Voltage 51.2V
Voltage Range 47.5V~56.8V
Nominal Capacity 100Ah
Recommended Continuous Discharge Current 50A
Recommended Continuous Charge Current 50A
Certifications CE, IEC62619, UL1973, UN38.3, UL9540, UL9540A

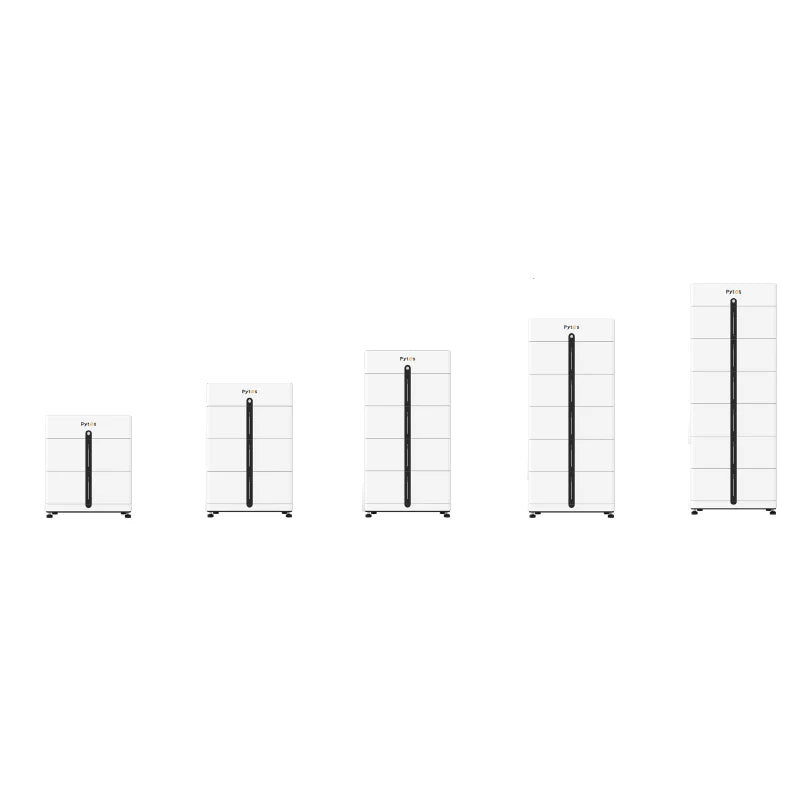

Model 1:
Nominal Energy: 5.12kWh
Recommended Power: 2.56kW
Dimensions: 681mm x 242mm x 540mm
Weight: 71.7Kg
Model 2:
Nominal Energy: 10.24kWh
Recommended Power: 5.12kW
Dimensions: 681mm x 242mm x 800mm
Weight: 125Kg
Model 3:
Nominal Energy: 15.36kWh
Recommended Power: 7.68kW
Dimensions: 681mm x 242mm x 1060mm
Weight: 178.3Kg
Model 4:
Nominal Energy: 20.48kWh
Recommended Power: 10.24kW
Dimensions: 681mm x 242mm x 1320mm
Weight: 231.6Kg
Model 5:
Nominal Energy: 25.6kWh
Recommended Power: 10.24kW
Dimensions: 681mm x 242mm x 1580mm
Weight: 284.9Kg
Model 6:
Nominal Energy: 30.72kWh
Recommended Power: 10.24kW
Dimensions: 681mm x 242mm x 1840mm
Weight: 338.2Kg
Efficiency: >=95%
Communication: CAN, RS485
Cycle Life: >=6000Cycles
Protection Level: IP55
Ambient Temperature: -10°C~55°C / 14°F~131°F
Storage Temperature:
Within 1 month: -20°C~50°C / -4°F~122°F
1~3 months: -10°C~40°C /14°F~104°F
3~12 months: 0°C~30°C /32°F~86°F
