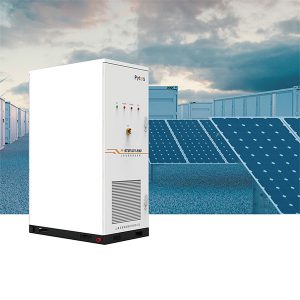

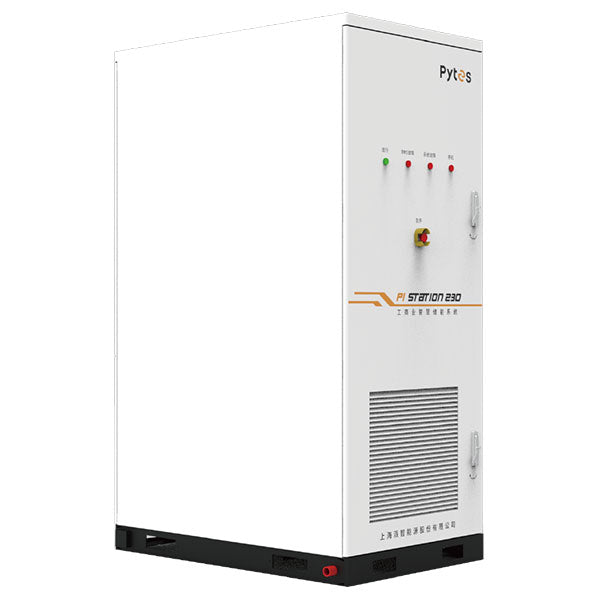

Pytes Pi Station 230EX - 230kWh LFP Solar Battery
The Pytes Pi Station 230EX liquid cooling battery cabinet integrates battery modules with a full configuration capacity of 230kWh. It can be widely used in various application scenarios such as generation and transmission grid, distribution grid, new energy plants.
System Specification:
- Battery Chemistry: LFP (LiFePO4)
- Battery Capacity: 232.96kWh
- Battery Nominal Voltage: 832V
- Nominal Output Power: 105KW
- Operating DC Voltage Range: 650V-949V
- Recommended. Charging/Discharging Current: 140A
- Fire Fighting System:
-
- Sensor Tube(Aerosol)
- Water Fire Fighting System
- Heat/Smoke/Gas sensor
- Cell Life Cycle: 6000
- DOD: 90%
- Warranty: 3 Year Product Warranty, 10 Year Battery Warranty
Communication
- Communication port: CAN, RS485, Ethernet
- Communication protocol: ModbusRTU/TCP
Mechanical
- Dimensions(W*D*H): 960*1440*2400mm
- Weight: 2500kg
- Cooling System: Liquid cooling
- IP protection: IP54
Environmental
- Reactive Humidity: 0-95% (no condensing)
- Operating Temperature Range: -20~55°C
- Recommended Cell Temperature Range: Charge:0~55°C; Discharge:-20~55°C
- Altitude: 2000m (>2000 derating)
Regulations
Certification:
CELL
IEC 62619:2022, IS 16046 (PART 2) : 2018 / IEC 62133-2 : 2017, UL1642, UL1973,
UL9540A, GB/T36276-2023, GB 38031-2020, GB/T 31486-2015,
GB/T 31484-2015, GB/T 30512-2014, UN38.3, REACH, RoHS
PCS
CE-EMC, CE-LVD, South Africa NRS097, 50549-1 European general,
50549-2 European general, 50549-1 Netherlands, 50549-1 C10/11 Belgium,
50549-1 Greece, 50549-1 Sweden, 50549-1 Poland, England-G99,
VDE-AR-N 4105:2018, GB/T 34120-2017
System
UN38.3, IEC62619, IEC63056, IEC62477, CE-EMC
