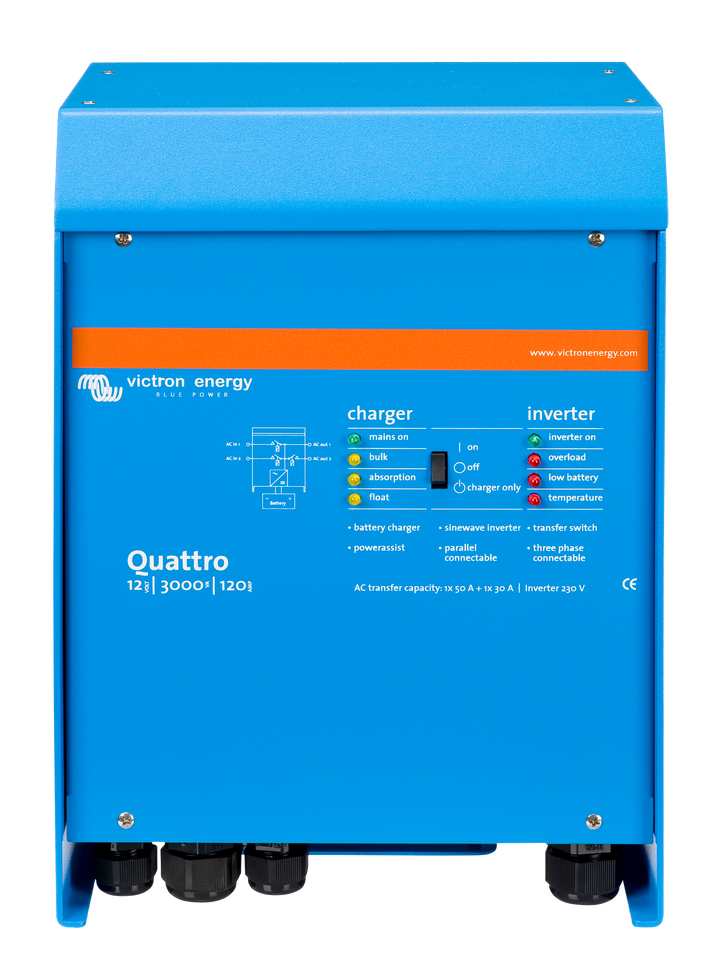

Victron Quattro 12/3000/120-50/50 230V VE.Bus

The Victron Quattro 12/3000/120-50/50 230V VE.Bus is a high-performance inverter charger designed for off-grid and backup power systems, offering dual AC inputs, 3000VA continuous output, and 120A charging current.

Dual AC Input with Automatic Transfer High Output Power and Charging Capacity PowerAssist Technology for Overload Protection Seamless Transfer for Uninterrupted Power Flexible System Configurations with Parallel and Three-Phase Support Dimensions: 362 x 258 x 218mm Weight: 19kg
£1,900.00 £1,400.00 SAVE £500.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: QUA123020010
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Quattro 12/3000/120-50/50 230V VE.Bus is a robust inverter charger tailored for demanding off-grid and backup power applications. With a continuous output power of 3000VA and a charging current of 120A, it ensures reliable power supply and efficient battery charging.

The Quattro features two AC inputs with an integrated transfer switch, allowing connection to two independent AC sources, such as the public grid and a generator. It automatically connects to the active source, ensuring uninterrupted power supply.

Equipped with PowerAssist technology, the Quattro can supplement the AC input with power from the battery, preventing overloads and ensuring a stable power supply. Its seamless transfer capability ensures that connected loads continue to operate without disruption during power outages or when switching between AC sources.

The Quattro also supports parallel and three-phase configurations, providing flexibility for various system sizes and configurations.

Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 12 V
  • Input Voltage Range (VDC): 9.5 – 17 V
  • Output Voltage: 230 VAC ± 2%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
  • Continuous Output Power at 25°C: 3000 VA
  • Continuous Output Power at 25°C: 2400 W
  • Continuous Output Power at 40°C: 2200 W
  • Continuous Output Power at 65°C: 1700 W
  • Peak Power: 6000 W
  • Maximum Efficiency: 93%
  • Zero-Load Power: 20 W
  • Zero-Load Power (AES Mode): 15 W
  • Zero-Load Power (Search Mode): 8 W
  • Maximum Continuous Output Current: 11 A
  • Maximum Output Fault Current: 32 A peak (1 sec)

Charger Specifications

  • AC Input Voltage Range: 187 – 250 VAC
  • AC Input Frequency: 50/60 Hz
  • Charge Voltage 'Absorption': 14.4 VDC
  • Charge Voltage 'Float': 13.8 VDC
  • Storage Mode: 13.2 VDC
  • Charge Current House Battery: 120 A (at 25°C ambient)
  • Charge Current Starter Battery: 4 A
  • Battery Temperature Sensor: Yes

Key Features & Connectivity

  • PowerControl & PowerAssist: Yes (Allows current limits on AC inputs and supplements source power with battery power during peak loads)
  • Integrated Transfer Switch: Yes (Dual AC inputs)
  • Maximum Feed-Through Current: 2x 50 A
  • Two AC Outputs: Main output (no-break) and a secondary output (active only when AC is available on an input)
  • Auxiliary Output: 25 A (Switches off when no external AC source is available)
  • Programmable Relays: 3x (Can be set for general alarm, DC under voltage, or generator start/stop)
  • VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration
  • General Purpose COM Ports: 2x
  • Three-Phase & Parallel Capability: Up to 6 units can be connected in parallel; compatible with 3-phase configurations.

Mechanical Specifications

  • Dimensions (H x W x D): 364 x 295 x 221 mm
  • Weight: 19 kg
  • Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
  • 230V AC Connection: Screw terminals (13 mm² / 6 AWG)

Environmental & Standards

  • Operating Temperature Range: -20 to +60°C
  • Humidity (Non-condensing): Max 95%
  • Maximum Altitude: 2000 m
  • Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Road Vehicles: ECE R10-4
  • Internal Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron Quattro 12/3000/120-50/50 230V VE.Bus - Manual
Victron Quattro 12/3000/120-50/50 230V VE.Bus - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 3000VA inverter with an estimated continuous output of ~2400W. A powerful home and off-grid tier that supports most mainstream household appliances.

Inverter size 3000VA
Continuous output ~2400W

Typical appliances you can run

  • Near limit: kettle (around 2500–3000W)
  • Hair dryer on full heat (around 1800–2200W)
  • Toaster (around 800–1800W)
  • Iron (around 1000–2400W)
  • Washing machine on hot wash (up to around 2000W)
  • Dishwasher with standard heating element (around 1800–2400W)
  • Fan heater / convector heater (around 1000–2000W)
  • Most air fryers + fridge/freezer simultaneously
