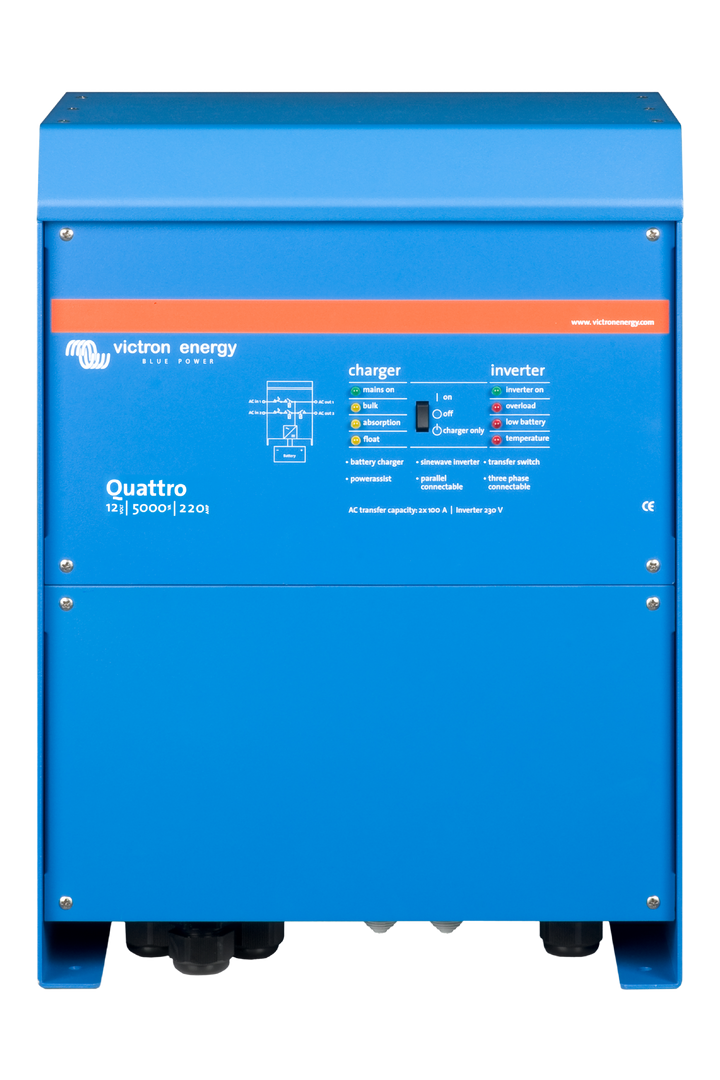

Victron Quattro 12/5000/220-100/100 – 12V 5000VA Inverter/Charger

Inverter Specifications

• Nominal Battery Voltage: 12 VDC
• Input Voltage Range: 9.5 – 17 VDC
• Continuous Output Power at 25°C: 5000 VA
• Continuous Output Power at 25°C: 4000 W
• Continuous Output Power at 40°C: 3700 W
• Continuous Output Power at 65°C: 3000 W
• Peak Power: 10000 W
• Output Voltage: 230 VAC ± 2%
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
• Maximum Efficiency: 94%
• Zero Load Power: 30 W
• Zero Load Power in AES Mode: 20 W
• Zero Load Power in Search Mode: 10 W
• Maximum Continuous Output Current: 19 A
• Maximum Output Fault Current: 53 A peak (1 sec)

Charger Specifications

• AC Input Voltage Range: 187 – 250 VAC
• Input Frequency: 50/60 Hz
• Charge Voltage 'Absorption': 14.4 VDC
• Charge Voltage 'Float': 13.8 VDC
• Storage Mode: 13.2 VDC
• Charge Current House Battery: 220 A
• Charge Current Starter Battery: 4 A
• Battery Temperature Sensor: Yes

Key Features & Connectivity

• Two AC Inputs: Integrated transfer switch for automatic connection to the active source.
• Two AC Outputs: Main output (no-break) and a second output that is only live when AC is available on one of the inputs (ideal for heavy loads like water heaters).
• Maximum Feed-Through Current: 2x 100 A
• PowerControl & PowerAssist: Allows for setting a current limit on AC inputs to prevent overloading generators or shore power, and supplements the capacity of the alternative source with battery power during peak loads.
• Parallel Operation: Up to 6 units can be parallel connected to achieve higher power output.
• Three-Phase Capability: Three units can be configured for three-phase output.
• Programmable Relays: 3x (Can be set for general alarm, DC under-voltage, or generator start/stop functions).
• Auxiliary Output: 50 A (Switches off when no external AC source is available).
• Communication Ports: VE.Bus for parallel/three-phase operation and remote monitoring; 2x general purpose COM ports.
• Remote Monitoring and Control: Compatible with Cerbo GX, smartphone or tablet (Bluetooth Smart), and PC (USB or RS232).

Mechanical Specifications

• Dimensions (H x W x D): 470 x 350 x 280 mm
• Weight: 34 kg
• Material & Colour: Aluminium (Blue RAL 5012)
• Protection Category: IP20
• Battery Connection: Four M8 bolts (2 positive and 2 negative)
• 230V AC Connection: M6 Bolts
• Operating Temperature Range: -20 to +60°C
• Humidity: Max 95% (non-condensing)

Standards & Protections

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
• Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road Vehicles: ECE R10-4
• Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
