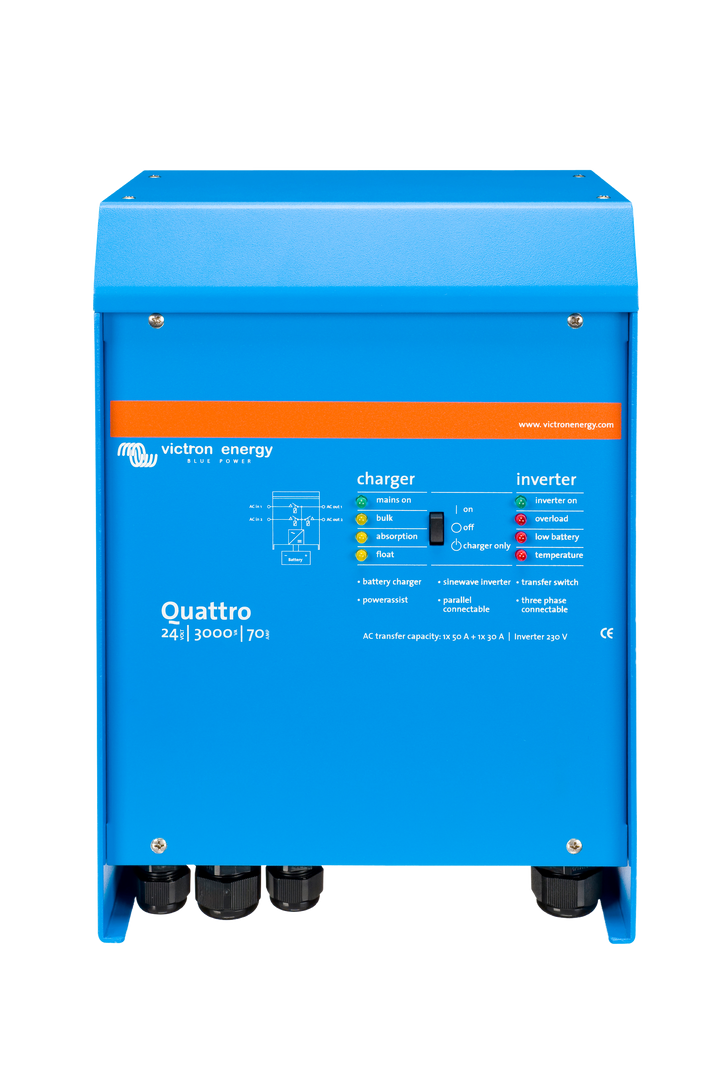

Victron Quattro 24/3000/70-50/50 230V VE.Bus

The Victron Quattro 24/3000/70‑50/50 230V VE.Bus is a compact inverter/charger with dual AC inputs, seamless switching, and advanced power management features for off‑grid and backup systems.

Dual AC Inputs with Auto‑Switching Seamless No‑Break Operation PowerAssist Technology to Prevent Overload Scalable Parallel and Three‑Phase Operation Advanced Adaptive Battery Charging
£2,692.80 £2,187.99 SAVE £504.81
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: QUA243020010
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Quattro 24/3000/70‑50/50 230V VE.Bus is a high‑performance inverter/charger designed for demanding off‑grid, marine, and backup power applications. It features:

  • Dual AC Inputs: Connects to two independent AC sources (e.g., shore power and generator) and automatically switches to the active source.
  • No‑Break Operation: Provides uninterrupted power to connected loads during AC supply interruptions.
  • PowerAssist Technology: Prevents overload of limited AC sources by supplementing with battery power.
  • Parallel and Three‑Phase Capabilities: Up to six units can operate in parallel or in three‑phase configurations to achieve higher power output.
  • Advanced Battery Charging: Adaptive charging algorithms optimise battery life and performance.

Dimensions: 362 x 258 x 218 mm

These dimensions make the unit relatively compact for its capacity, facilitating mounting in plant rooms, AC compartments, or large battery enclosures.

Product Specifications

Technical Specifications

Combined for SKUs: QUA243020010

AC Input Voltage Range: [187, 250] V

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Automotive Directive: ECE R10-4

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 24 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 28.8 VDC

Charge Voltage Float: 27.6 VDC

Charge Voltage Storage: 26.4 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

D CInput Current: 250 A

DC Input Voltage Range: [19, 33] VDC

Depth: 218 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Frequency Select: 50Hz or 60Hz

Height: 362 mm

Icw: 10,000 A

Integrated Transfer Switch: Yes

Material: Aluminium

Max Altitude: 2,000 m

Max Efficiency: 94 %

Max Feed Trough Current: 2x 100A

Max Humidity: 95 %

Max Output Ac Current: 93 A

Max Output Ac Current Fault: 32 A

Maximum Battery Charge Current: 70 A

Number Ac Inputs: 2

Ovciii Icw: Yes

Parallel Operation: Yes

Peak Power Rating: 6,000 W

Pollution Degree: 2

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP20

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Starter Battery Charge Current: 4 A

Temperature Sensor: Included

Three-phase Operation: Yes

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 19 kg

Width: 258 mm

Zero Load Power: 20 W

Zero Load Power (AES): 15 W

Zero Load Power (Search): 10 W

Source: Victron
