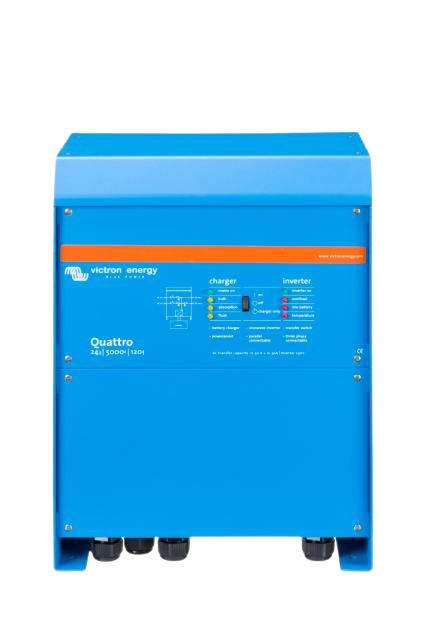

Victron Quattro 24/5000/120-100/100 230V VE.Bus

The Victron Quattro 24/5000/120-100/100 230V VE.Bus is a robust inverter/charger with dual AC inputs, seamless no-break switching, and power management features for demanding off-grid or backup systems.

Dual AC Inputs with Auto-Switching Seamless No-Break Operation High Inverter & Charger Output PowerAssist Load Support Robust System Integration Features Dimensions: 444 x 328 x 240mm Weight: 30kg
£3,690.00 £2,999.99 SAVE £690.01
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: QUA245021010
IN STOCK
Receive between -
Product Details

The Victron Quattro 24/5000/120-100/100 230V VE.Bus is a high-performance combined inverter and charger designed for systems requiring both strong inverter output and substantial charging capacity. It supports two AC inputs (for example shore power and a generator) and can switch seamlessly to inverter mode without interruption to connected loads.

Key specifications and capabilities include:

  • Inverter output power: 5 000 VA
  • Charger output current: 120 A
  • Transfer switch capacity (for AC inputs): 100 A for each input (dual)
  • PowerAssist / PowerControl features to support load demands and manage limited generator or shore supply.

Dimensions: 444 x 328 x 240 mm

These dimensions make the unit relatively compact for its capacity, facilitating mounting in plant rooms, AC compartments or large battery enclosures.

Product Specifications

Technical Specifications

Combined for SKUs: QUA245021010

A CConnection Terminal Type: M6 bolts

AC Input Voltage Range: [187, 250] V

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Automotive Directive: ECE R10-4

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 24 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 28.8 VDC

Charge Voltage Float: 27.6 VDC

Charge Voltage Storage: 26.4 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Continuous Power (VA, 25°C): 5,000 VA

Continuous Power (W, 25°C): 4,000 W

Continuous Power (W, 40°C): 3,700 W

Continuous Power (W, 65°C): 3,000 W

D CInput Current: 238 A

DC Input Voltage Range: [19, 33] VDC

Depth: 240 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Frequency Select: 50Hz or 60Hz

Height: 444 mm

Icw: 10,000 A

Integrated Transfer Switch: Yes

Material: Aluminium

Max Altitude: 2,000 m

Max Efficiency: 94 %

Max Feed Trough Current: 2x 100A

Max Humidity: 95 %

Max Output Ac Current: 19 A

Max Output Ac Current Fault: 53 A

Maximum Battery Charge Current: 120 A

Number Ac Inputs: 2

Ovciii Icw: Yes

Parallel Operation: Yes

Peak Power Rating: 10,000 W

Pollution Degree: 2

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP20

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Starter Battery Charge Current: 4 A

Temperature Sensor: Included

Three-phase Operation: Yes

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 30 kg

Width: 328 mm

Zero Load Power: 30 W

Zero Load Power (AES): 25 W

Zero Load Power (Search): 10 W

Source: Victron
