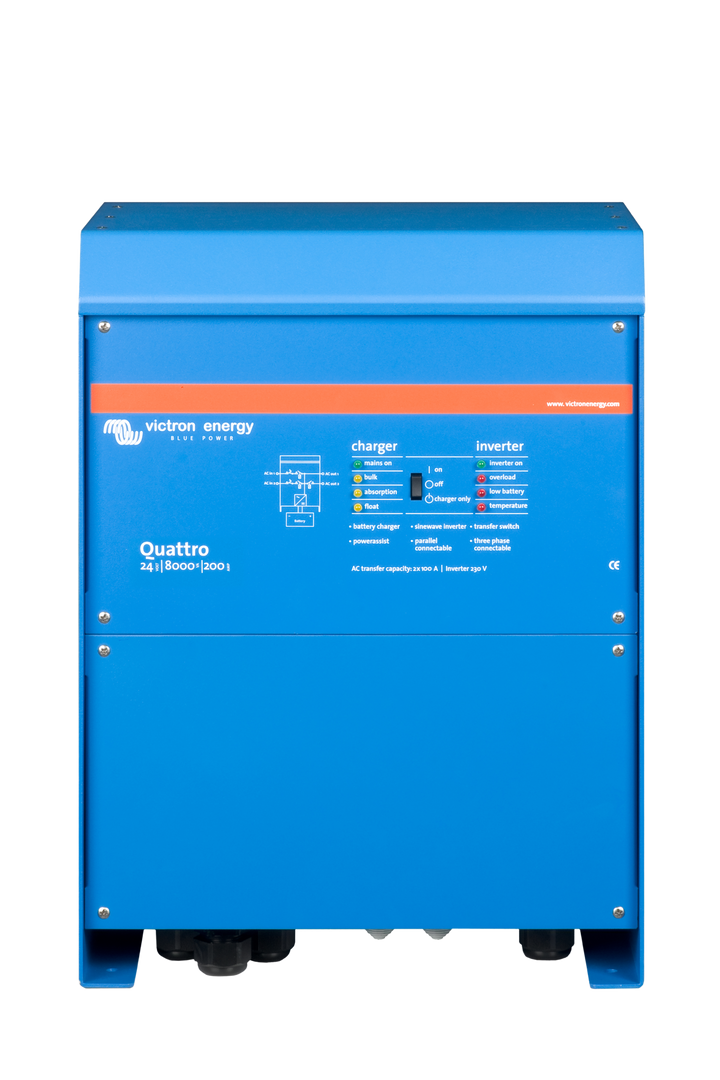

Victron Quattro 24/8000/200-100/100 230V VE.Bus

Inverter Specifications

• Nominal Battery Voltage: 24 V
• Input Voltage Range: 19 – 33 VDC
• Output Voltage: 230 VAC ± 2%
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
• Continuous Output Power at 25°C: 8000 VA
• Continuous Output Power at 25°C: 6400 W
• Continuous Output Power at 40°C: 5500 W
• Continuous Output Power at 65°C: 3600 W
• Peak Power: 16000 W
• Maximum Efficiency: 94%
• Zero-Load Power: 60 W
• Zero-Load Power (AES Mode): 40 W
• Zero-Load Power (Search Mode): 15 W
• Maximum Continuous Output Current: 30 A
• Maximum Output Fault Current: 100 A peak (1 sec)

Charger Specifications

• AC Input Voltage Range: 187 – 250 VAC
• AC Input Frequency: 50/60 Hz
• Charge Voltage 'Absorption': 28.8 VDC
• Charge Voltage 'Float': 27.6 VDC
• Storage Mode: 26.4 VDC
• Charge Current House Battery: 200 A (at 25°C ambient)
• Charge Current Starter Battery: 4 A
• Battery Temperature Sensor: Yes

Key Features & Connectivity

• Two AC Inputs: Integrated transfer switch for dual power sources (e.g., Grid and Generator).
• Integrated Transfer Switch: Yes (2x 100 A)
• Maximum Feed-Through Current: 2x 100 A
• PowerControl & PowerAssist: Yes (Prevents source overload by setting current limits and supplements source power with battery energy during peak loads).
• Two AC Outputs: Main output (no-break) and a secondary output (active only when AC is available on an input, ideal for loads like water heaters).
• Auxiliary Output: 50 A (Switches off when no external AC source is available).
• Programmable Relays: 3x (Can be set for general alarm, DC under-voltage, or generator start/stop function).
• VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
• General Purpose COM Ports: 2x
• Three-Phase & Parallel Capability: Up to 6 units can be connected in parallel; compatible with 3-phase configurations.

Mechanical Specifications

• Dimensions (H x W x D): 470 x 350 x 280 mm
• Weight: 45 kg
• Material & Colour: Aluminium (Blue RAL 5012)
• Protection Category: IP20
• Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
• 230V AC Connection: M6 bolts
• Remote On-Off: Yes

Environmental & Standards

• Operating Temperature Range: -20 to +60°C
• Humidity (Non-condensing): Max 95%
• Maximum Altitude: 2000 m
• Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
• Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road Vehicles: ECE R10-4
• Internal Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
