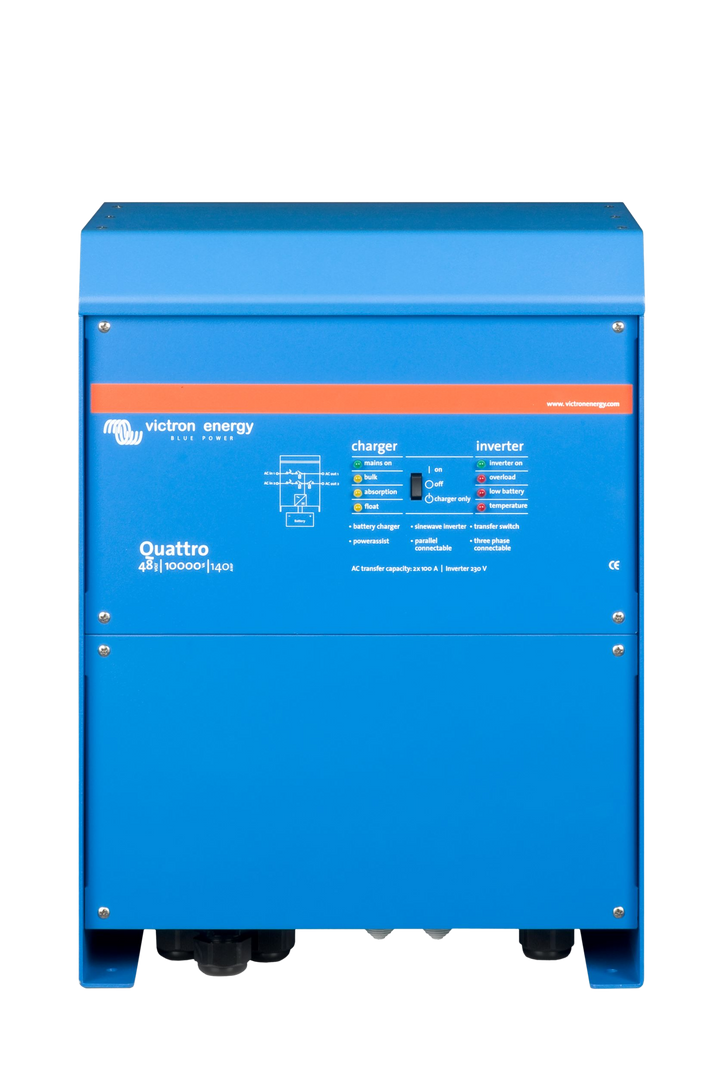

Blue Victron Energy Quattro battery charger and inverter on a white background

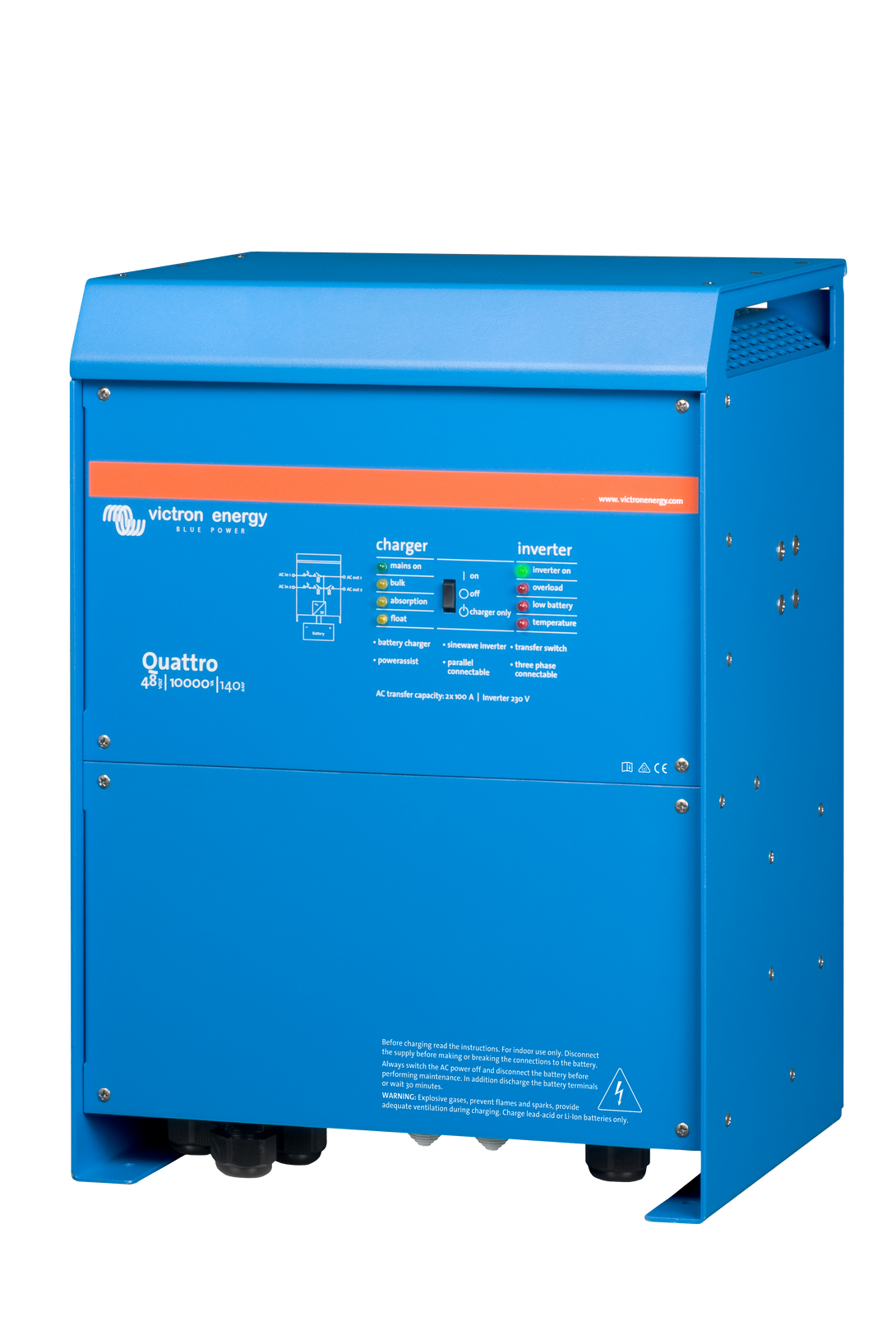

Blue Victron Energy Quattro charger/inverter on a white background

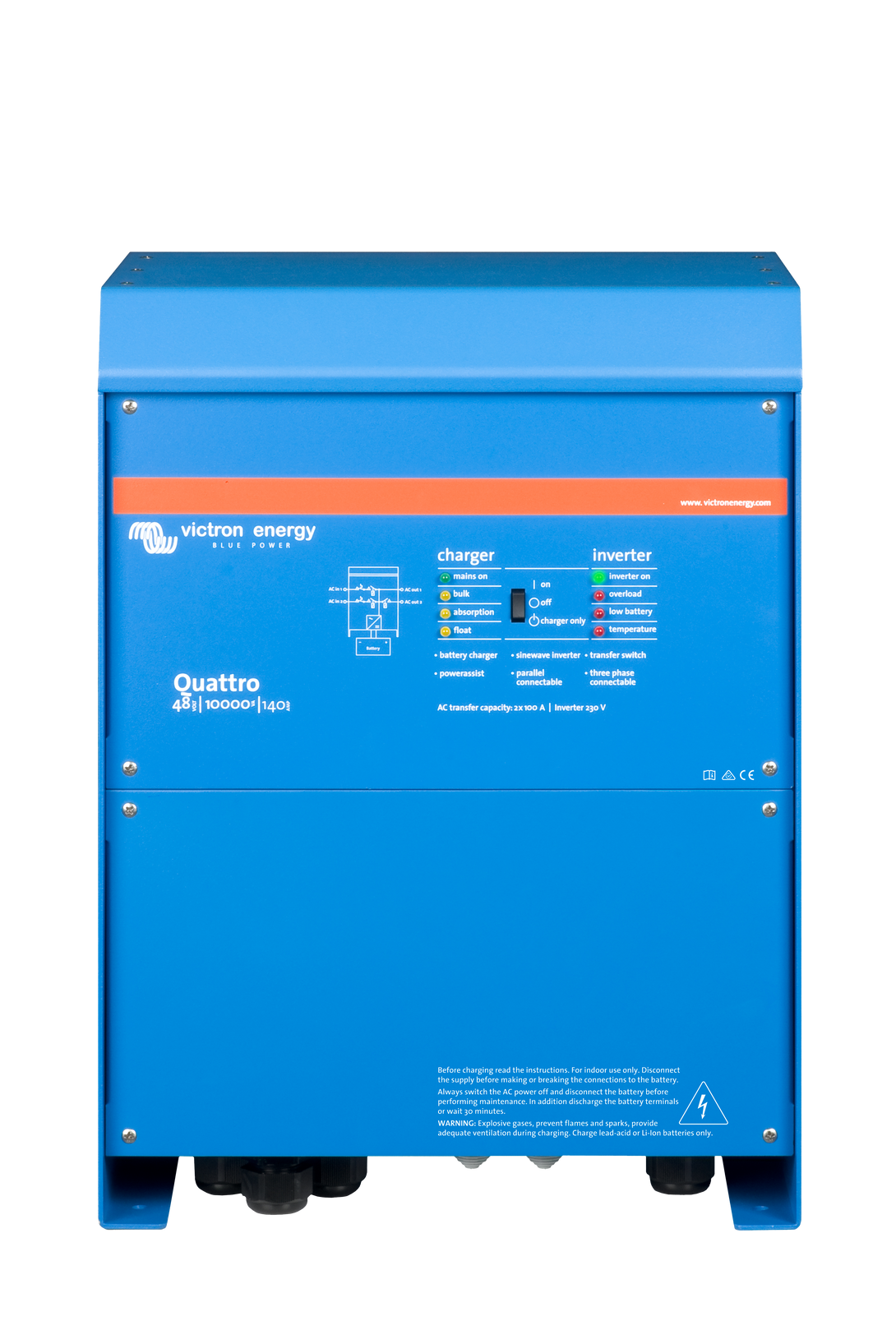

Blue Victron Energy Quattro inverter on a white background
Fast Delivery
Expert Support

Victron Quattro 48/10000/140-100/100 230V VE.Bus

The Victron Energy Quattro 48/10000/140-100/100 230V VE.Bus is a high-performance inverter charger designed for off-grid and backup power systems, offering seamless transfer between two AC sources and advanced system integration features.

Dual AC Input with Automatic Transfer High Output Power and Charging Capacity PowerAssist Technology for Overload Protection Seamless Transfer for Uninterrupted Power Flexible System Configurations with Parallel and Three-Phase Support
£2,599.00 £1,949.00 SAVE £650.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: QUA481030010
IN STOCK
Receive between -
Product Details

Multifunctional
Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Two AC Inputs & two AC Outputs
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature
The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation
Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control
Monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Quattro to setting a Geofence for hire vehicles and more...

Product Specifications

Technical Specifications

Combined for SKUs: QUA481030010

AC Connection Terminal Type: M6 bolts

AC Input Voltage Range: [187, 250] V

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 48 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 57.6 VDC

Charge Voltage Float: 55.2 VDC

Charge Voltage Storage: 52.8 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Continuous Power (VA, 25°C): 10,000 VA

Continuous Power (W, 25°C): 8,000 W

Continuous Power (W, 40°C): 6,500 W

Continuous Power (W, 65°C): 4,500 W

DC Input Current: 235 A

DC Input Voltage Range: [38, 66] VDC

Depth: 280 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Frequency Select: 50Hz or 60Hz

Height: 470 mm

Icw: 10,000 A

Integrated Transfer Switch: Yes

Material: Aluminium

Max Altitude: 2,000 m

Max Efficiency: 96 %

Max Feed Trough Current: 2x 100A

Max Humidity: 95 %

Max Output Ac Current: 37 A

Max Output Ac Current Fault: 100 A

Maximum Battery Charge Current: 140 A

Number Ac Inputs: 2

Ovciii Icw: Yes

Parallel Operation: Yes

Peak Power Rating: 20,000 W

Pollution Degree: 2

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP20

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Temperature Sensor: Included

Three-phase Operation: Yes

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 51 kg

Width: 350 mm

Zero Load Power: 60 W

Zero Load Power (AES): 40 W

Zero Load Power (Search): 15 W

Source: Victron
