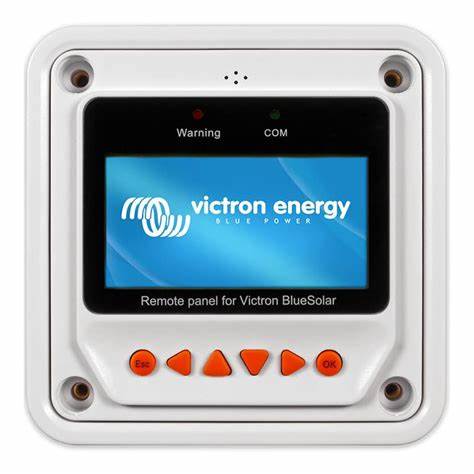

Remote panel for BlueSolar PWM-Pro Charge Controller

Add a local display & control interface to your BlueSolar PWM-Pro controller. Monitor battery status, load, PV input, set charge modes, view state of charge, and get visual/audible alerts for faults, all via RJ45 connection.

Comprehensive Monitoring: Displays PV voltage/current, battery voltage/current/SOC%, and load voltage/current in real-time. Historical Data Tracking: Tracks charge and discharge energy (kWh) for the current day, month, and total cumulative values. Visual & Audible Alerts: Features a dedicated Warning LED that flashes during controller failure and a Communication LED to confirm the link status. Includes a toggleable audible alarm. Full System Setup: Allows modification of battery types (Gel, Sealed, Flooded, User), battery capacity, temperature compensation coefficients, and specific voltage setpoints for Equalize, Boost, and Float stages. Advanced Load Control: Enables configuration of load output modes including Manual Control, Light On/Off (dusk/dawn), Light On + Timer, and specific Time Control periods. Secure Access: Settings are protected by a user-definable password to prevent unauthorized changes to charging parameters. Dimensions: 114 x 114 x 36.1mm Weight: 0.2kg
£67.20 £58.80 SAVE £8.40
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC900300000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Remote Panel is an accessory for the BlueSolar PWM-Pro series. It provides a local display and user interface, allowing you to monitor system parameters, see state of charge, adjust settings, and respond to alarms without accessing the controller directly. It connects via RJ45 cable and offers visual indicators and an audible alert for failures, giving you greater control and awareness of your solar battery system.

Applications

  • Remote monitoring of BlueSolar PWM-Pro installed in hard-to-access locations
  • Solar battery systems in caravans, boats, RVs where user convenience matters
  • Off-grid solar systems where visualisation of state of charge and loads is helpful
  • Situations where quick fault detection is needed without accessing controller directly
Product Specifications

Technical Specifications

  • SKU: SCC900300000
  • Self-Consumption (Backlight & Alarm On): Max 65mA
  • Self-Consumption (Backlight On): Max 23mA
  • Self-Consumption (Backlight Off): Max 15mA
  • Faceplate Dimensions: 98 × 98 mm (3.86 × 3.86 inch)
  • Frame Dimensions: 114 × 114 mm (4.49 × 4.49 inch)
  • Connector Type: RJ45
  • Max Cable Length: 20 Meters
  • Weight: 0.2 Kg
  • Ambient Operating Temperature: -20°C to +70°C (-4°F to 158°F)

System Compatibility

  • Charge Controllers: Designed exclusively for BlueSolar PWM-Pro charge controllers (12/24V; 5A, 10A, 20A, and 30A models).
  • Connection: Connects to the controller via a standard RJ45 UTP cable for both power and RS485 communication.

Quality & Warranty

  • Warranty: Backed by Victron Energy's industry-leading 5-year standard warranty.
  • Certifications: Manufactured in ISO 9001 certified facilities and compliant with official Declarations of Conformity.
  • Global Support: Supported by a worldwide network of highly trained dealers for technical assistance.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.
