Scanstrut Tile 12V/24V Indoor Ultra Fast Dual USB Charger - Black Bezel

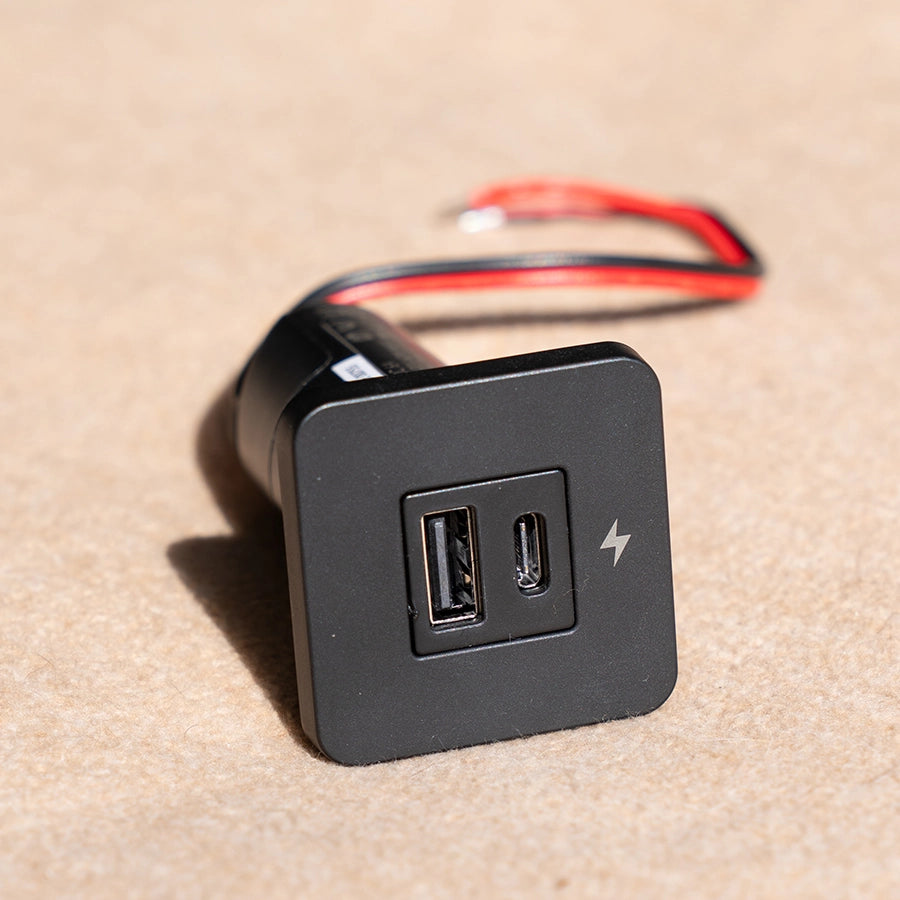

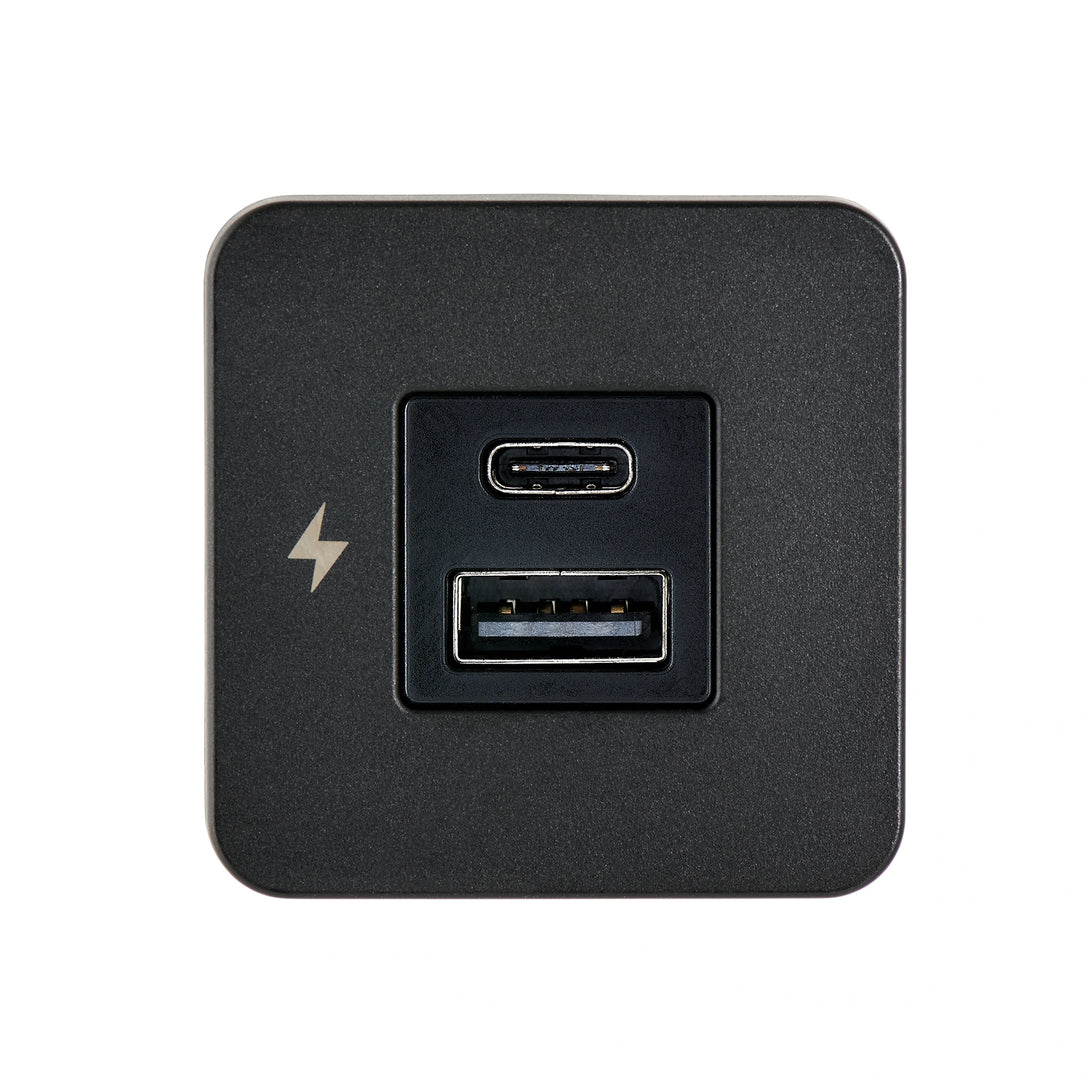

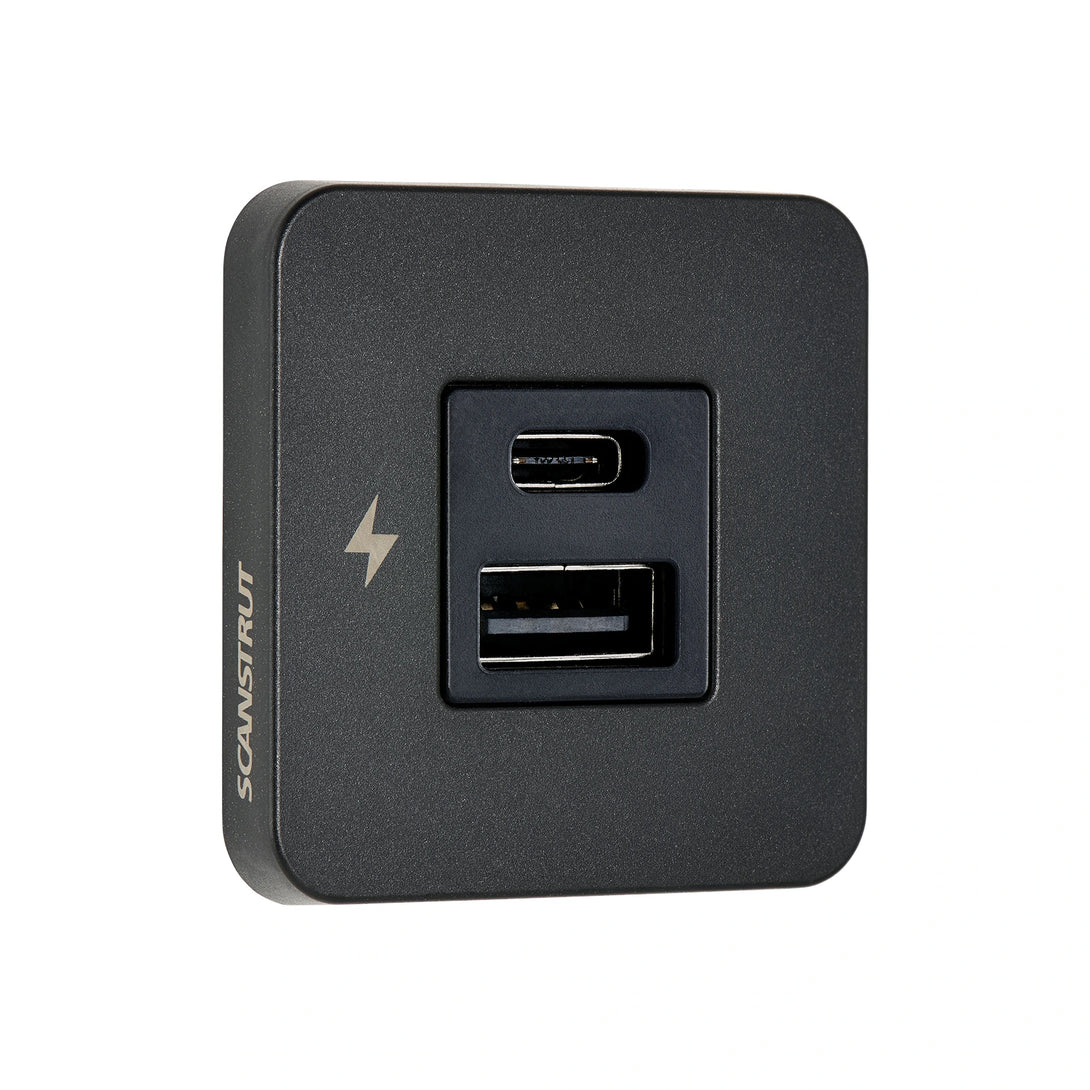

The Scanstrut TILE Series offers a sophisticated, high-performance charging solution designed specifically for luxury RV and marine interiors. The SC-TILE-10 model features a dual-port design (USB-A and USB-C), blending a tiny footprint with a sleek, ultra-low profile to modernise any interior space.

60W USB-C Fast Charging – Perfect for laptops, tablets & smartphones Minimalist Flush-Fit Design – Stylish 40mm footprint, front-fit install Dual USB-A & USB-C Ports – Universal compatibility for modern devices Premium Finish Options – Marine-grade stainless steel or matte black Simple Install – 29mm hole saw, no complex wiring Moisture-Resistant Electronics – Conformal-coated for dry interiors Smart Charging Tech – Optimised output for fast, safe charging
£49.99
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SC-TILE-10
IN STOCK
Receive between -
Product Details

Scanstrut TILE USB-A & USB-C Flush-Fit Charger – 12/24V Campervan Interior

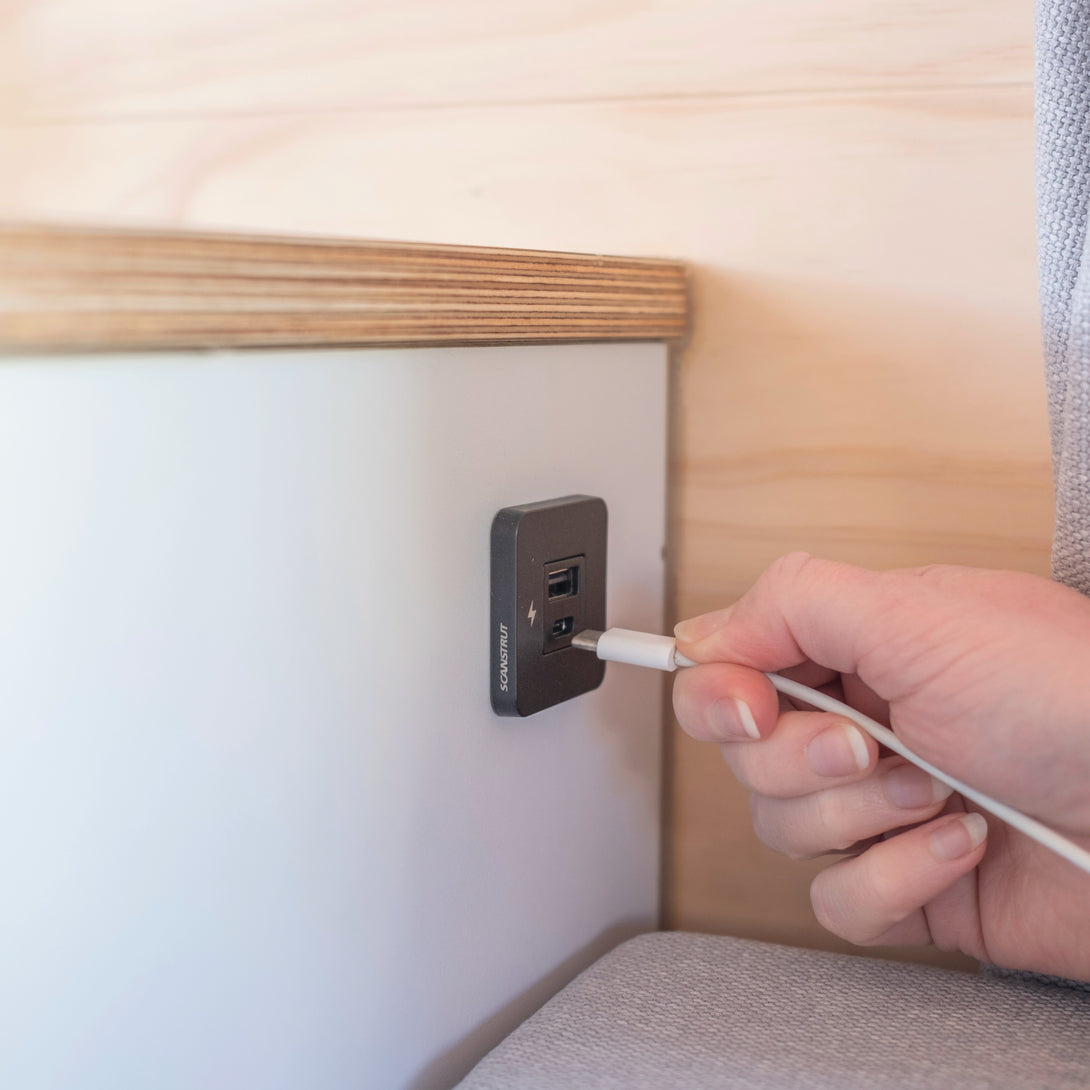

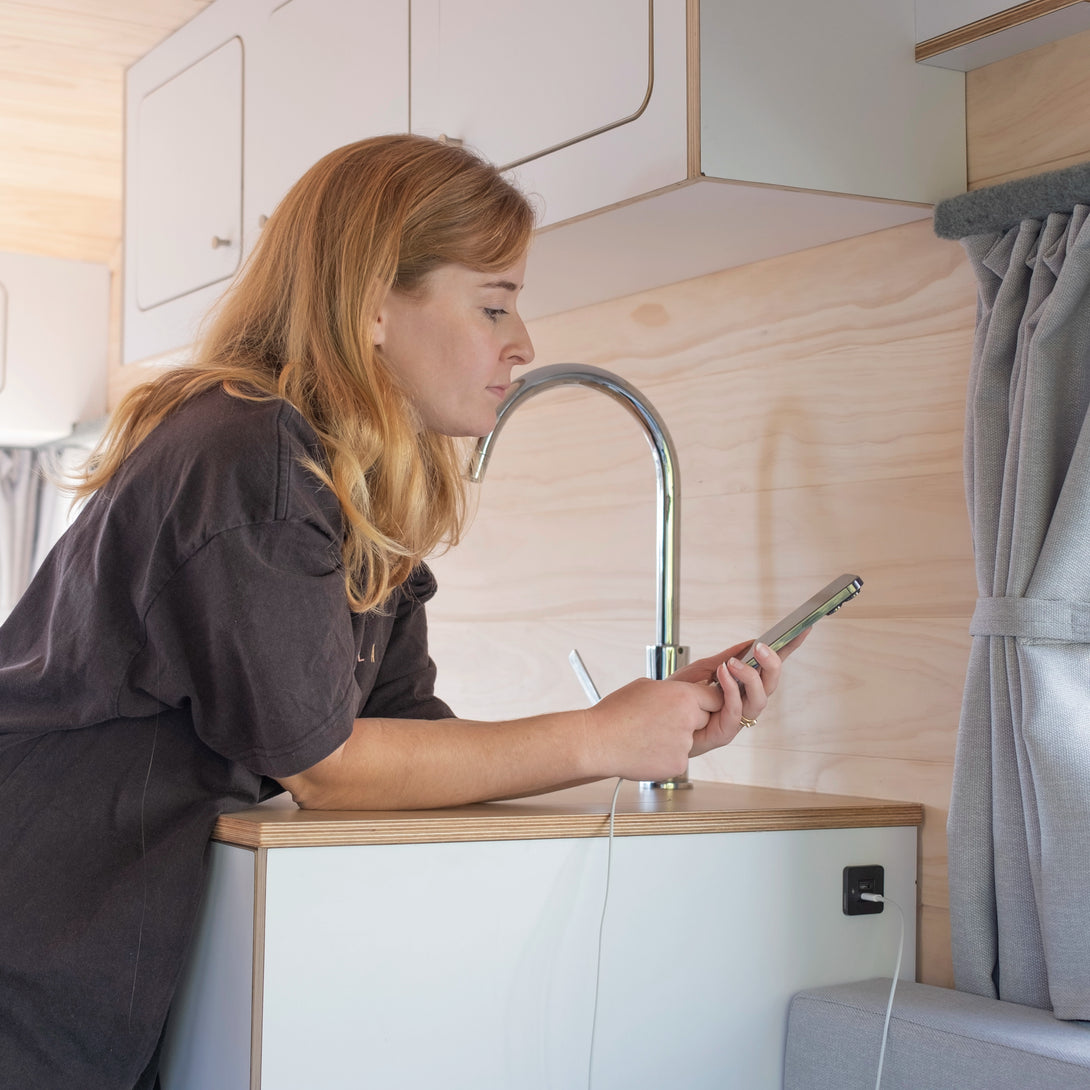

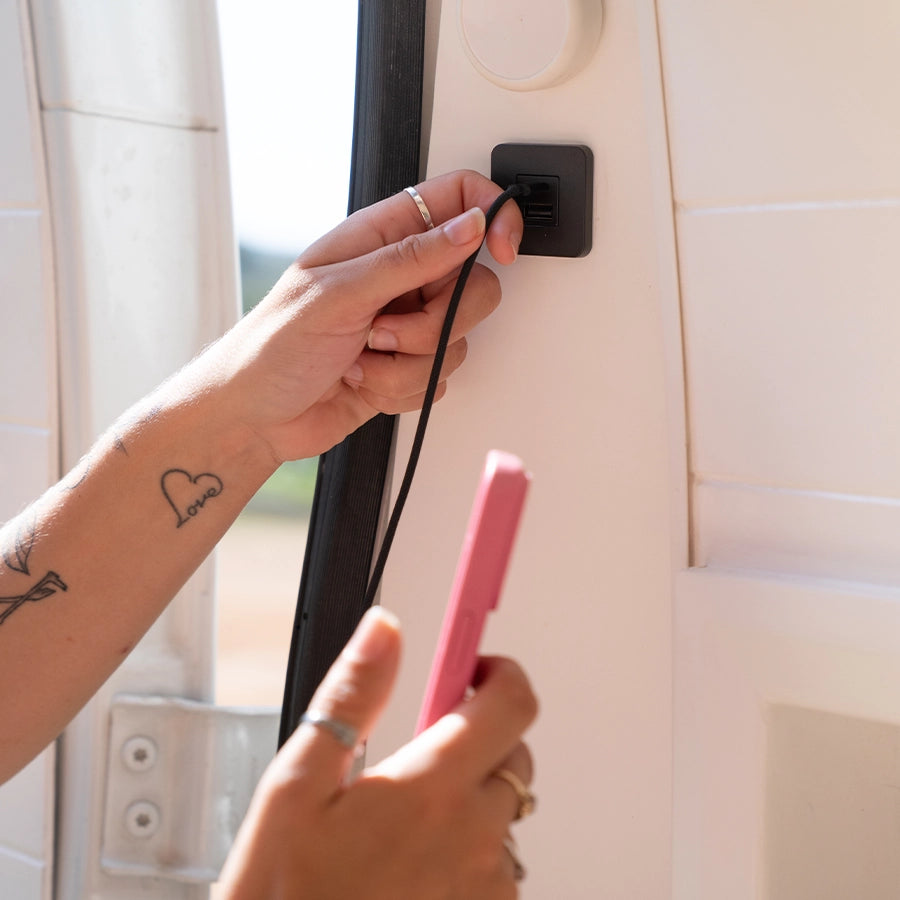

Bring refined charging power to your RV interior with the Scanstrut TILE USB Charger. Designed specifically for sleek, modern recreational vehicles, the TILE series offers fast, dual USB-A & USB-C charging in a discreet, ultra-low-profile design.

With a compact footprint, luxurious finish, and performance up to 60W, TILE modernises your interior space while powering your most important devices, effortlessly.

Designed for Life Inside Your Campervan

Available in marine-grade 316 stainless steel or matte black, the TILE series blends beautifully into premium campervan cabinetry, control panels, and worktops. It requires just a 29mm cut-out for a quick, front-fit installation and delivers next-level charging speeds through both USB-A and USB-C outputs.

  • Discreet flush-fit design – just 40mm diameter
  • Modern aesthetic – in stainless steel or matte black
  • 60W fast charging on 24V systems – ideal for laptops, tablets, and phones
  • USB-C and USB-A compatibility – power multiple devices simultaneously

Performance Meets Practicality

On a 12V system, TILE outputs up to 36W; on a 24V system, you unlock full 60W USB-C performance, ideal for powering modern laptops and power-hungry tablets. Use the device’s original charging cable (C to C or C to Lightning) to ensure optimal speeds.

Built for Sophisticated Spaces

Though it’s not designed for wet environments, TILE is protected by conformal-coated internal electronics to guard against cabin moisture. It’s the perfect blend of safety, style, and performance, indoors only.

⚠ WARNING
TILE USB products are designed for interior use only. Do not install in locations where water exposure is possible, as this may lead to product failure.

Product Specifications

Electrical Specifications

  • Input Voltage: 10-32V DC (Compatible with 12/24V systems)
  • Input Current Max: 6A
  • Recommended Fuse: 10A
  • Standby Power Draw: 0.01W
  • USB-C Output:
    - 12V System:     36W Max (5V⎓3A, 9V⎓3A, 12V⎓3A)
    - 24V System: 60W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
  • USB-A Output:
    - 12V System:     36W Max (5V⎓3A, 9V⎓3A, 12V⎓3A)
    - 24V System: 60W Max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
  • Total Charging Power: Capable of fast-charging up to 2 devices at a time. While phones charge at the same speed on either system, a 24V system is required to achieve the full 60W output for laptops.

Design & Build Quality

  • Installation Type: Front fit
  • Profile: Ultra-low profile for a flush, professional finish
  • Protection: Conformal coated electronics for enhanced moisture resistance
  • Bezel Finish: Matt Black
  • Environment: Interior use only. Do not install in locations where water exposure is possible.

Device Compatibility

  • Universal Fit: Compatible with any USB-C and USB-A connectors.
  • Supported Devices: Engineered to charge modern laptops, large tablets, smartphones, and other USB-powered devices.
  • Charging Tip: Use the original cable supplied with your device (e.g., C-to-C or C-to-Lightning) to maximize charging performance.

Installation Data

  • Hole Saw Diameter: 29mm (1.14”)
  • External Footprint: 40mm (1.57”)
  • Ease of Install: Compact design allows for easy integration into modern RV and vessel panels using standard tools.

Certifications & Compliance

  • Compliance: CE, FCC, UKCA, C-Tick, ROHS, WEEE
