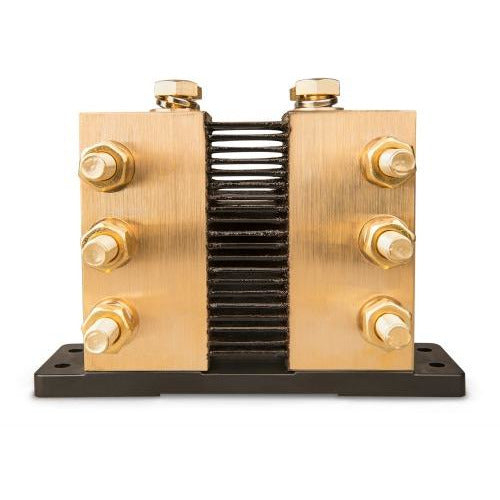

Victron SHU102050200 Shunt 1000A / 50mV -0.5

Monitor large battery systems accurately with this 1000A shunt. Provides precise 50mV output and is ideal for marine, off-grid, industrial, and vehicle applications.

1000A high-current capacity 50mV precision output Heavy-duty terminals for secure connections Durable construction for harsh environments Suitable for marine, off-grid, industrial, and vehicle battery systems Dimensions: 257 x 250 x 365 mm Weight: 0.11kg
£115.20 £82.00 SAVE £33.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SHU102050200
AVAILABLE IN 7-10 DAYS
Product Details

The Victron SHU102050200 Shunt 1000A is designed for precise monitoring of large battery banks and high-current systems. Rated up to 1000A, it provides reliable current measurement and accurate battery usage data. Built with durable materials and heavy-duty terminals, it is ideal for marine, off-grid, industrial, and vehicle power systems.

Key Features

  • High-Current Capacity: Rated up to 1000A for demanding applications
  • Precision Measurement: 50mV output for accurate current monitoring
  • Heavy-Duty Construction: Robust terminals for secure and reliable connections
  • Durable and Reliable: Long-term performance in harsh environments
  • Versatile Application: Suitable for large battery banks, solar, marine, and off-grid systems

Applications

  • Large off-grid solar battery systems
  • Marine and boat power systems
  • Industrial and commercial battery banks
  • High-current vehicle or RV systems
Product Specifications

Electrical Specifications

  • Current Rating: 1000 A (Continuous)
  • Rated Output: 50 mV at 1000 A
  • Accuracy Class: 0.5 (±0.5%)
  • Resistance: 50 µΩ (0.00005 Ω)
  • Power Dissipation at 1000A: 50 W
  • Power Dissipation at 500A: 12.5 W
  • Power Dissipation at 100A: 0.5 W

Mechanical & Physical Specifications

  • Dimensions (L x W x H): 168 x 58 x 48 mm
  • Weight: Approximately 1.1 kg
  • Main Terminals: 2 x M10 connection studs
  • Sense Terminals: 2 x M4 screws
  • Resistive Element: Precision manganin alloy
  • End Blocks: Heavy copper construction

Compatibility & Equipment

  • Compatible Monitors: Designed for Victron battery monitors that support external 50 mV shunts, including:
    - Victron BMV-700
    - Victron BMV-702
    - Victron BMV-712 Smart
  • Installation Note: This is a passive shunt and does not include an integrated PCB or Bluetooth. When used to upgrade a standard BMV battery monitor, the interface electronics must be transferred from the original 500A shunt to this 1000A unit.

Installation & Applications

  • Wiring Requirements: Must be installed in the battery negative conductor only. All charging sources and loads (except the battery) must be connected to the system side of the shunt to ensure accurate measurement.
  • Typical Applications:
     - Large LiFePO4 battery banks
    - Marine electrical systems
    - Off-grid solar installations
    - RVs with large inverter systems
    - High-power industrial DC distribution

Key Features

  • High-Precision Monitoring: Class 0.5 rating provides high accuracy for critical battery management systems.
  • Extremely Low Resistance: The 50 micro-ohm resistance minimizes voltage drop in the system while providing a reliable signal.
  • Rugged Build Quality: Features heavy copper end blocks and precision alloy elements designed for high-current durability.
  • Maintenance-Free: Passive device with no power requirements or internal electronics.
  • Extended Range: Essential for systems where standard 500A shunts are insufficient for peak current demands.

Warranty

  • Manufacturer Warranty: 5 Years
