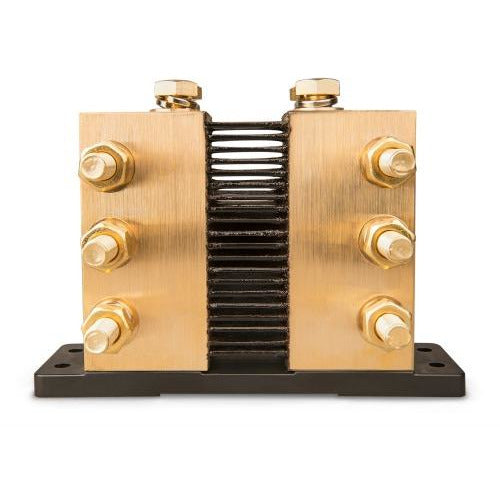

Shunt 6000A/50mV-0.5 / 5xM10

The Shunt 6000A/50mV-0.5 / 5xM10 by Victron Energy offers high-precision current measurement for demanding applications. With a 6000A capacity and 50mV voltage drop, it's ideal for industrial, renewable energy, and marine systems.

High Current Capacity: Handles up to 6000A, suitable for large-scale applications. Low Voltage Drop: 50mV ensures minimal power loss, enhancing system efficiency. High Precision: 0.5% tolerance provides accurate current measurements. Versatile Mounting: 5 M10 threaded holes offer flexible installation options. Durable Construction: Built to withstand harsh environments, ensuring longevity. Dimensions: 135 × 60 × 168 mm
£316.80 £226.00 SAVE £90.80
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SHU602050200
AVAILABLE IN 7-10 DAYS
Product Details

The Shunt 6000A/50mV-0.5 / 5xM10 (model SHU602050200) by Victron Energy is a high-precision current measurement device designed for demanding applications. With its robust construction and precise specifications, it ensures accurate monitoring of high-current systems, making it ideal for various industrial and renewable energy setups.

Key Features:

  • High Current Capacity: Designed to handle up to 6000A, this shunt is suitable for large-scale applications requiring precise current measurement.
  • Low Voltage Drop: Operating at 50mV, it ensures minimal power loss, enhancing the efficiency of the system.
  • High Precision: With a tolerance of 0.5%, it provides accurate current measurements, crucial for monitoring and control systems.
  • Multiple Mounting Options: Equipped with 5 M10 threaded holes, it offers versatile installation possibilities, accommodating various setups.
  • Durable Construction: Built to withstand harsh environments, ensuring longevity and reliable performance.

Ideal Use:

This shunt is perfect for applications requiring accurate current measurement, including:

  • Industrial Power Systems: Monitor and manage high-current industrial electrical systems.
  • Renewable Energy Installations: Ensure efficient operation of solar and wind energy systems by accurately measuring current flow.
  • Marine Applications: Maintain optimal performance of onboard electrical systems in marine vessels.

By integrating the Shunt 6000A/50mV-0.5 / 5xM10 into your system, you ensure precise current measurement, leading to enhanced system performance and longevity.

Product Specifications

Electrical Specifications

  • Continuous Current Rating: 6000 A
  • Rated Output: 50 mV @ 6000 A
  • Accuracy: Class 0.5 (±0.5%)
  • Resistance: 8.33 µΩ (0.00000833 Ω)
  • Full-Scale Voltage Drop: 50 mV

Power Dissipation & Heat Management: At high currents, the shunt generates substantial heat and must be installed in an area with adequate airflow.

  • Power Dissipation at 1000A: 8.3 W
  • Power Dissipation at 3000A: 75 W
  • Power Dissipation at 6000A: 300 W

Mechanical Specifications

  • Dimensions (L x W x H): 168 × 110 × 48.6 mm
  • Weight: Approximately 5.1 kg
  • Main Terminals: 5 × M10 heavy-current connection points
  • Sense Terminals: 2 × M4 screws
  • Hardware Included: Six M10 × 70 mm studs
  • Mounting: Four additional M10 × 15 mm threaded mounting holes
  • Construction: Precision manganin resistive element with heavy solid copper terminal blocks

Key Features

  • 5×M10 Terminal Design: Features multiple heavy-duty connection points to support parallel battery cables and direct busbar mounting, which reduces connection resistance and cable stacking.
  • Precision Calibration: Factory laser-trimmed to ensure Class 0.5 accuracy for critical battery management.
  • Low Voltage Loss: The extremely low resistance of 8.33 µΩ minimizes power loss even when carrying thousands of amps.

Compatibility & Equipment

  • Compatible Monitors: Designed for use with Victron battery monitors that support external 50 mV shunts, such as the BMV-700, BMV-702, and BMV-712 Smart.
  • Important Note: This is supplied as a bare precision shunt. The monitoring electronics or connection PCB are not included and must be transferred from a standard BMV shunt if being used as an upgrade.

Typical Applications

  • Utility-scale battery energy storage systems (BESS)
  • Grid-support and large-scale off-grid power installations
  • Large marine propulsion systems
  • Mining and heavy industrial DC distribution
  • Data center and telecom DC power plants

Power Capability Examples (at 6000A)

  • 12V Systems: 72 kW
  • 24V Systems: 144 kW
  • 48V Systems: 288 kW
  • 96V Systems: 576 kW

Warranty

  • Manufacturer Warranty: 5 Years
