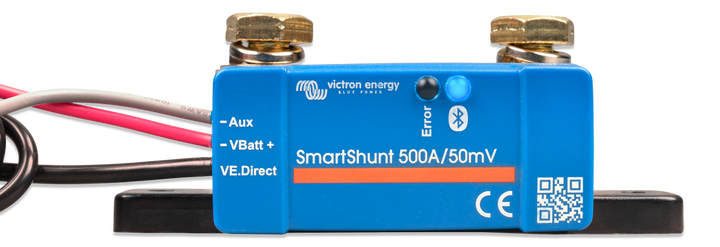

Victron SmartShunt 500A/50mV IP65

This Victron SmartShunt 500A/50 mV IP65 is a waterproof, display-less battery monitor. Use Bluetooth or GX interface to view state of charge, current, voltage and history via VictronConnect.

Integrated Bluetooth Monitoring Water-resistant IP65 Enclosure All-in-One Design (shunt + monitor) Auxiliary Port (2nd battery / temperature) Minimal Wiring & Clutter Dimensions: 46 x 120 x 54mm Weight: 0.4kg
£156.00 £111.00 SAVE £45.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SHU065150050
IN STOCK
Receive between -
Product Details

The Victron SmartShunt 500A/50 mV IP65 (SKU: SHU065150050) is an all-in-one battery monitor, integrating a shunt and monitoring electronics into a single unit.

It connects via Bluetooth to the VictronConnect app (or via VE.Direct to a GX device) to display charge status, historical data, time to go, voltage, current and more.

The SmartShunt IP65 is water-resistant and rugged, making it suitable for harsher installations.

It also offers an auxiliary input, which can be used to monitor a second battery, battery midpoint, or a temperature sensor.

Product Specifications

Performance & Electrical Specifications

  • Supply Voltage Range: 6.5 – 70 VDC
  • Current Draw: < 1 mA
  • Input Voltage Range (Auxiliary Battery): 6.5 – 70 VDC
  • Battery Capacity Range: 1 – 9999 Ah
  • Operating Temperature Range: -40 to +50 °C (-40 to 120 °F)
  • Auxiliary Input: Capable of measuring a second battery (starter battery), temperature (optional sensor required), or midpoint deviation.

Resolution & Accuracy

  • Current Resolution: ± 0.01 A
  • Voltage Resolution: ± 0.01 V
  • Amp Hours Resolution: ± 0.1 Ah
  • State of Charge (0 – 100%): ± 0.1 %
  • Time to Go Resolution: ± 1 min
  • Current Measurement Accuracy: ± 0.4 %
  • Voltage Measurement Accuracy: ± 0.3 %
  • Current Offset: Less than 10 mA

Connectivity & Data Logging

  • Bluetooth Smart: Integrated for wireless connection to the VictronConnect app (typical range 10-15 meters).
  • VE.Direct Port: Supports a wired connection to GX devices (such as Cerbo GX) or a PC.
  • Stored Trends: Tracks and stores 46 days of data for battery voltage, current, state of charge, and auxiliary input parameters (temperature, midpoint, or starter battery voltage).
  • Temperature Measurement Range: -20 to +50 °C (requires optional temperature sensor).

Mechanical Specifications

  • Dimensions (h x w x d): 46 x 120 x 54 mm
  • Shunt Connection Bolts: M10 (0.3937 inch)
  • Protection Category: IP65 (Water resistant)
  • Design: The shunt is permanently attached to the battery monitor unit.

Included Accessories

  • Power Cables: Two 1.5 m cables with 1 A inline fuses for the '+' connection and the auxiliary battery/midpoint connection.
  • VE.Direct Cable: 1.5 m cable with a VE.Direct socket (Note: a standard VE.Direct cable is required to connect to a GX device).

Standards & Compliance

  • Safety: EN 60335-1
  • Emission / Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
  • Automotive: EN 50498
