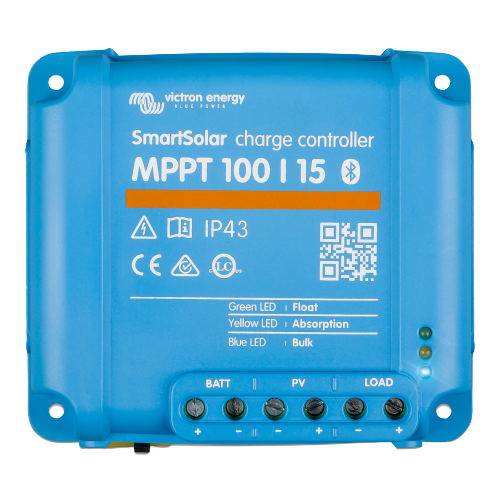

Victron MPPT 100/15 – SmartSolar Charge Controller

The Victron MPPT 100/15 SmartSolar Charge Controller is designed to efficiently convert solar energy into usable power for your 12V, 24V, or 48V battery systems. With a maximum charging current of 15A and advanced MPPT technology, it ensures optimal battery charging and longevity. The built-in Bluetooth feature allows for easy monitoring and configuration via the VictronConnect app.

Efficient MPPT Technology: Ensures maximum energy harvest from your solar panels. Versatile Battery Compatibility: Supports 12V, 24V, and 48V battery systems. Bluetooth Connectivity: Monitor and configure settings via the VictronConnect app. Intelligent Battery Management: Features adaptive charging algorithms to prolong battery life. Compact and Durable Design: Built to withstand harsh environmental conditions. Dimensions: 100 x 113 x 50mm Weight: 0.6kg
£148.80 £69.95 SAVE £78.85
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC110015060R
AVAILABLE IN 7-10 DAYS
Product Details

Efficient Solar Power Harvesting:

The Victron MPPT 100/15 SmartSolar charge controller optimally harvests power from solar panels, intelligently charging your leisure batteries and preventing overcharging for enhanced battery protection.

SmartSolar Functionality for Control:

Benefit from SmartSolar functionality, enabling wireless connectivity to the Victron Connect app via Bluetooth. Adjust settings and monitor performance conveniently over time for a seamlessly controlled solar charging experience.

Fast and Intelligent Charging Technology:

Using the latest MPPT technology, the charge controller maximizes solar energy harvest, achieving a full charge in the shortest possible time. It also maintains battery health, extending overall battery life. The MPPT 100/15 model handles a maximum input voltage of 100V and a maximum input current of 15A.

MPPT Technology Advantage:

MPPT technology constantly monitors solar panel voltage and current output, efficiently extracting maximum power even in partially clouded or changing light conditions. Recommended for applications like campervans, boats, and off-grid tiny houses due to superior efficiency compared to PWM charge controllers.

Intelligent Load Output and Battery Maintenance:

The intelligent load output function prevents battery damage from excessive draining, with configurable voltage settings. The innovative BatteryLife feature ensures a 100% recharge attempt daily, adjusting disconnect voltage during poor weather to maintain battery health and extend its lifespan.

Convenient Connection Points:

Equipped with Tr screw terminal connection points, the charge controller simplifies the connection process. Strip input and output wires and fix them securely to the screwed terminal for a reliable and user-friendly setup.
Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24 V (Auto Select)
  • Rated Charge Current: 15 A
  • Maximum PV Open Circuit Voltage: 100 V
  • Max. PV Short Circuit Current: 15 A
  • Peak Efficiency: 98%
  • Self-Consumption (Load On): 12 V: 26 mA / 24 V: 20 mA
  • Self-Consumption (Load Off): 12 V: 10 mA / 24 V: 8 mA
  • Nominal PV Power (12 V): 220 W
  • Nominal PV Power (24 V): 440 W

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (Programmable)
  • Absorption Voltage (Default): 14.4 V / 28.8 V (Adjustable)
  • Float Voltage (Default): 13.8 V / 27.6 V (Adjustable)
  • Temperature Compensation: -16 mV / °C (12 V) / -32 mV / °C (24 V)
  • Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts and can reconnect to fully discharged Li-ion batteries with integrated disconnect functions.

Load Output Specifications

  • Max. Continuous Load Current: 15 A
  • Low Voltage Load Disconnect: 11.1 V / 22.2 V or 11.8 V / 23.6 V or Battery Life algorithm
  • Low Voltage Load Reconnect: 13.1 V / 26.2 V or 14 V / 28 V or Battery Life algorithm
  • Protection: Output short circuit and over-temperature protection.

Mechanical & Enclosure

  • Dimensions (H x W x D): 100 x 113 x 50 mm
  • Weight: 0.6 kg
  • Power Terminals: 6 mm² / AWG10
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Enclosure Color: Blue (RAL 5012)

Features & Connectivity

  • Bluetooth Smart Built-in: Wireless solution to set up, monitor, update, and synchronize SmartSolar Charge Controllers.
  • VE.Direct Port: For a wired data connection to GX products (e.g., Cerbo GX), PCs, or other devices.
  • Battery Life Management: Intelligent algorithm that monitors the state of charge and, if needed, adjusts load disconnect levels daily to ensure a nearly 100% recharge is achieved weekly.
  • Internal Temperature Sensor: Automatically compensates absorption and float charge voltages for temperature.
  • Optional External Sensing: Supports Smart Battery Sense or a BMV-712 Smart Battery Monitor via Bluetooth for precise battery voltage and temperature communication.
  • Stored Trends: Stores up to 46 days of historical data, including battery voltage, current, temperature, load output current, PV voltage, and PV current.

Environmental & Standards

  • Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron MPPT 100/15 – SmartSolar Charge Controller - Manual
Victron MPPT 100/15 – SmartSolar Charge Controller - Data Sheet
