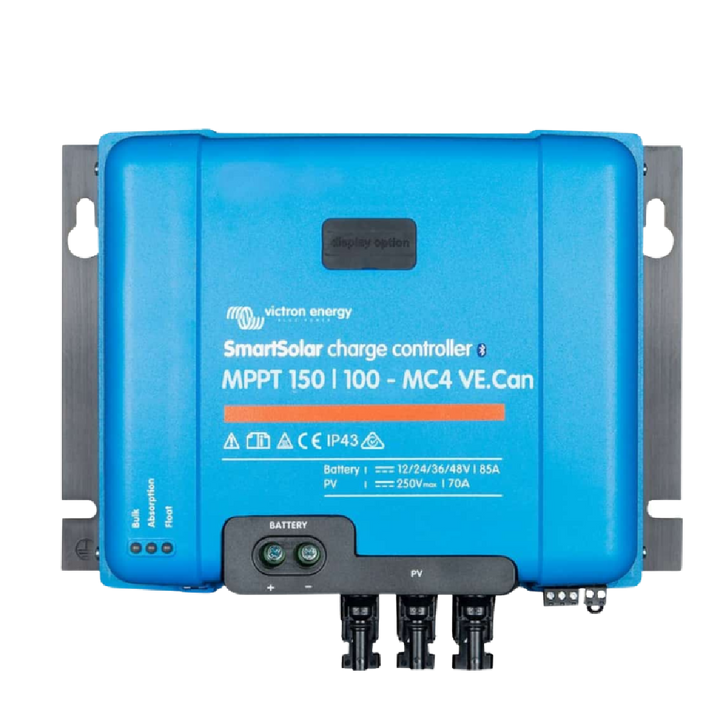

Victron SmartSolar MPPT 150/100-MC4 VE.Can

High-efficiency solar charge controller with VE.Can interface, supporting 12V, 24V, and 48V batteries. Features ultra-fast MPPT, SafetyShield+ protection, and remote management capabilities.

Exceptional Efficiency: Achieves over 98% peak efficiency, ensuring maximum energy harvest from your solar panels. Versatile Battery Compatibility: Automatically adjusts to 12V, 24V, or 48V battery systems, offering flexibility for various setups. Advanced Protection Features: Equipped with SafetyShield+ to protect against over-temperature, short circuits, and reverse polarity. Scalable System Integration: VE.Can interface allows up to 25 units to be synchronised for large-scale installations. Remote Monitoring and Control: Programmable relay and remote on/off control provide enhanced system management and automation. Dimensions: 246 x 295 x 103mm Weight: 4.5kg
£525.00 £430.00 SAVE £95.00
This product is on clearance/reduced pricing.
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC115110511
IN STOCK
Receive between -
Product Details

The Victron SmartSolar MPPT 150/100-MC4 VE.Can (Model: SCC115110511) is a high-performance solar charge controller designed to optimise energy harvest from your solar panels while safeguarding your battery system. With its advanced Maximum Power Point Tracking (MPPT) technology, it ensures efficient charging even under challenging conditions such as partial shading or fluctuating light.

Key Features:

  • Ultra-Fast MPPT Technology: Achieves peak efficiency exceeding 98%, outperforming traditional PWM controllers and slower MPPT models.
  • Dual Battery Voltage Support: Automatically detects and adjusts to 12V, 24V, or 48V battery systems, simplifying installation and compatibility.
  • VE.Can Communication Interface: Facilitates integration into larger systems, allowing up to 25 units to be synchronised for coordinated charging and monitoring.
  • SafetyShield+ Protection: Includes over-temperature protection, PV short circuit, reverse polarity, and reverse current safeguards to ensure system reliability.
  • Programmable Relay and Remote On/Off Control: Enables automated load management and remote operation, enhancing system flexibility.

Ideal for off-grid solar installations, marine applications, and remote power systems, the SmartSolar MPPT 150/100-MC4 VE.Can offers robust performance and intelligent energy management.

Product Specifications

Technical Specifications

Combined for SKUs: SCC115110511

Bluetooth: Yes

Charge Algorithm: Multi-stage adaptive (adjustable)

Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)

Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)

Colour: Blue (RAL 5012)

Data Communication: VE.Direct,VE.Can,Bluetooth

Data Retention Period: 46 d

Data Stored: Battery voltage,Battery current,Battery temperature,PV voltage,PV current

Depth: 103 mm

Environmental Condition: Indoor, unconditioned

Height: 246 mm

Max Altitude: 5,000

Max Efficiency: 98 %

Max Humidity: 95 %

Max PVCurrent Per Mc4: 30 A

Max PVOpen Circuit Voltage: 150 V

Max PVShort Circuit Current: 70 A

Nominal PVpower12V: 1,450 W

Nominal PVpower24V: 2,900 W

Nominal PVpower36V: 4,350 W

Nominal PVpower48V: 5,800 W

Number Of Sync Parallel Operating Units: 25

Number Of Sync Parallel Operating Units BT: 10

Number Of Trackers: 1

P VConnection Terminal Type: MC4 connectors (two pairs)

Pollution Degree: PD3

Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC

Protection Category: IP22 (connection area),IP43 (electronic components)

Protections: Output short-circuit,Excessive temperature,PV reverse polarity

Rated Charge Current: 100 A

Relay Terminal Connection1: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote On Off Terminal Connection: Screw terminal two pole

Safety: CSA C22.2,EN-IEC 62109-1,UL 1741

Self Consumption: Less than 35mA @ 12V / 20mA @ 48V

Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

Temperature Sensor: Optional (Smart Battery Sense)

Weight: 4.5 kg

Width: 295 mm

Source: Victron


Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £150.
  • £5.99 for orders under £150.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Polic

Datasheets
Victron SmartSolar MPPT 150/100-MC4 VE.Can - Manual
Victron SmartSolar MPPT 150/100-MC4 VE.Can - Data Sheet
