Victron SmartSolar MPPT 150/70-MC4 VE.Can

The Victron SmartSolar MPPT 150/70-MC4 VE.Can is a 70A solar charge controller designed for 48V battery systems. It features MC4 connectors for easy solar panel connections and VE.Can communication for integration with Victron's monitoring systems.

High Efficiency Advanced MPPT Algorithm Built-in Communication Flexible Battery Compatibility Comprehensive Safety Features Dimensions: 215 x 250 x 95mm Weight: 3kg
£260.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC115070511
AVAILABLE IN 7-10 DAYS
Product Details

The Victron SmartSolar MPPT 150/70-MC4 VE.Can is engineered to optimise the charging of 48V battery systems using solar energy. With a maximum input voltage of 150V and a charge current of 70A, it ensures efficient energy conversion and battery care.

Key Features:

  • High Efficiency: Maximum efficiency exceeds 98%.
  • Advanced MPPT Algorithm: Ultra-fast Maximum Power Point Tracking, especially effective in varying light conditions.
  • Built-in Communication: VE.Can interface for integration with Victron's monitoring systems.
  • Flexible Battery Compatibility: Suitable for various battery types including lithium, AGM, gel, and flooded batteries.
  • Safety Features: Includes over-temperature protection, PV short circuit, and reverse polarity protection.
Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
  • Rated Charge Current: 70 A
  • Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 50 A (Maximum 30 A per MC4 connector)
  • Maximum Efficiency: 98%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
  • Nominal PV Power (12 V): 1000 W
  • Nominal PV Power (24 V): 2000 W
  • Nominal PV Power (36 V): 3000 W
  • Nominal PV Power (48 V): 4000 W

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C

Mechanical & Enclosure

  • PV Terminals: Two pairs of MC4 connectors
  • Battery Terminals: 35 mm² / AWG2
  • Dimensions (H x W x D): 215 x 250 x 95 mm
  • Weight: 3 kg
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Color: Blue (RAL 5012)

Connectivity & Features

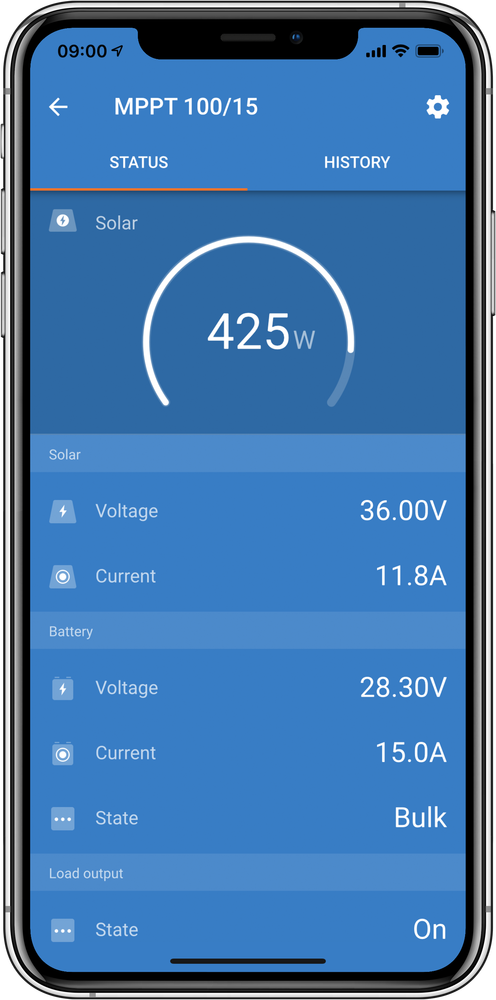

  • Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
  • Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
  • Remote On/Off: Yes (2-pole connector)
  • Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)

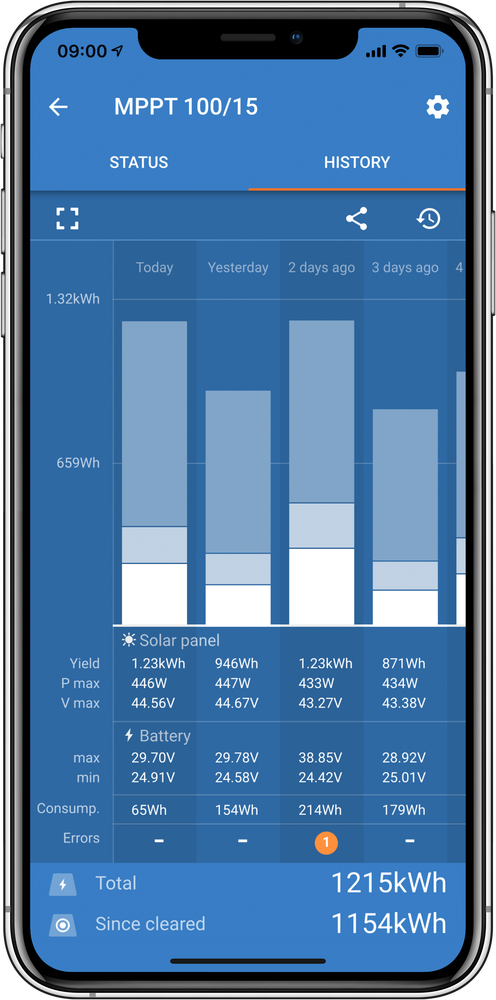

  • Data Storage: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current
  • Optional Display: SmartSolar pluggable LCD display (not included)

Environmental & Standards

  • Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Maximum Altitude: 5000m (Full rated output up to 2000m)
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
