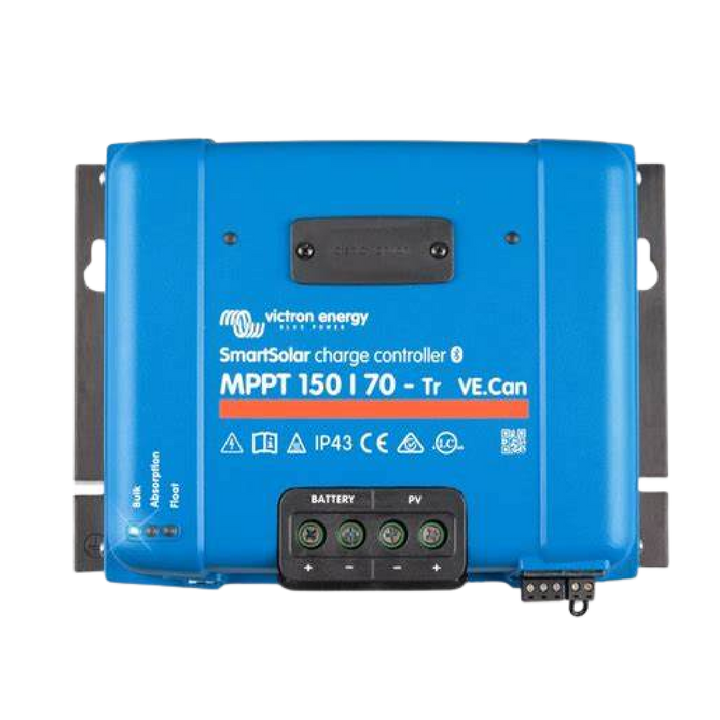

Victron MPPT 150/70 – SmartSolar Charge Controller – Tr VE.Can

The Victron SmartSolar MPPT 150/70-Tr VE.Can is a high-efficiency 70A solar charge controller for 12/24/48V battery systems. It features ultra-fast MPPT for maximum energy harvest, built-in Bluetooth Smart for app control (VictronConnect), and VE.Can connectivity for system synchronisation and remote monitoring.

Maximum Energy Yield: Ultra-fast MPPT technology boosts energy harvest by up to 30% in changing weather conditions and detects the optimum MPP even with partial shading. Universal Battery Care: Compatible with 12V, 24V, and 48V systems, featuring an adaptive multi-stage charge algorithm for all battery types, including Li-ion and deeply discharged lead-acid. App & Remote Control: Built-in Bluetooth Smart allows for wireless setup, monitoring, and updates using the user-friendly VictronConnect smartphone app. Scalable System Integration: VE.Can and VE.Direct ports enable seamless integration, data communication, and synchronised charging of up to 25 units in larger solar arrays. High Efficiency & Silent: Exceeds 98% maximum conversion efficiency with fanless, natural cooling, ensuring reliable performance and quiet operation. Dimensions: 185 x 250 x 95mm Weight: 3kg
£724.80 £372.60 SAVE £352.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC115070411
AVAILABLE IN 7-10 DAYS
Product Details

Take control of your solar power system with the Victron Energy SmartSolar MPPT 150/70-Tr VE.Can Charge Controller (SCC115070411).

Designed for demanding off-grid, marine, and RV applications, this intelligent unit is the essential link between your solar panels and your battery bank. It ensures you capture the maximum possible energy, regardless of weather conditions, guaranteeing a powerful and reliable system for your home, boat, or recreational vehicle.

Ultra-Fast MPPT Technology for Superior Harvest

The heart of this controller is its "Ultra-fast Maximum Power Point Tracking" technology. Unlike older, slower solar regulators, the SmartSolar 150/70 constantly sweeps the power-voltage curve of your solar array with incredible speed. This is most noticeable under cloudy skies or when light intensity is rapidly changing, where it can improve your energy harvest by up to 30% compared to a basic PWM controller. Furthermore, Victron’s innovative SmartSolar algorithm features advanced Maximum Power Point Detection to ensure peak efficiency even when your panels are partially shaded. Maximum efficiency exceeds an outstanding 98%, achieved without any cooling fan.

The Smartest Way to Charge Your Batteries

The SmartSolar 150/70-Tr is compatible with 12V, 24V, and 48V battery systems (with 36V selectable manually), making it incredibly versatile. It protects and extends the life of your batteries using a fully programmable, multi-stage adaptive charge algorithm. This intelligent system automatically switches between bulk, absorption, and float stages, optimising charging for all battery types, including Lithium, AGM, Gel, and Flooded. It even features a recovery function that can initiate charging on severely depleted batteries, even those discharged to zero volts (provided they are not permanently damaged).

Seamless Connectivity and Monitoring

With built-in Bluetooth Smart, setting up and monitoring your system is simple using the free VictronConnect app on your smartphone or tablet. View real-time data, historical performance, and adjust settings wirelessly. For larger or more complex installations, the inclusion of both VE.Can and VE.Direct communication ports allows for multi-unit synchronisation (up to 25 units via VE.Can) and connection to a Victron GX device for remote monitoring via the VRM Portal.

Built to Last and Simple to Install

The unit is encased in a robust enclosure with IP43 protection for the electronic components and features screw terminal ('Tr') connections for the PV cable, ensuring a secure installation.

Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
  • Rated Charge Current: 70 A
  • Nominal PV Power (12 V): 1000 W
  • Nominal PV Power (24 V): 2000 W
  • Nominal PV Power (36 V): 3000 W
  • Nominal PV Power (48 V): 4000 W
  • Maximum PV Open Circuit Voltage: 150 V (absolute maximum coldest conditions), 145 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 50 A
  • Maximum Efficiency: 98%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
  • Battery Recovery: Fully discharged battery recovery function can initiate charging even if the battery has been discharged to zero volts.

Connectivity & Features

  • Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
  • Parallel Operation: Synchronized charging with up to 25 units via VE.Can or 10 units via Bluetooth
  • Remote On/Off: Yes (2-pole connector)
  • Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)
  • Advanced Tracking: Innovative algorithm maximizes harvest in partial shading conditions by locking to the optimum maximum power point.
  • Data Storage: Stores up to 46 days of historical trend data for battery voltage, current, temperature, PV voltage, and PV current.
  • Optional Display: Compatible with the SmartSolar pluggable LCD display (not included).

Mechanical & Enclosure

  • PV Terminals: 35 mm² / AWG2 (Tr screw terminals)
  • Battery Terminals: 35 mm² / AWG2
  • Dimensions (H x W x D): 185 x 250 x 95 mm
  • Weight: 3 kg
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Color: Blue (RAL 5012)

Environmental & Standards

  • Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Maximum Altitude: 5000m (Full rated output up to 2000m)
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
  • Electronic Protection: PV reverse polarity, output short circuit, and over-temperature protection.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron MPPT 150/70 – SmartSolar Charge Controller – Tr VE.Can - Manual
Victron MPPT 150/70 – SmartSolar Charge Controller – Tr VE.Can - Data Sheet
