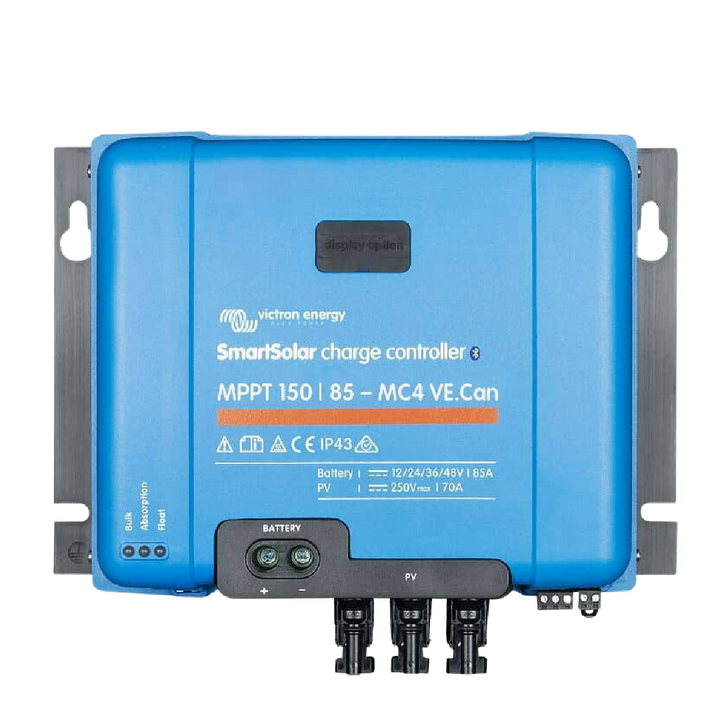

Victron SmartSolar MPPT 150/85-MC4 VE.Can

£810.00 £415.80 SAVE £394.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC115085511
AVAILABLE IN 7-10 DAYS
Product Details

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

Models:12/24/36/48 Volt

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.

12/24/36/48 Volt





UD11-23

Product Specifications

Technical Specifications

Combined for SKUs: SCC115085511

Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)

Bluetooth: Yes

Charge Algorithm: Multi-stage adaptive (adjustable)

Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)

Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)

Colour: Blue (RAL 5012)

Data Communication: VE.Direct,VE.Can,Bluetooth

Data Retention Period: 46 d

Data Stored: Battery voltage,Battery current,Battery temperature,PV voltage,PV current

Depth: 103 mm

Environmental Condition: Indoor, unconditioned

Height: 246 mm

Max Altitude: 5,000

Max Efficiency: 98 %

Max Humidity: 95 %

Max PVCurrent Per Mc4: 30 A

Max PVOpen Circuit Voltage: 150 V

Max PVShort Circuit Current: 70 A

Nominal PVpower12V: 1,200 W

Nominal PVpower24V: 2,400 W

Nominal PVpower36V: 3,600 W

Nominal PVpower48V: 4,900 W

Number Of Sync Parallel Operating Units: 25

Number Of Sync Parallel Operating Units BT: 10

Number Of Trackers: 1

P VConnection Terminal Type: MC4 connectors (two pairs)

Pollution Degree: PD3

Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC

Protection Category: IP22 (connection area),IP43 (electronic components)

Protections: Output short-circuit,Excessive temperature,PV reverse polarity

Rated Charge Current: 85 A

Relay Terminal Connection1: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote On Off Terminal Connection: Screw terminal two pole

Safety: EN-IEC 62109-1,CSA C22.2,UL 1741

Self Consumption: Less than 35mA @ 12V / 20mA @ 48V

Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

Temperature Sensor: Optional (Smart Battery Sense)

Weight: 4.5 kg

Width: 295 mm

Source: Victron
