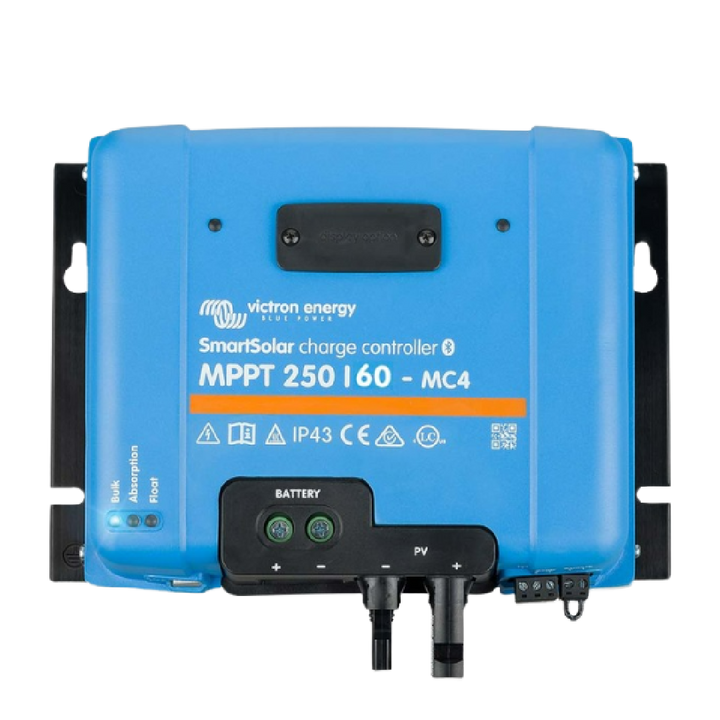

Victron MPPT 250/60 – SmartSolar Charge Controller – MC4

The Victron MPPT 250/60 – SmartSolar Charge Controller – MC4 efficiently manages solar energy, featuring ultra-fast MPPT, Bluetooth connectivity, and high conversion efficiency.

High Conversion Efficiency: Achieves over 99% efficiency, ensuring minimal energy loss during charging. Versatile Battery Compatibility: Supports 12V, 24V, and 48V battery systems, offering flexibility for various setups. Bluetooth Connectivity: Allows for easy setup, monitoring, and firmware updates via the VictronConnect app. Robust Design: Features natural convection cooling and an IP43-rated enclosure for reliable operation in diverse environments. Optimised Energy Harvesting: Utilises ultra-fast MPPT to maximise energy capture, even under challenging conditions. Dimensions: 215 x 250 x 95mm Weight: 3kg
£724.80 £372.60 SAVE £352.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC125060321
IN STOCK
Receive between -
Product Details

The Victron MPPT 250/60 – SmartSolar Charge Controller – MC4 is a high-performance solar charge controller designed to optimise the energy harvested from your solar panels and efficiently charge your leisure batteries. With a maximum battery current of 60A and compatibility with 12V, 24V, and 48V battery systems, it offers flexibility for various setups.

This controller features ultra-fast Maximum Power Point Tracking (MPPT), ensuring maximum energy harvest even under challenging conditions like partial shading or rapidly changing light. Its high conversion efficiency of over 99% guarantees minimal energy loss during the charging process.

Built-in Bluetooth connectivity allows for easy setup, monitoring, and firmware updates via the VictronConnect app. This wireless functionality simplifies the management of your solar power system, providing real-time data and control at your fingertips.

The controller's robust design includes natural convection cooling and protection against over-temperature conditions, ensuring reliable operation in various environmental settings. Its IP43-rated enclosure provides protection against dust and water ingress, making it suitable for both indoor and outdoor installations.

Whether you're outfitting a camper van, boat, or off-grid cabin, the Victron MPPT 250/60 – SmartSolar Charge Controller – MC4 offers a reliable and efficient solution for managing your solar energy needs.

Product Specifications

Electrical Specifications

  • Battery Voltage: 12 / 24 / 48 V Auto Select (36V requires software tool)
  • Rated Charge Current: 60 A
  • Nominal PV Power (12V): 860 W
  • Nominal PV Power (24V): 1720 W
  • Nominal PV Power (36V): 2580 W
  • Nominal PV Power (48V): 3440 W
  • Maximum PV Open Circuit Voltage: 250 V absolute maximum coldest conditions / 245 V start-up and operating maximum
  • Maximum PV Short Circuit Current: 35 A (Maximum 30 A per MC4 connection)
  • Maximum Efficiency: 99%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V

Charging & Algorithms

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Charge Voltage 'Absorption' (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Charge Voltage 'Float' (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Charge Voltage 'Equalization' (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 / -32 / -64 mV/°C
  • Sensing: Internal temperature sensor included; optional external battery sensing via Bluetooth (Smart Battery Sense, BMV-712, or SmartShunt)

Protection & Environmental

  • Integrated Protections: PV reverse polarity, output short circuit, and over-temperature (with power derating).
  • Operating Temperature Range: -30°C to +60°C (Full rated output up to 40°C)
  • Humidity: 95%, non-condensing
  • Maximum Altitude: 5000 m (Full rated output up to 2000 m)
  • Environmental Condition: Indoor, unconditioned (Pollution degree PD3)

Features & Connectivity

  • Bluetooth Smart: Built-in for wireless setup, monitoring, and synchronized parallel charging (up to 10 units).
  • VE.Direct Port: For wired data connection to GX products, PC, or other devices.
  • Remote On-Off: Yes (2-pole connector)
  • Programmable Relay: DPST; AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC.
  • Fully Discharged Recovery: Initiates charging even if the battery is at zero volts.

Mechanical Specifications

  • Dimensions (H x W x D): 215 x 250 x 95 mm
  • Weight: 3 kg
  • Enclosure Colour: Blue (RAL 5012)
  • PV Terminals: Two pairs of MC4 connectors
  • Battery Terminals: 35 mm² / AWG2
  • Protection Category: IP43 (electronic components), IP22 (connection area)

Standards & Data Logging

  • Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
  • Stored Trends: 46 days of data storage including battery voltage, current, temperature, load output current, PV voltage, and PV current.
