Victron MPPT 250/70 – SmartSolar Charge Controller – Tr VE.Can

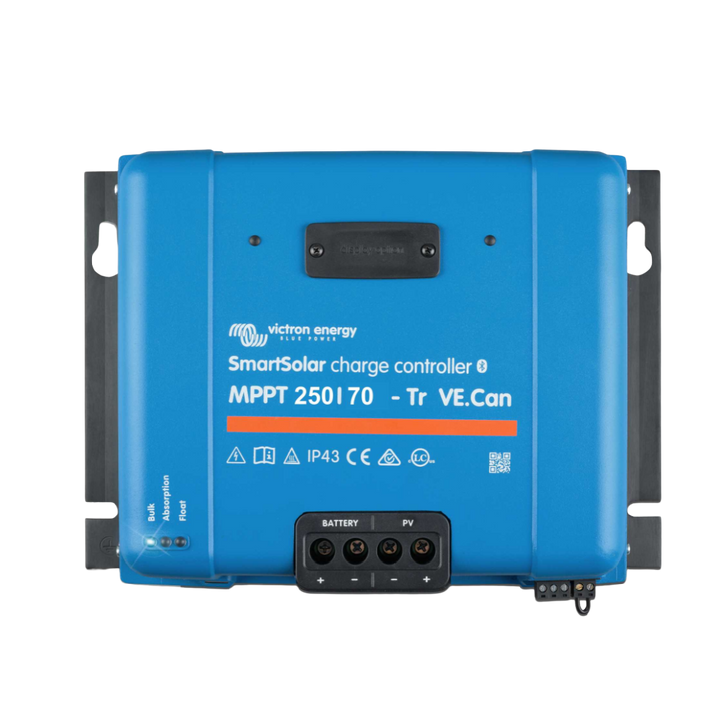

The Victron SmartSolar MPPT 250/70 VE.Can is a high performance 70 A solar charge controller supporting 12 V, 24 V and 48 V systems. It features Bluetooth, VE.Can synchronisation, ultra-fast MPPT, and advanced protection for efficient and reliable solar charging.

250V maximum voltage from the solar array. 70A maximum current from the solar array. For 12V and 24V systems. Revive completely "dead" batteries. MPPT optimised for efficient solar charging. Monitor performance and settings remotely with built in Bluetooth. Tr screw terminal connection points. Dimensions: 185 x 250 x 95 mm Weight: 3kg
£509.00 £343.00 SAVE £166.00
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: SCC125070421
AVAILABLE IN 7-10 DAYS
Product Details
The Victron SmartSolar MPPT 250/70 VE.Can is designed for medium to large solar installations that demand high performance, advanced connectivity, and system scalability. It automatically recognises 12 V, 24 V or 48 V battery banks and supports high PV input voltages up to 250 V (absolute maximum).

Efficient Solar Power Harvesting:
The Victron MPPT 250/70 SmartSolar charge controller optimally harvests power from solar panels, intelligently charging your leisure batteries and preventing overcharging for enhanced battery protection.

SmartSolar Functionality for Control:
Benefit from SmartSolar functionality, enabling wireless connectivity to the Victron Connect app via Bluetooth. Adjust settings and monitor performance conveniently over time for a seamlessly controlled solar charging experience.

Fast and Intelligent Charging Technology:
Using the latest MPPT technology, the charge controller maximizes solar energy harvest, achieving a full charge in the shortest possible time. It also maintains battery health, extending overall battery life. The MPPT 250/70 model handles a maximum input voltage of 250V and a maximum input current of 70A.

MPPT Technology Advantage:
MPPT technology constantly monitors solar panel voltage and current output, efficiently extracting maximum power even in partially clouded or changing light conditions. Recommended for applications like campervans, boats, and off-grid tiny houses due to superior efficiency compared to PWM charge controllers.

Intelligent Load Output and Battery Maintenance:
The intelligent load output function prevents battery damage from excessive draining, with configurable voltage settings. The innovative BatteryLife feature ensures a 100% recharge attempt daily, adjusting disconnect voltage during poor weather to maintain battery health and extend its lifespan.

Convenient Connection Points:
Equipped with Tr screw terminal connection points, the charge controller simplifies the connection process. Strip input and output wires and fix them securely to the screwed terminal for a reliable and user-friendly setup.
Product Specifications

Electrical Specifications

  • Battery Voltage: 12/24/48 V Auto Select (36 V: Manual)
  • Rated Charge Current: 70 A
  • Maximum Efficiency: Greater than 99%
  • Self-Consumption: Less than 35 mA @ 12 V / 20 mA @ 48 V
  • Maximum PV Open Circuit Voltage: 250 V (absolute maximum coldest conditions), 245 V (start-up and operating maximum)
  • Max. PV Short Circuit Current: 35 A
  • Nominal PV Power (12 V): 1000 W
  • Nominal PV Power (24 V): 2000 W
  • Nominal PV Power (36 V): 3000 W
  • Nominal PV Power (48 V): 4000 W

Charge Settings & Algorithm

  • Charge Algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined
  • Absorption Voltage (Default): 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable)
  • Float Voltage (Default): 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable)
  • Equalization Voltage (Default): 16.2 / 32.4 / 48.6 / 64.8 V (Adjustable)
  • Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
  • Battery Recovery Function: Can initiate charging even if the battery has been discharged to zero volts and can reconnect to discharged Li-ion batteries with integrated disconnect functions.

Connectivity & Features

  • Communication Ports: VE.Can, VE.Direct, and Bluetooth Smart built-in
  • Parallel Operation: Synchronized charging with up to 25 units (VE.Can) or 10 units (Bluetooth)
  • Advanced Tracking: Innovative algorithm locks to the optimum maximum power point (MPP) even in cases of partial shading.
  • Remote On/Off: Yes (2-pole connector)
  • Programmable Relay: DPST (AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC)
  • Data Storage: 46-day trend history for battery voltage, current, temperature, PV voltage, and PV current.
  • Optional Display: SmartSolar pluggable LCD display (not included).

Mechanical & Enclosure

  • PV Terminals: 35 mm² / AWG2 (Tr screw terminals)
  • Battery Terminals: 35 mm² / AWG2
  • Dimensions (H x W x D): 185 x 250 x 95 mm
  • Weight: 3 kg
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Color: Blue (RAL 5012)

Environmental & Standards

  • Operating Temperature: -30 to +60 °C (Full rated output up to 40 °C)
  • Humidity: 95%, non-condensing
  • Maximum Altitude: 5000m (Full rated output up to 2000m)
  • Safety Standards: EN/IEC 62109-1, UL 1741, CSA C22.2
  • Electronic Protections: PV reverse polarity, Output short circuit, Over-temperature, and PV reverse current protection.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron MPPT 250/70 – SmartSolar Charge Controller – Tr VE.Can - Manual
Victron MPPT 250/70 – SmartSolar Charge Controller – Tr VE.Can - Data Sheet
