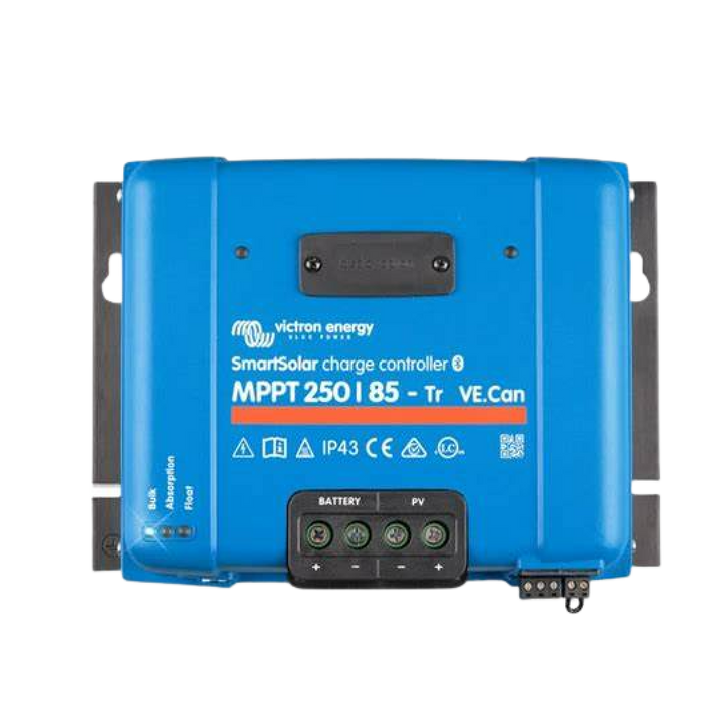

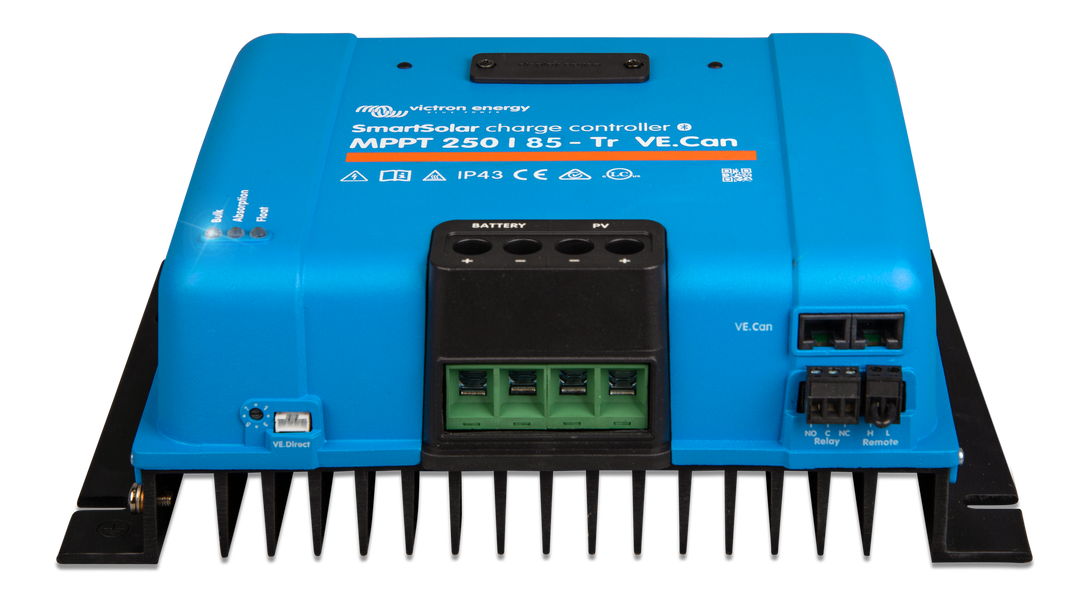

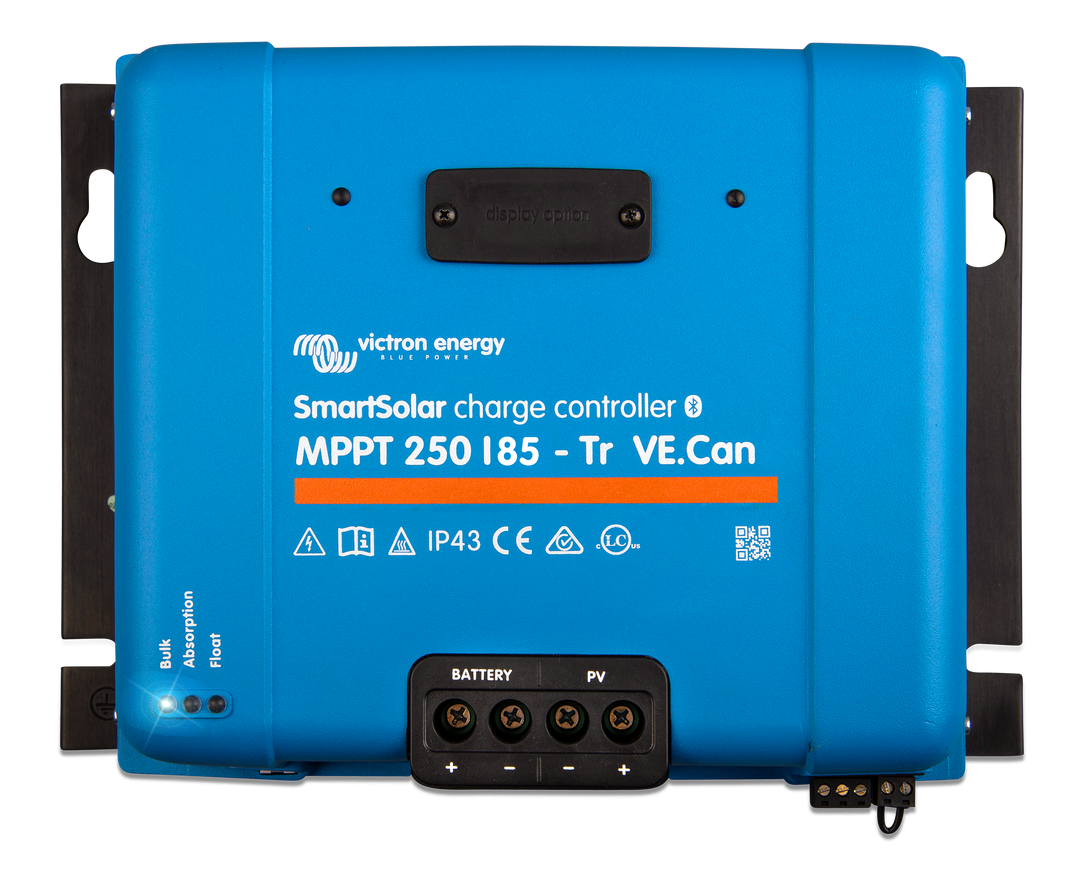

Victron SmartSolar MPPT 250/85-Tr VE. Can

Technical Specifications

Combined for SKUs: SCC125085411

Battery Voltage Auto Select: 12V / 24V / 48V Auto Select (software tool needed to select 36V)

Charge Voltage Absorption: 14.4V / 28.8V / 57.6V (adjustable)

Charge Voltage Float: 13.8V / 27.6V / 55.2V (adjustable)

Colour: Blue (RAL 5012)

Data Communication: VE.Direct,VE.Can,Bluetooth

Data Retention Period: 46 d

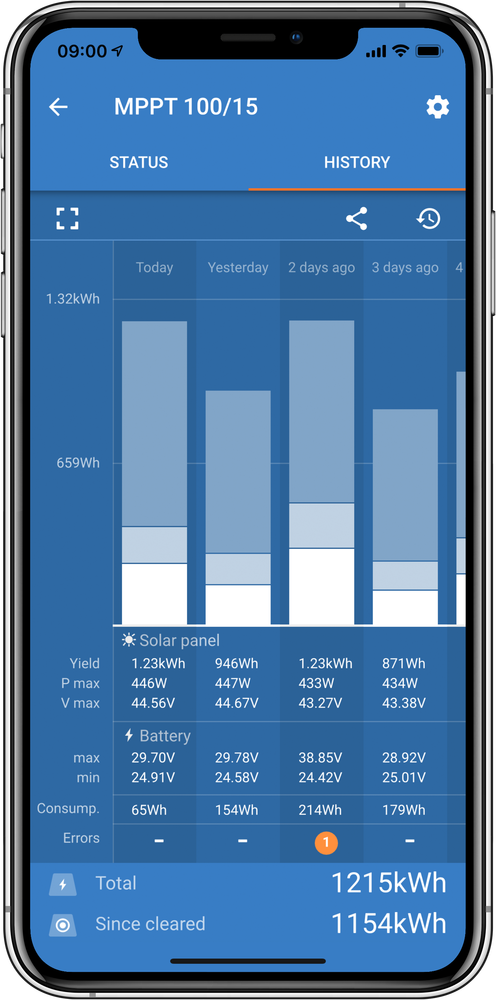

Data Stored: Battery voltage,Battery current,Battery temperature,PV voltage,PV current

Depth: 103 mm

Environmental Condition: Indoor, unconditioned

Height: 216 mm

Max Altitude: 5,000

Max Efficiency: 98 %

Max Humidity: 95 %

Max PVOpen Circuit Voltage: 250 V

Max PVShort Circuit Current: 70 A

Nominal PVpower12V: 1,200 W

Nominal PVpower24V: 2,400 W

Nominal PVpower36V: 3,600 W

Nominal PVpower48V: 4,900 W

Number Of Sync Parallel Operating Units: 25

Number Of Sync Parallel Operating Units BT: 10

Number Of Trackers: 1

Pollution Degree: PD3

Programmable Relay: DPST AC rating: 240VAC / 4A, DC rating: 4A up to 35VDC, 1A up to 60VDC

Protection Category: IP22 (connection area),IP43 (electronic components)

Protections: Output short-circuit,Excessive temperature,PV reverse polarity

Rated Charge Current: 85 A

Relay Terminal Connection1: Screw terminal 3-pole

Remote On Off Terminal: Yes

Remote On Off Terminal Connection: Screw terminal two pole

Safety: CSA C22.2,EN-IEC 62109-1,UL 1741

Self Consumption: Less than 35mA @ 12V / 20mA @ 48V

Start Up PVDCVoltage: The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V

Temperature Sensor: Optional (Smart Battery Sense)

Weight: 4.5 kg

Width: 295 mm

Source: Victron
