Victron SmartSolar Pluggable Display
Live Data Display: see PV, battery, current, voltage etc
Historical Logging: view past 30 days and cumulative yield
On-Device Configuration: change settings without external tools
Hot-swappable: install or remove while controller is running
Compact Size: small footprint, easy to mount
or pay interest-free installments
AVAILABLE IN 7-10 DAYS
Product Details

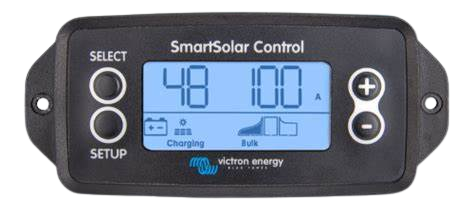

The Victron SmartSolar Pluggable Display is an optional LCD module that fits into the “display port” of compatible Victron SmartSolar MPPT controllers. It lets you instantly view current system parameters (PV voltage, battery voltage and current, power, temperature, charge stage, etc.) as well as historical data for the last 30 days or lifetime totals. It also permits making local configuration changes directly on the controller without needing a PC or Bluetooth interface.
Key Features & Operation:
- Installation: Remove the protective cover from the display port on the front of the MPPT controller, then plug in the display and secure with screws (tape backing optional for temporary use).
- Hot Swappable: The display can be inserted or removed while the MPPT charger is operational (no shutting down needed).
- Display Modes: Shows status, historical data, and settings menus.
- Logging: 30 days of daily data and lifetime (cumulative) statistics.
- Configuration: Allows altering controller settings (voltages, algorithms etc.) locally via the display.
Dimensions & Physical Data:
- Dimensions (W × L × H): 116 mm × 50 mm × 25 mm
- Weight: 66 g
Compatibility & Use Notes:
- Compatible with Victron SmartSolar / BlueSolar MPPT controllers equipped with a display port.
- The display can be used either as a permanent or a temporary monitoring tool.
- For controllers without a display port, a plastic cover usually marks where the display can be added.
