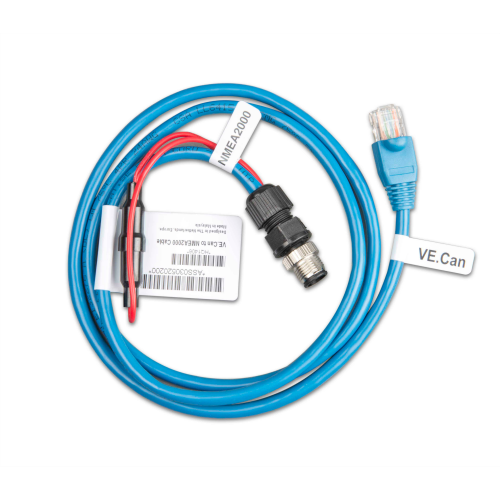

VE.Can to NMEA2000 Micro-C male

£73.50
pay interest-free installments
Klarna
PayPal
OUT OF STOCK

The Victron VE.Can to NMEA2000 Micro-C Male Cable enables seamless integration of Victron devices with VE.Can ports into NMEA 2000 networks, facilitating enhanced monitoring and control.

Seamless Integration Enhanced Compatibility Reliable Data Transmission Easy Installation Durable Construction
Add to Wishlist

UK-wide delivery Free tracked delivery on orders over £250.

Next-day delivery UK-wide option at checkout. Delivery times apply from dispatch.

SKU: ASS030520200
Product Details

The Victron VE.Can to NMEA2000 Micro-C Male Cable (ASS030520200) is designed to connect Victron products equipped with VE.Can ports to NMEA 2000 networks.

This interface cable allows for the transmission of data between Victron devices and compatible marine electronics, enabling comprehensive system monitoring and control.

.
Product Specifications

Technical Specifications

  • SKU / Part Number: ASS030520200
  • Cable Type: VE.Can to NMEA2000 Adapter Cable
  • Connector 1: VE.Can RJ45
  • Connector 2: NMEA2000 Micro-C (Male)
  • Primary Application: Interconnecting NMEA2000 interface modules to VE.Can RJ45 ports and CANUSB adapters

Key Applications & System Compatibility

  • BMV to NMEA2000 Interface Integration: Connects the BMV to NMEA2000 interface (which does not have an RJ45 socket) to a CANUSB adapter or VE.Can network.
  • VE.Bus to NMEA2000 Interface Integration: Connects the VE.Bus to NMEA2000 interface module to standard VE.Can RJ45 ports for system communication.
  • CANUSB Configuration & Firmware Updating: Enables NMEA2000 Micro-C interface devices to link to the CANUSB adapter for PC setup and firmware updates via VE Power Setup software.

System & Network Integration Notes

  • Port Adaptation: Solves physical connection requirements for Victron NMEA2000 products that do not feature onboard RJ45 VE.Can sockets.
  • Network Power Requirement: VE.Can and NMEA2000 networks require at least one powered device present on the bus (such as a Skylla-i charger, BlueSolar MPPT 150/70, or Lynx Shunt VE.Can) to enable data transmission.
  • Bus Termination: Standard VE.Can network rules apply; terminators must be installed at both ends of the VE.Can bus.

Quality & Standards

  • Compliance: Meets official Victron Energy declarations of conformity for network interfaces and cabling
  • Warranty: Backed by Victron Energy’s standard 5-year warranty and global support network
