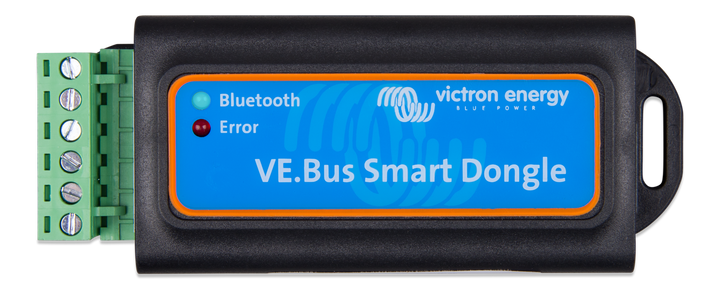

Victron VE.Bus Smart dongle

The Victron VE.Bus Smart Dongle is a Bluetooth accessory designed for Victron inverter/chargers, including Multi, Quattro, and Phoenix VE.Bus models. It allows wireless monitoring and control via the VictronConnect app, enabling users to adjust settings such as input current limit and operational modes (Off, On, Charger-only). Additionally, it provides Instant Readout, displaying key data like battery voltage and temperature without requiring a direct connection to the device.

Wireless Monitoring: Access real-time data from your inverter/charger via Bluetooth. Remote Control: Adjust settings such as input current limit and operational modes using the VictronConnect app. Instant Readout: View key data without a direct connection to the device. Battery Sensing: Measures battery voltage and temperature for optimal charging. Easy Installation: Simple setup with included wiring and connectors. Dimensions: 106 x 22 x 42.5mm Weight: 0.08kg
£111.60 £69.99 SAVE £41.61
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ASS030537010
IN STOCK
Receive between -
Product Details

The Victron VE.Bus Smart Dongle is an essential accessory for users seeking to enhance the functionality of their Victron inverter/chargers. Compatible with Multi, MultiPlus, MultiPlus-II, MultiGrid, MultiGrid-II, Quattro, and Phoenix Inverters featuring a VE.Bus port, this dongle enables wireless communication via Bluetooth.

Using the VictronConnect app, users can monitor real-time data, including battery status, voltage, and temperature. The app also allows for remote control, enabling adjustments to settings such as input current limit and operational modes (Off, On, Charger-only). The Instant Readout feature provides at-a-glance diagnostics, displaying key data without requiring a direct connection to the device.

Installation is straightforward, with the dongle connecting to the inverter/charger via an RJ45 UTP cable (sold separately) and wiring to the battery terminals. The device also measures battery voltage and temperature, ensuring optimal charging and system performance.

Product Specifications

Key Features

  • Integrated Sensing: Features internal temperature measurement capabilities, allowing the dongle itself to be mounted directly on the battery for accurate readings.
  • VE.Smart Networking: Supports VE.Smart Networking, enabling wireless communication of temperature and voltage data between Victron devices to optimize the charging process.
  • VRM Integration: Provides temperature data reporting to the VRM (Victron Remote Management) portal when connected to a system with internet monitoring.
  • External Probe Support: Includes dedicated terminals for connecting an optional external temperature probe if the dongle cannot be mounted directly on the battery.

Technical Specifications

  • Victron Part Number: ASS030537010
  • Supported Products: All VE.Bus devices (including MultiPlus and Quattro inverter/chargers).
  • Communication: Bluetooth Smart.
  • Temperature on VRM: Yes.
  • VE.Smart Networking: Yes.
  • External Probe Compatibility: Requires probe part number ASS000100000 for external sensing.

Installation & Usage

  • Mounting: Can be mounted directly on a battery for internal sensing or remotely if an external probe is used.
  • System Benefit: Specifically engineered to provide sense information that improves the charging efficiency and longevity of the battery bank.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron VE.Bus Smart dongle - Manual
Victron VE.Bus Smart dongle - Data Sheet
