The Victron VE.Direct Cable 10 m provides a secure link between your VE.Direct-enabled devices over extended distances. Ideal for linking battery monitors, charge controllers or a Colour Control GX, this cable helps maintain system monitoring and communication where devices are spaced apart.

10 metre length for flexible positioning of devices Identical connectors at both ends for ease of installation Compatible with Victron VE.Direct devices including BMV, MPPT and GX units Manufactured to Victron’s quality standards for reliable data integrity
Add to Wishlist
Arrives -

UK-wide delivery Free tracked delivery on orders over £250.

Next-day delivery UK-wide option at checkout. Delivery times apply from dispatch.

SKU: ASS030530310
Product Details

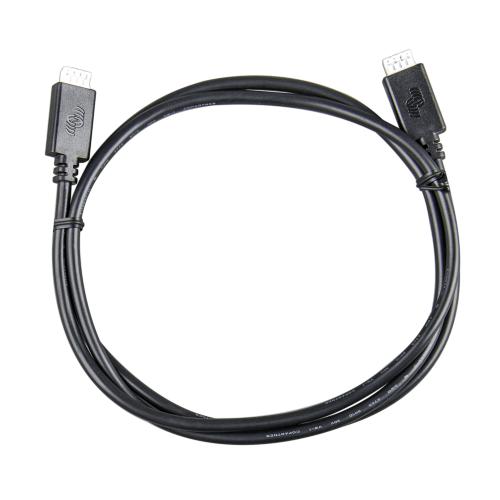

The Victron VE.Direct Cable 10 m is a high-quality communication cable designed to link Victron devices that support the VE.Direct protocol.

With a generous 10-metre length, it offers flexibility in system layouts and ensures clean, clutter-free installations. Both ends use the same connector, making it simple to route between devices without worrying about orientation.

It is part of Victron’s certified cable offerings and is suitable for use with components such as BMV battery monitors, MPPT charge controllers, and the Colour Control GX.

.
Product Specifications

Technical Specifications

  • SKU / Part Number: ASS030530310
  • Cable Length: 10.0 meters (1000 cm)
  • Connector Style: Straight to straight (both ends feature straight connectors, not right-angle)
  • Primary Purpose: Digital data and system communications (carries data, not operating power)
  • Official Product Family: Victron VE.Direct Cable Family
  • Warranty: Backed by Victron Energy’s standard 5-year warranty

Typical Applications & Compatibility Designed to connect compatible VE.Direct-equipped Victron devices to a GX communication center (such as the Cerbo GX, Ekrano GX, or Color Control GX) to expose performance data to the system. Supported hardware includes:

  • SmartSolar and BlueSolar MPPT solar charge controllers
  • BMV-700 Series Battery Monitors and SmartShunt
  • VE.Direct-compatible Phoenix Inverters
  • Peak Power Pack Batteries
  • Orion XS DC-DC Battery Chargers

Supported Data Transmission (by Connected Device) The exact telemetry and configuration data transmitted depends entirely on the specific hardware being connected:

  • From an MPPT Solar Charger: PV voltage, PV current, PV power, battery voltage, charging current, charging state, accumulated solar yield, charger status, historical/operational logs, and configuration settings.
  • From a BMV / SmartShunt Battery Monitor: Battery voltage, current, state of charge, consumed Amp-hours, remaining runtime, instantaneous power, historical data, and active alarm/status notifications.
  • From a VE.Direct Inverter: DC voltage, DC current, output power, inverter state, active alarms, and basic operating information.

Important Installation & Compatibility Notes

  • Straight vs. Right-Angle: This is the straight-connector version. If your installation is in a cramped cabinet or space is highly restricted, you may require the right-angle version (part number ASS030531310) to prevent the cable from sticking straight out from the device port.
  • Not a Generic Cable: VE.Direct is a proprietary digital communications interface. Although the plugs look similar to standard modular telephone or network cables, they are not electrically compatible; standard network or telephone cables must not be used.
  • No Integrated Bluetooth: This is a passive digital cable. It does not add Bluetooth capabilities. To add Bluetooth to compatible older VE.Direct products, you will need the VE.Direct Smart Dongle.
  • Device-to-Device Constraints: Having a VE.Direct port on two devices does not guarantee direct communication between them (for example, connecting an MPPT directly to an inverter with this cable will not allow the devices to exchange system information).
  • Computer Connectivity: To connect a VE.Direct device directly to a PC or laptop for configuration, you must use a dedicated VE.Direct-to-USB Interface (ASS030530010) or VE.Direct-to-USB-C Interface (ASS030530030) rather than this cable.

Quality & Standards

  • Manufacturing Quality: Produced in ISO 9001 certified manufacturing facilities
  • Compliance: Meets official Declarations of Conformity standards for Victron cabling
