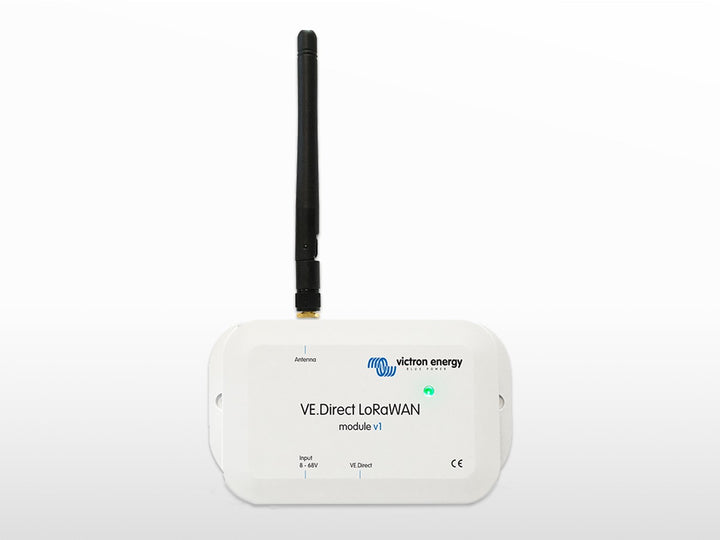

VE.Direct LoRaWAN AU915-928 module - ASS030542010

The Victron Energy VE.Direct LoRaWAN AU915-928 Module enables remote monitoring of Victron equipment by connecting to the Victron Remote Management (VRM) portal via a LoRaWAN gateway.

Remote Monitoring: Connects equipment to the VRM portal. LoRaWAN Connectivity: Utilises LoRaWAN for data transmission. Hourly Data Updates: Sends data every hour. CE Certified: Complies with European safety standards. Easy Integration: Compatible with various Victron devices. Dimensions: 123 x 67 x 23mm Weight: 0.2kg
£105.60 £92.40 SAVE £13.20
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ASS030542010
AVAILABLE IN 7-10 DAYS
Product Details

The Victron Energy VE.Direct LoRaWAN AU915-928 Module is designed to enable remote monitoring of Victron equipment by connecting to the Victron Remote Management (VRM) portal. This module transmits data every hour via a LoRaWAN gateway, providing users with real-time insights into their system's performance.

Key Features

  • Data Transmission: Sends data every hour to the VRM portal.
  • Connectivity: Utilises LoRaWAN for long-range communication.
  • Compatibility: Works with various Victron devices equipped with VE.Direct ports.
  • CE Certification: Meets European safety and environmental standards.
  • Dimensions: Compact design for easy installation.

Applications

Ideal for remote monitoring of Victron systems in off-grid, marine, or industrial applications. The module allows users to keep track of system performance and receive alerts from anywhere.

Product Specifications

Technical Specifications

  • SKU: ASS030542010
  • Radio Frequency: AU915-928 MHz
  • Network Provider: The Things Network (TTN)
  • Input Voltage Range: 8V – 68V DC
  • VE.Direct Cable Length: 1.5 Meters
  • Power Cable Length: 1.5 Meters (with 3A inline fuse and M10 eyelets)
  • Antenna Connector: RPSMA

Current Draw

  • 12V System: 15 mA
  • 24V System: 8.5 mA
  • 48V System: 5.5 mA

Product CompatibilityThis module features a single VE.Direct port and is compatible with:

  • Solar Chargers: All BlueSolar and SmartSolar MPPT models with a VE.Direct port.
  • Battery Monitors: BMV-700 series and BMV-712 Smart series.
  • Inverters: All Phoenix Inverter models featuring a VE.Direct port.
  • Important Note: This module is not compatible with Peak Power Packs or the SmartShunt series.

What’s in the Box?

  • 1 x VE.Direct LoRaWAN AU915-928 module (with integrated 1.5m VE.Direct cable)
  • 1 x RPSMA Antenna
  • 1 x 1.5m Power Cable (with 3A inline fuse and M10 eyelets)
  • 1 x Quick-install guide

Operational Requirements

  • LoRaWAN Coverage: Requires proximity to a "The Things Network" gateway.
  • Registration: The module must be registered on the VRM portal to begin data visualization.
  • Software: Ensure the module is running the latest firmware (v1.05 or later) for optimal transmission reliability.
