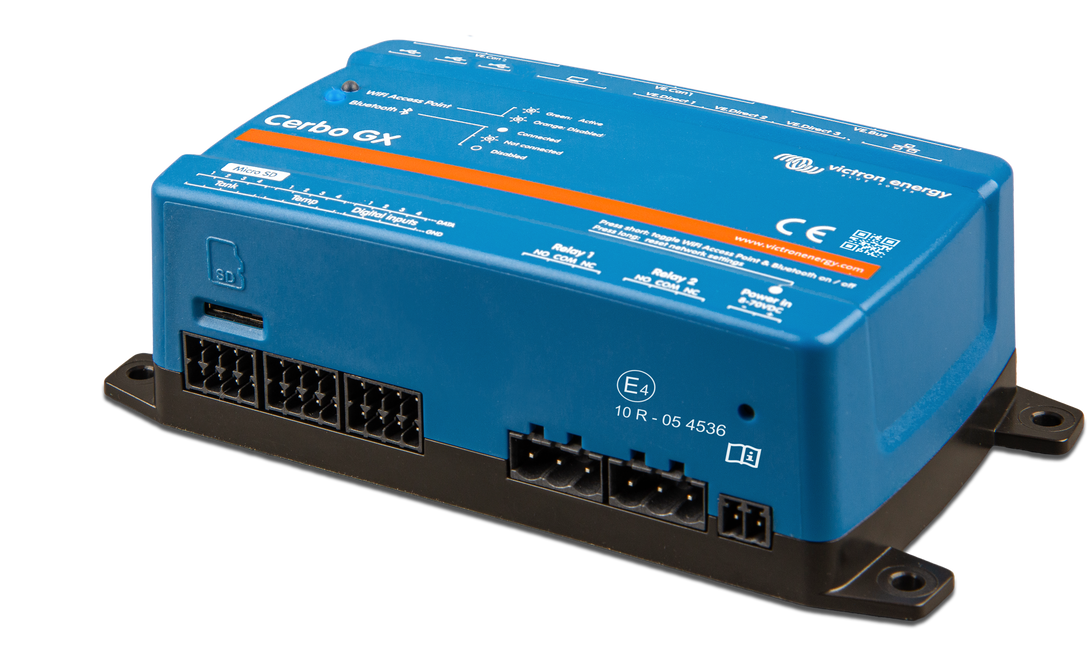

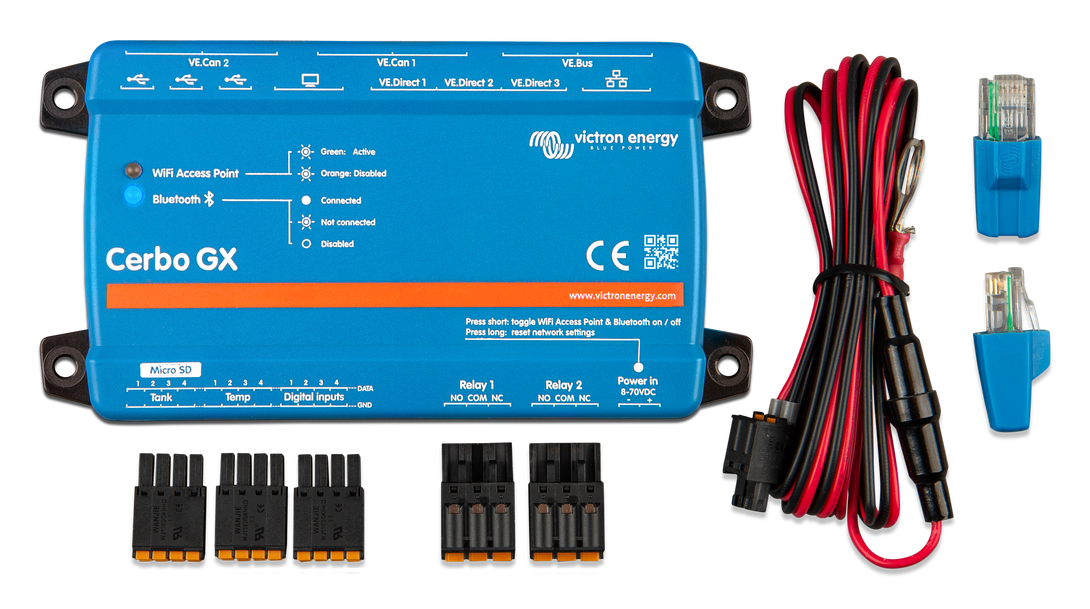

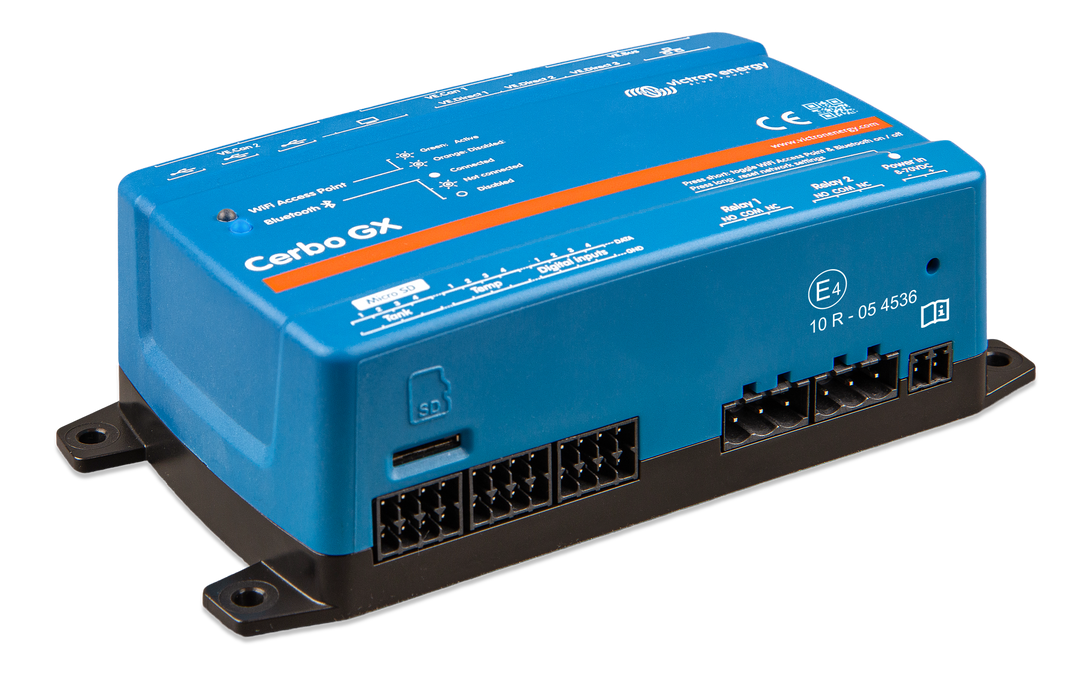

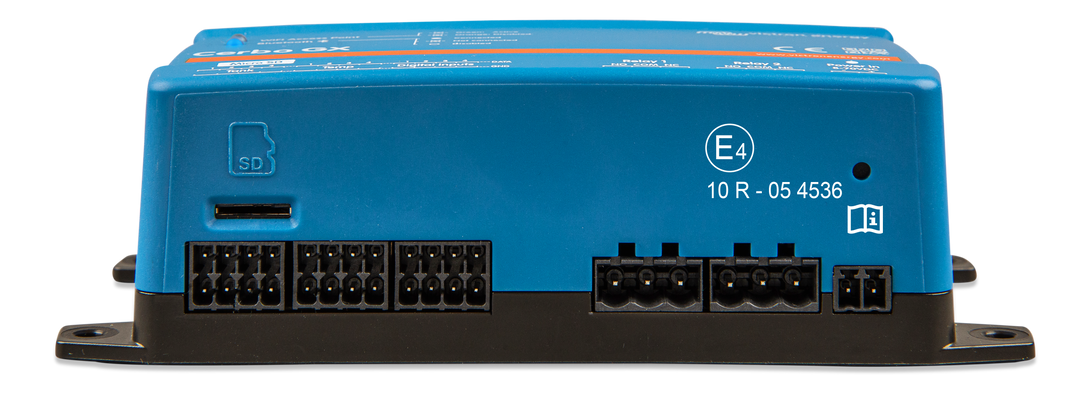

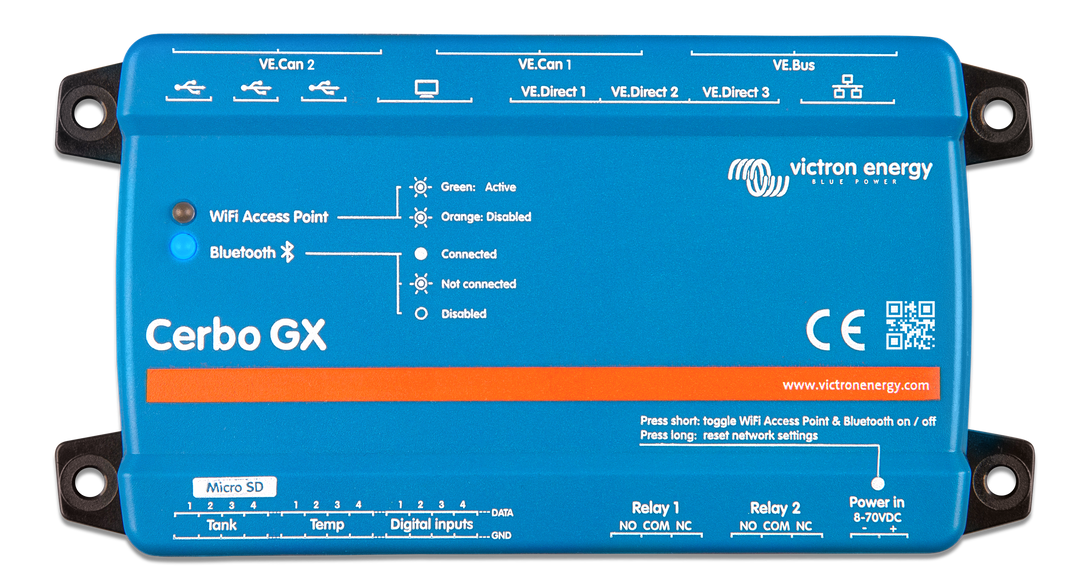

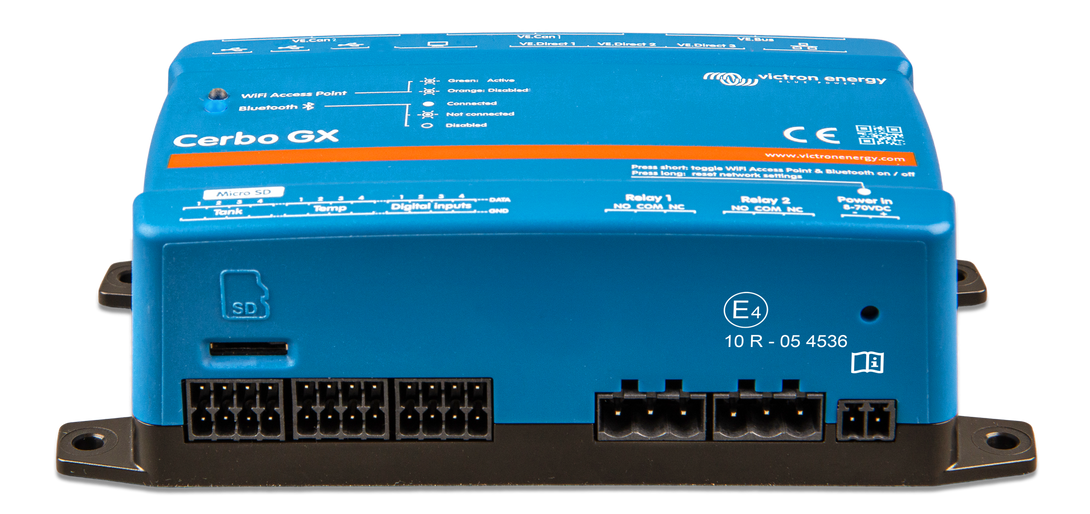

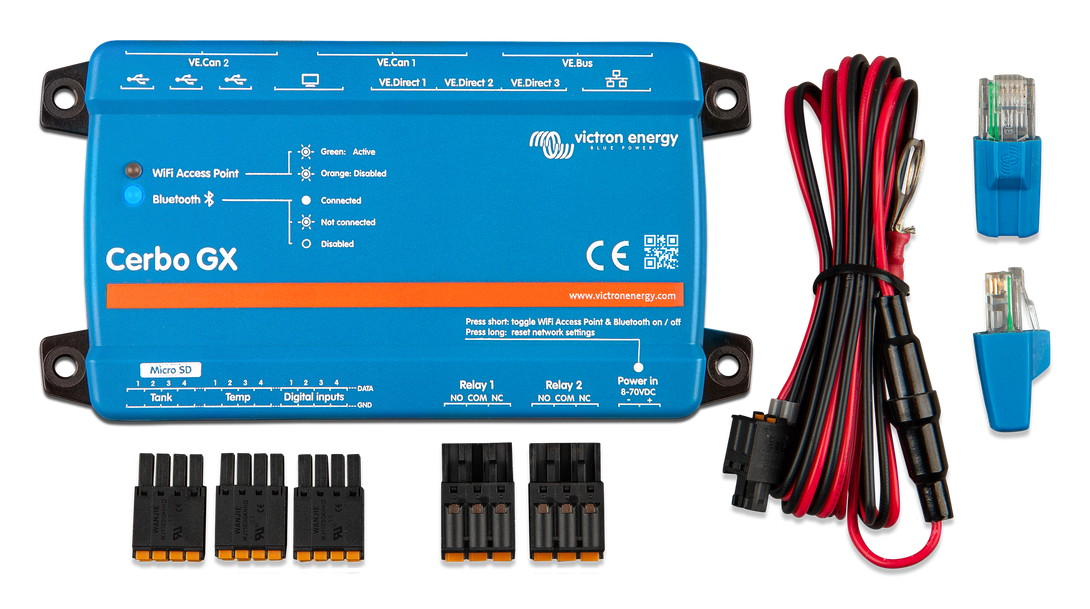

Victron Cerbo GX MK2 Monitoring System

The Victron Cerbo GX MK2 is an advanced communication centre offering real-time monitoring, intelligent control, and seamless integration with Victron Energy products and third-party devices.

Comprehensive System Monitoring: Track battery state of charge, power consumption, solar harvest, generator/mains input, tank levels, and temperatures. Enhanced Connectivity: Dual VE.Can ports, three fully functional USB ports, and built-in Wi-Fi and Bluetooth for easy local configuration and remote access. Intelligent Automation: Utilise Node-RED to create custom control flows, such as scheduling generator starts and managing shore-power current limits. Versatile Mounting Options: Easily mount on a DIN rail or wall, with optional GX Touch touchscreen displays for direct control. Future-Proof Design: Supports a wide range of Victron Energy products and third-party devices, ensuring long-term compatibility and scalability. Dimensions: 78 x 154 x 48mm Weight: 0.366kg
£286.80 £149.22 SAVE £137.58
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: BPP900451110
IN STOCK
Receive between -

Frequently Bought Together

Total price:£541.60 £339.67
Product Details

The Victron Cerbo GX MK2 (SKU: BPP900451110) is a next-generation communication centre designed to provide comprehensive monitoring and control of your energy system. Whether you're managing an off-grid solar setup, marine installation, or RV power system, the Cerbo GX MK2 offers enhanced connectivity, advanced features, and seamless integration with Victron Energy products and third-party devices.

Key Features:

  • Dual-Core Processor: Equipped with a powerful dual-core processor, the Cerbo GX MK2 ensures smooth management of all connected devices, delivering real-time insights into your system's performance.

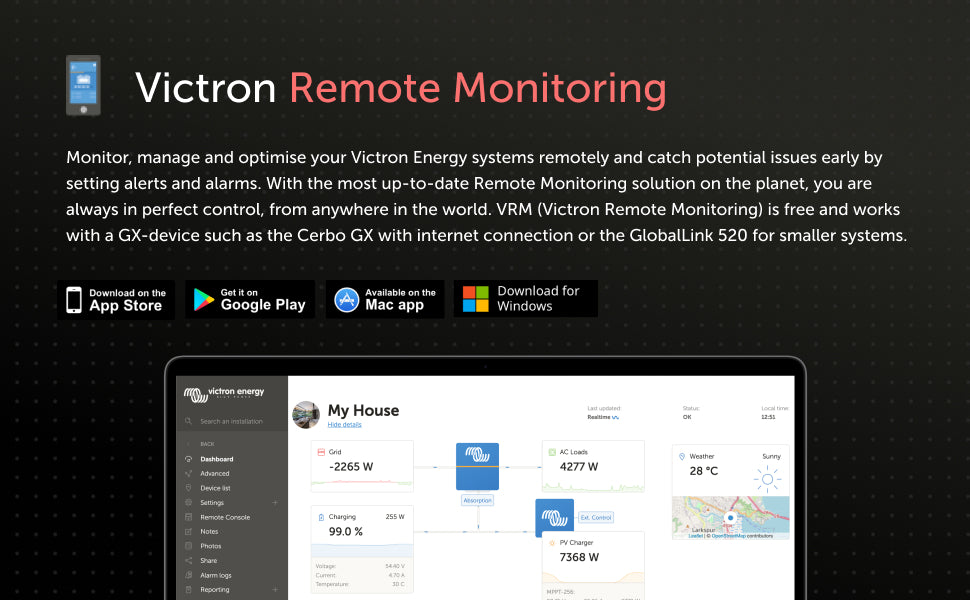

  • Enhanced Connectivity: Features dual VE.Can ports (one isolated), three fully functional USB ports, and built-in Wi-Fi and Bluetooth for easy local configuration and remote access via the VictronConnect app or the Victron Remote Management (VRM) portal.
  • Advanced Monitoring: Monitor battery state of charge, power consumption, solar harvest, generator/mains input, tank levels, and temperatures. The Cerbo GX MK2 also supports impulse-counting digital inputs for pulse-based sensors and meters.
  • Intelligent Automation: Utilise Node-RED, a browser-based, low-code editor, to create custom control flows, such as scheduling generator starts, managing shore-power current limits, or programming temperature-controlled relays.
  • Versatile Mounting Options: Easily mount the Cerbo GX MK2 on a DIN rail or wall. The optional GX Touch 50 or 70 touchscreen displays provide an instant overview of your system and allow for direct control.

With its robust features and user-friendly interface, the Victron Cerbo GX MK2 is the ideal solution for those seeking comprehensive control and monitoring of their energy systems.

Product Specifications

Performance & Electrical Specifications

  • Supply Voltage: 8 – 70 VDC
  • Power Draw (without GX Touch): 2.8 W @ 12 V
  • Power Draw (with GX Touch): Backlight off: 3.8 W @ 12 V | Backlight at max: 4.8 W @ 12 V
  • Operating Temperature Range: -20 to +50 °C

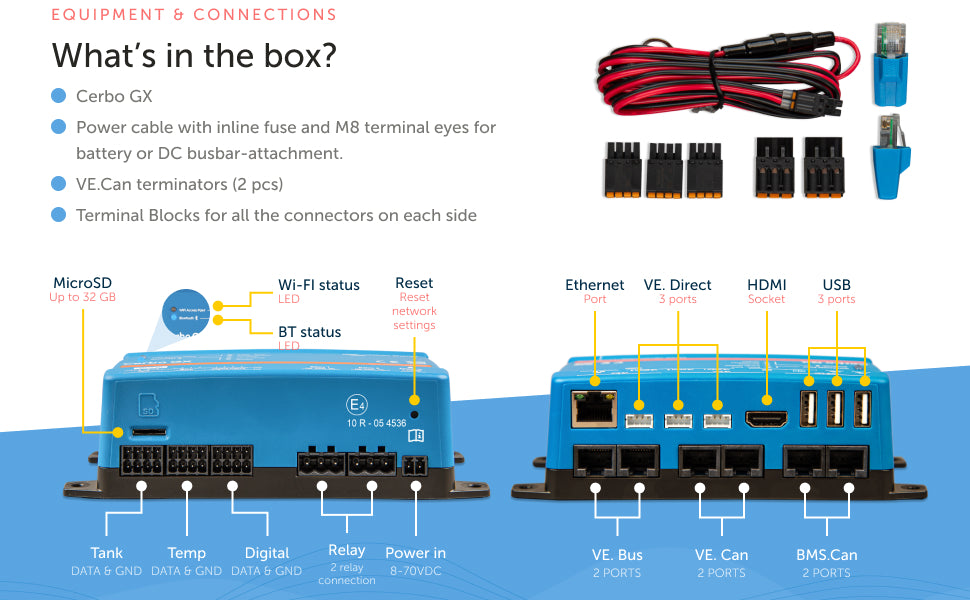

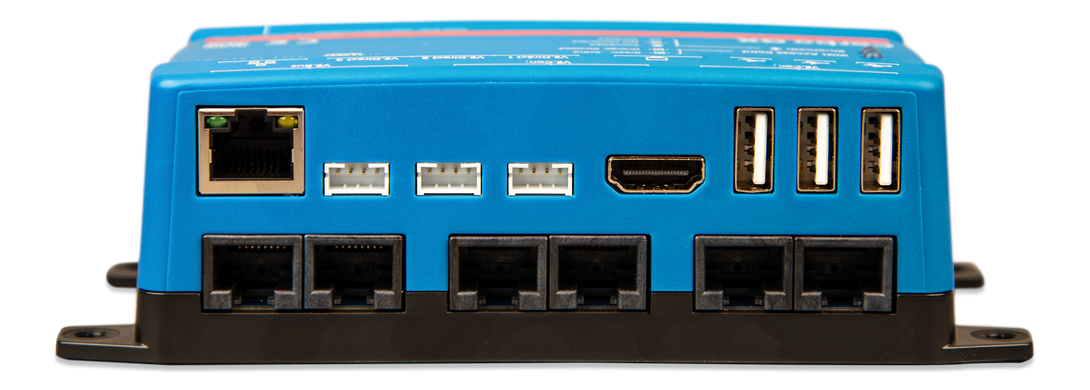

Communication & Connectivity

  • VE.Direct Ports (Always Isolated): 3 (supports up to 15 VE.Direct devices via USB hubs)
  • VE.Bus (Always Isolated): 2 paralleled RJ45 sockets
  • VE.Can: 2 ports (VE.Can 1 isolated, VE.Can 2 non-isolated)
  • BMS-Can Port: Yes (integrated via VE.Can)
  • USB Host Ports: 3 (High-power ports for data and display connectivity)
  • Ethernet: 10/100 RJ45 socket (isolated except for shield)
  • WiFi: Built-in
  • Bluetooth: Integrated for connection and configuration via VictronConnect
  • Rotated RJ45 Sockets: Sockets are rotated 180 degrees on this model for easier cable removal

I/O Monitoring & Control

  • Resistive Tank Level Inputs: 4
  • Temperature Sense Inputs: 4
  • Digital Inputs: 4 (Capable of pulse counting)
  • Relays: 2 x NO/NC
    - DC Capacity: 6 A up to 30 VDC | 1 A up to 70 VDC
    - AC Capacity: 6 A, 125 VAC
    - Functionality: Programmable for alarms, generator start/stop, tank pump control, or temperature-controlled operation

Mechanical Specifications

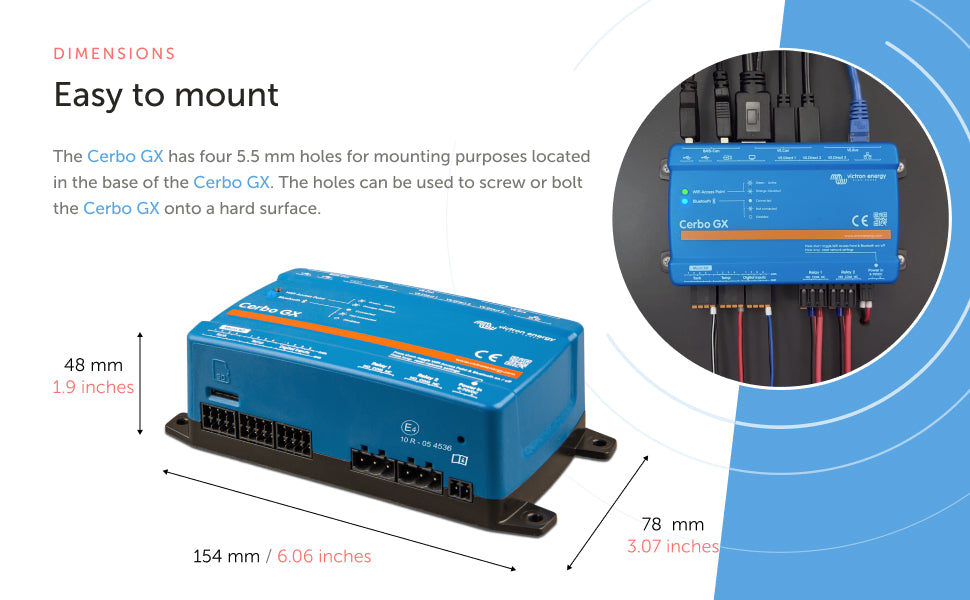

  • Outer Dimensions (h x w x d): 78 x 154 x 48 mm
  • Protection Category: IP20
  • Mounting: Wall mount or DIN rail (Requires optional 35mm DIN rail adapter)

Standards & Compliance

  • Safety: IEC 62368-1
  • EMC: EN 301489-1, EN 301489-17
  • Automotive: ECE R10-6
