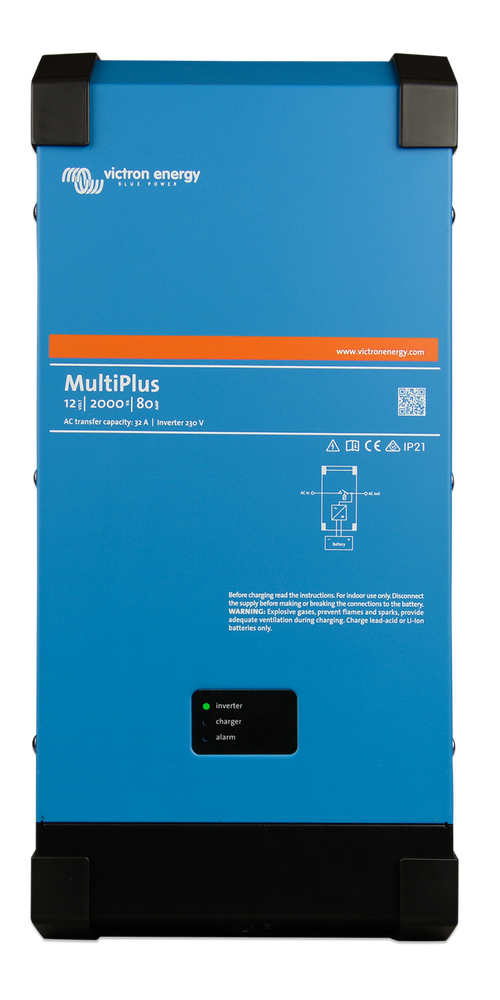

Victron MultiPlus 2000VA 12V Inverter/Charger - PMP122200000

Performance & Electrical Specifications (Inverter)

• Nominal Battery Voltage: 12 V
• Input Voltage Range: 9.5 – 17 V
• Continuous Output Power at 25°C: 2000 VA
• Continuous Output Power at 25°C: 1600 W
• Continuous Output Power at 40°C: 1450 W
• Continuous Output Power at 65°C: 1000 W
• Peak Power: 3500 W
• Maximum Efficiency: 93%
• Zero-load Power: 10 W
• Zero-load Power in Search Mode: 3 W
• Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

• AC Input Voltage Range: 187 – 265 VAC
• AC Input Frequency: 45 – 65 Hz
• Charge Voltage 'Absorption': 14.4 V
• Charge Voltage 'Float': 13.8 V
• Storage Mode: 13.2 V
• Charge Current House Battery: 80 A
• Charge Current Starter Battery: 1 A
• Battery Temperature Sensor: Yes
• Compatible Battery Types: Lithium, Sealed, AGM, Gel, and Flooded batteries

Key Features & System Integration

• PowerControl & PowerAssist: Automatically manages AC input to prevent overloading a generator or shore supply and supplements the source with battery power when needed.
• Transfer Switch: 32 A
• Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output.
• Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
• VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
• Remote On-Off: Yes
• Search Mode: Reduces power consumption in no-load operation by approximately 70%.
• DIP Switches: For on-site setting of battery charge voltage and search mode.

Mechanical Specifications

• Enclosure Material & Colour: Steel (Blue RAL 5012)
• Protection Category: IP21
• Battery Connection: M8 bolts
• 230V AC Connection: Screw terminals
• Weight: 15.5 kg
• Dimensions (h x w x d): 506 x 236 x 147 mm
• Operating Temperature Range: -40 to +65°C (fan assisted cooling)
• Humidity: Max 95% (non-condensing)

Standards & Protection

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
• Emission Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
• Automotive Directive: ECE R10-5
• Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
