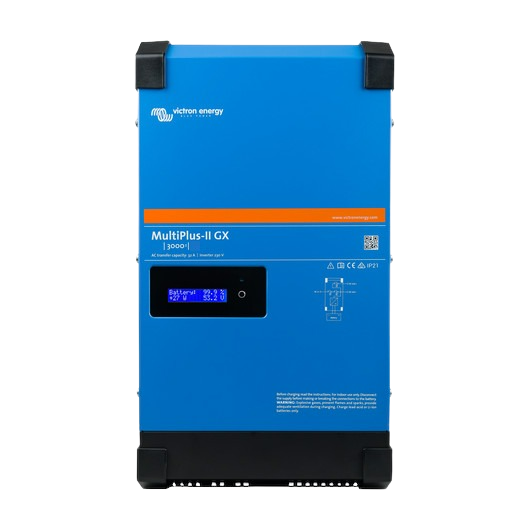

Victron Energy MultiPlus-II 24V 3000VA 70A 32A GX

£1,773.60 £1,204.79 SAVE £568.81
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: PMP242306000
AVAILABLE IN 7-10 DAYS
Product Details

An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.



Features

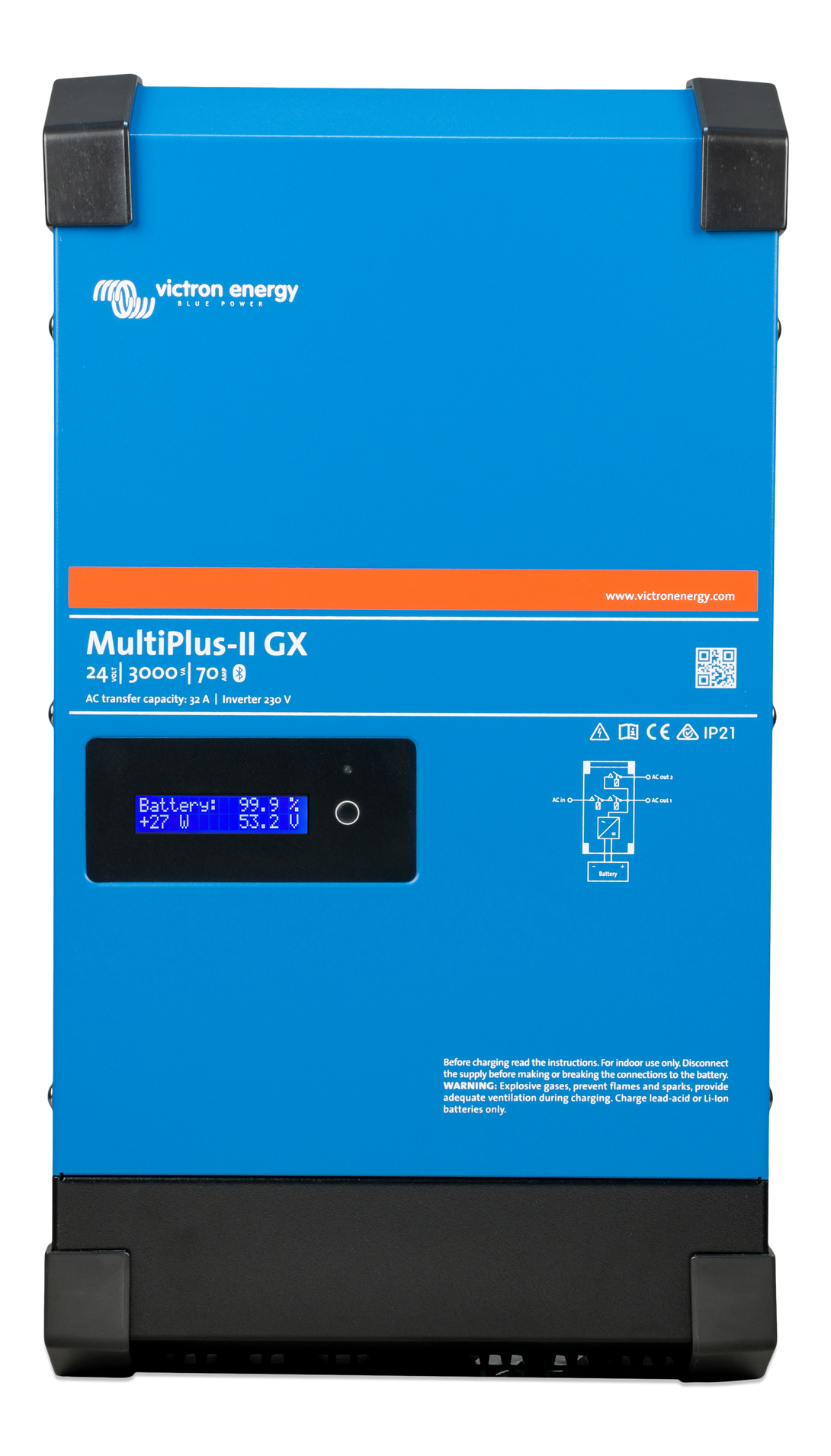

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.



Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.



GX device

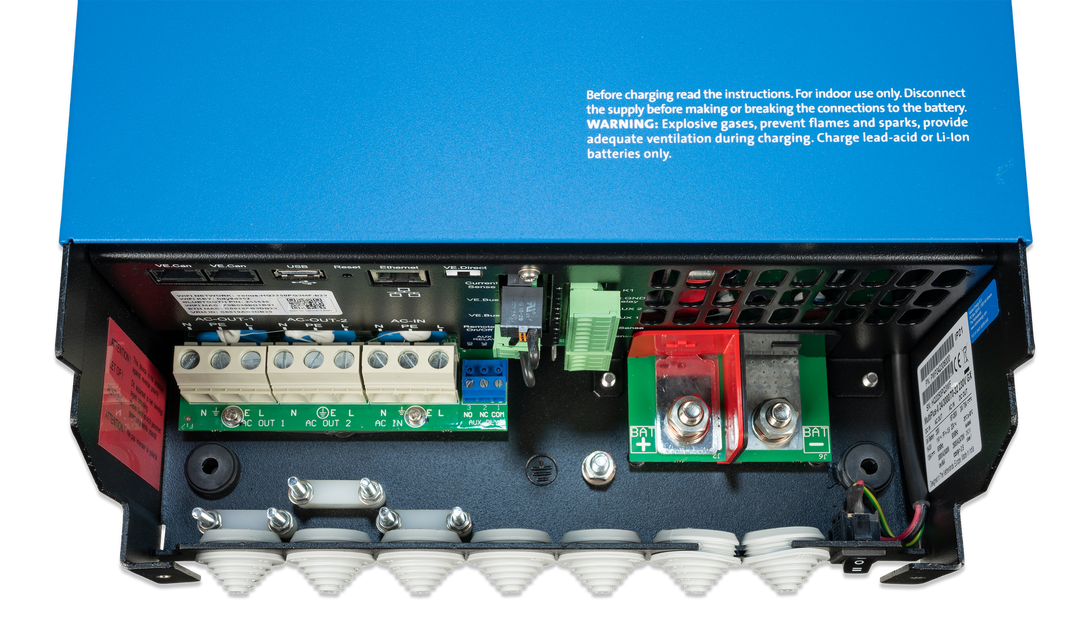

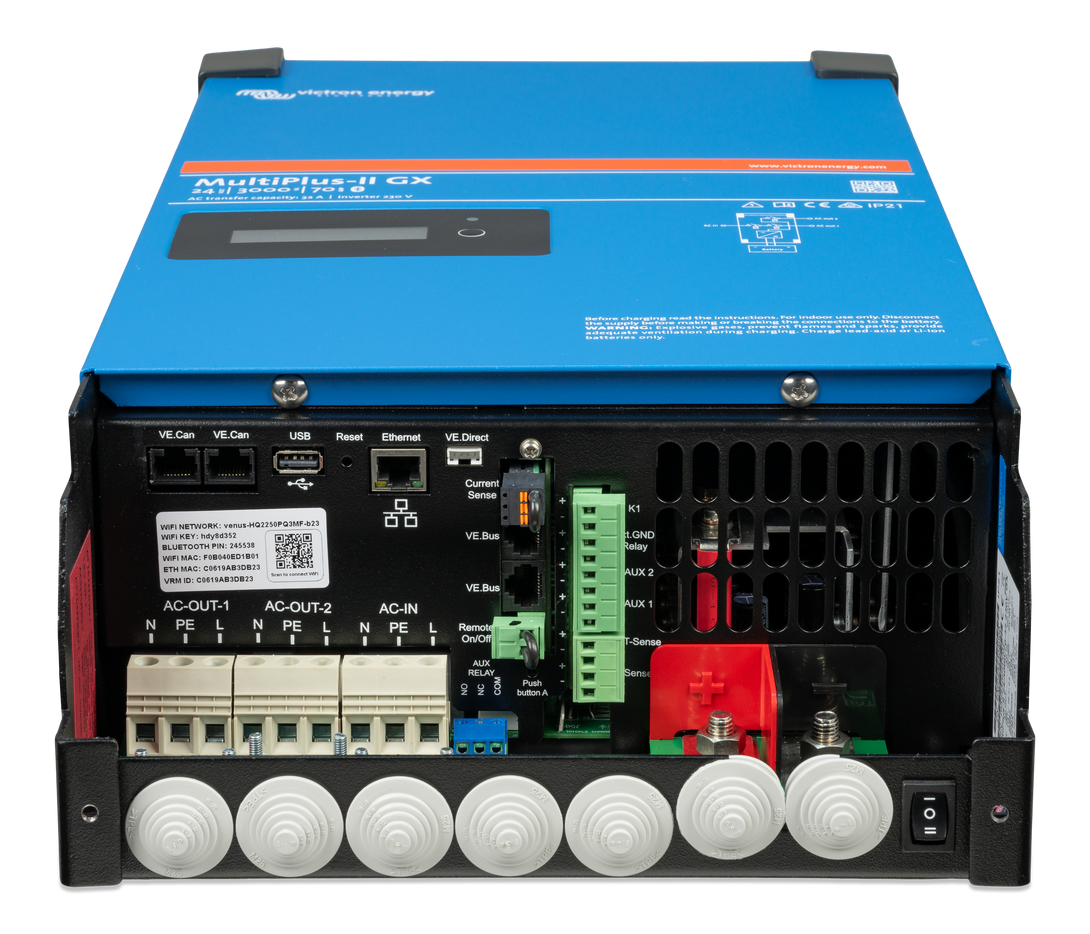

The integrated GX device includes:

A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.

A USB port.

A Ethernet port.

A VE.Direct port.



Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.



Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

UD0123

Product Specifications

Technical Specifications

Combined for SKUs: PMP242306000

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: Please consult the certificates on our website

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts

Battery Voltage Nominal: 24 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 28.8 VDC

Charge Voltage Float: 27.6 VDC

Charge Voltage Storage: 26.4 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus,VE.Can,VE.Direct,BMS-Can,WiFi,Ethernet

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

DC Input Voltage Range: [19, 33] VDC

Depth: 147 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

External Ac Current Sensor: 50A or 100A (optional)

Fan Assist Cooling: Yes

Height: 506 mm

Material: Steel

Max Ac Input Current: 32 A

Max Altitude: 2,000 m

Max Apparent Feed-in Power: 3,000 VA

Max Efficiency: 94 %

Max Humidity: 95 %

Maximum Battery Charge Current: 70 A

Parallel Operation: Yes

Peak Power Rating: 5,500 W

Power Assist: Yes

Power Control: Yes

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP22

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1,EN-IEC 62109-2

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 32 A

Ups Standard: IEC 62040-1

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 20 kg

Width: 275 mm

Zero Load Power: 13 W

Zero Load Power (AES): 9 W

Zero Load Power (Search): 3 W

Source: Victron
