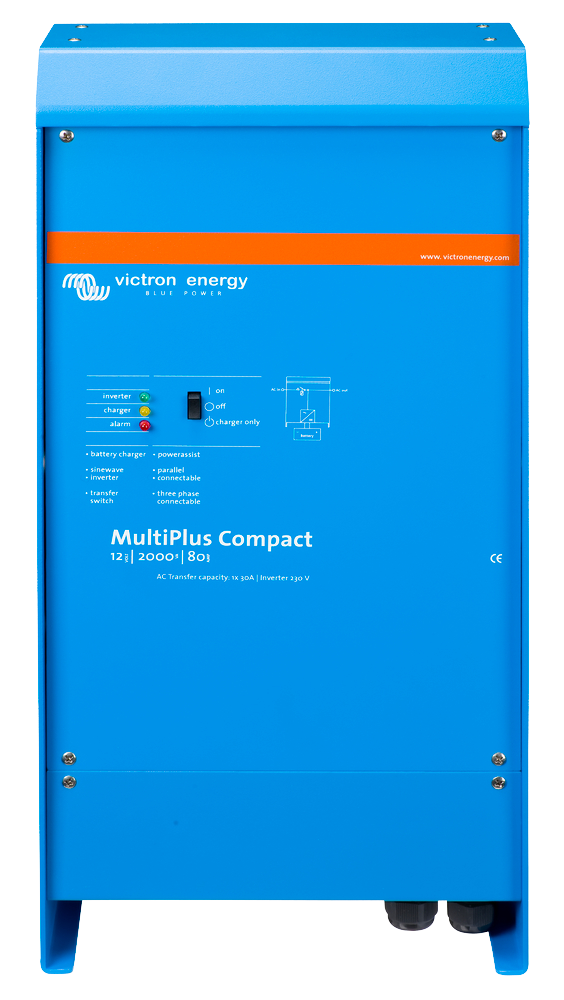

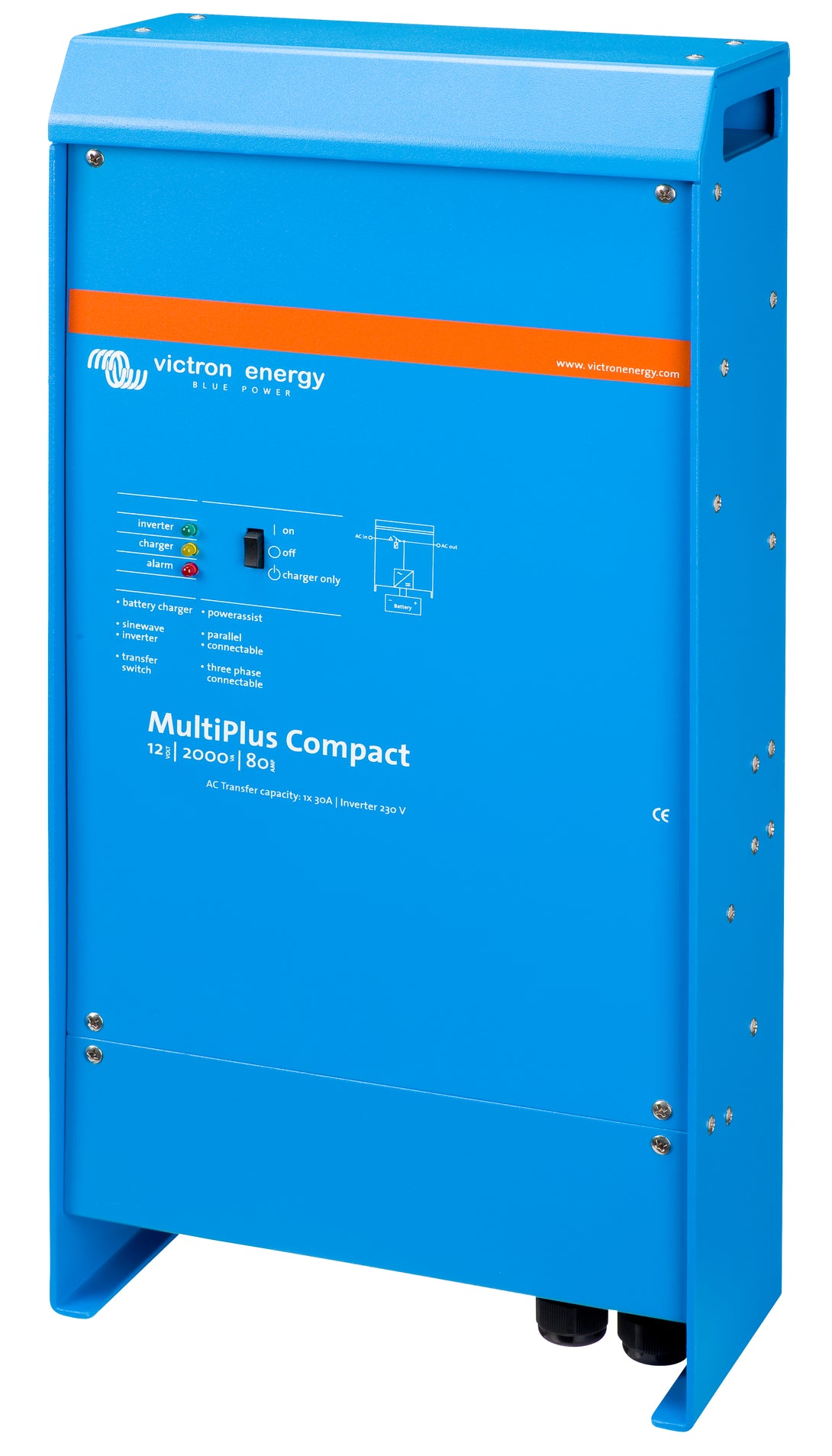

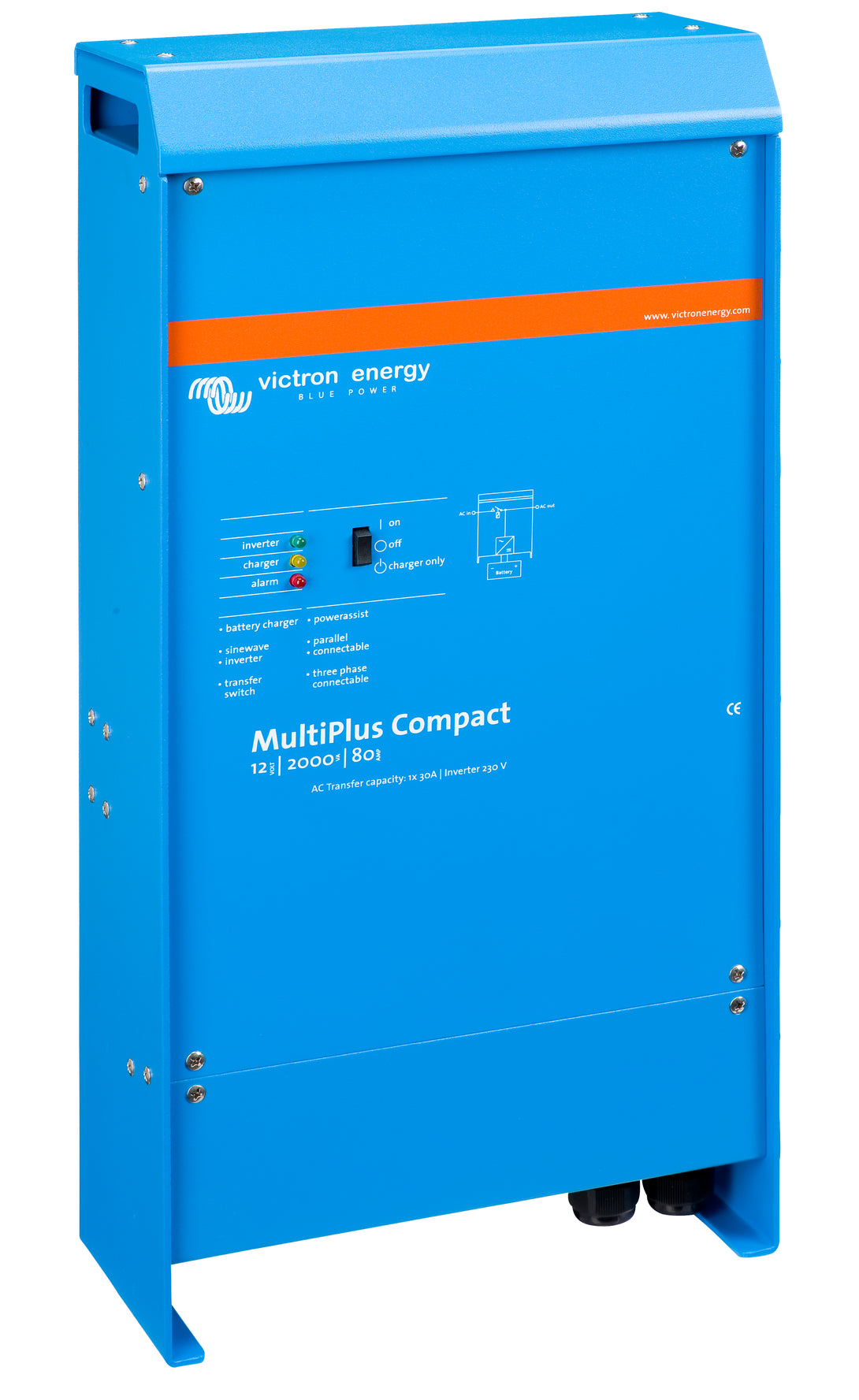

Victron MultiPlus Compact 12/2000/80 Inverter Charger

Performance & Electrical Specifications (Inverter)

• Nominal Battery Voltage: 12 V
• Input Voltage Range: 9.5 – 17 VDC
• Continuous Output Power at 25°C: 2000 VA
• Continuous Output Power at 25°C: 1600 W
• Continuous Output Power at 40°C: 1400 W
• Continuous Output Power at 65°C: 1000 W
• Peak Power: 4000 W
• Maximum Efficiency: 93%
• Zero Load Power: 9 W
• Zero Load Power (AES Mode): 7 W
• Zero Load Power (Search Mode): 3 W
• Output Voltage: 230 VAC ± 2%
• Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

• AC Input Voltage Range: 187 – 265 VAC
• Input Frequency: 45 – 65 Hz
• Power Factor: 1
• Charge Voltage 'Absorption': 14.4 VDC
• Charge Voltage 'Float': 13.8 VDC
• Storage Mode: 13.2 VDC
• Charge Current House Battery: 80 A
• Charge Current Starter Battery: 4 A
• Battery Temperature Sensor: Yes
• Lithium-Ion Battery Compatible: Yes

Key Features & System Integration

• PowerControl: Automatically adjusts charging to prevent overloading of a limited generator, shore side, or grid supply by taking account of other AC loads.
• PowerAssist: Supplements the alternative source with battery power during periods of peak demand, ensuring insufficient shore or generator power is immediately compensated.
• Parallel Operation: Up to 6 units can operate in parallel to achieve higher power output.
• Three-Phase Capability: Three units of the same model can be configured for three-phase output, and up to 6 sets of three units can be parallel connected for high-capacity systems.
• Programmable Relay: Features a relay that can be configured for general alarms, DC under-voltage, or generator start/stop functions.
• VE.Bus Communication Port: Essential for parallel and three-phase operation, remote monitoring, and system integration.
• Remote On-Off: Yes
• Monitoring & Control: Supports several options including Battery Monitor, Multi Control Panel, Ekrano GX or other GX devices, smartphones/tablets (Bluetooth Smart), and computers (USB or RS232).

Mechanical Specifications

• Enclosure Material & Colour: Aluminium (Blue RAL 5012)
• Protection Category: IP20
• Battery Connection: M8 bolts
• 230 VAC Connection: Spring-clamp
• Weight: 12 kg
• Dimensions (h x w x d): 520 x 255 x 125 mm
• Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
• Humidity: Max 95% (non-condensing)
• Maximum Altitude: 2000 m

Standards & Protection

• Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
• Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
• Road Vehicles: ECE R10-4
• Integrated Protection: Output short circuit, overload, battery voltage high, battery voltage low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
