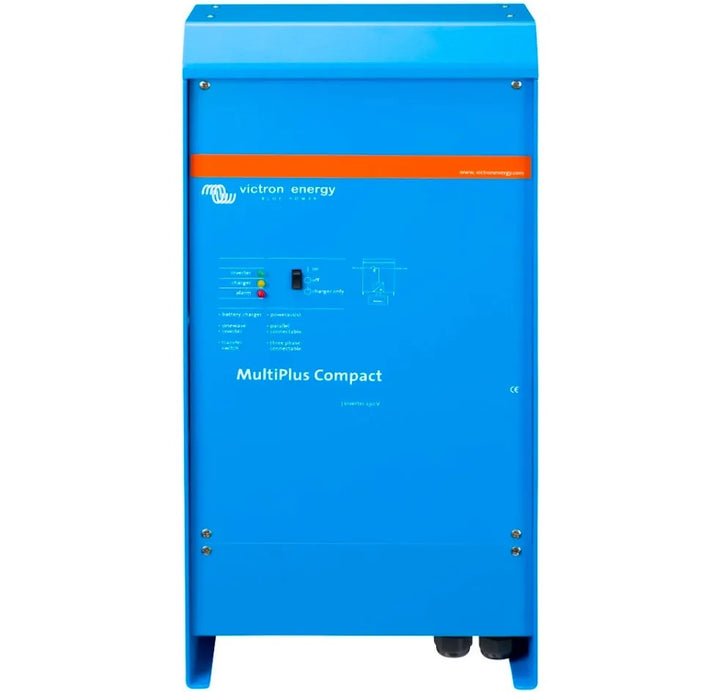

Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus

Compact 12V inverter/charger with 1200VA output and 50A charging, featuring true sine wave power, VE.Bus compatibility, and high-speed AC transfer.

Clean Power: True sine wave output for sensitive electronics. Adaptive Charging: 50A charger optimises battery health and lifespan. Uninterrupted Supply: AC transfer switch ensures seamless power switching. Scalable System: VE.Bus enables integration with multiple units. Space-Saving Design: Compact form factor fits tight installations. Dimensions: 375 x 214 x 110mm Weight: 10kg
£903.60 £542.16 SAVE £361.44
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: CMP122120000
AVAILABLE IN 7-10 DAYS
Product Details

The Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus is a compact and reliable inverter/charger designed for off-grid, mobile, and marine applications. Combining a 1200VA true sine wave inverter, a 50A battery charger, and a high-speed AC transfer switch, it delivers uninterrupted power and efficient energy management in one space-saving unit.

Key Features:

  • 1200VA True Sine Wave Inverter: Provides clean, stable AC power suitable for sensitive electronics.

  • 50A Adaptive Battery Charger: Extends battery life and optimises performance using advanced charging algorithms.

  • High-Speed AC Transfer Switch: Automatically switches between shore power, generator, and inverter mode in under 20 milliseconds.

  • VE.Bus Communication: Enables system integration, remote monitoring, and configuration with VictronConnect.

  • Compact Design: Ideal for installations with limited space, making it perfect for campervans, yachts, and small off-grid setups.

The MultiPlus Compact allows parallel operation for larger power requirements and PowerAssist functionality to prevent overload of limited AC sources. Its versatility and durability make it an essential component for reliable off-grid or mobile energy systems.

Product Specifications

Performance & Electrical Specifications (Inverter)

  • Nominal Battery Voltage: 12 V
  • Input Voltage Range: 9.5 – 17 VDC
  • Continuous Output Power at 25°C: 1200 VA
  • Continuous Output Power at 25°C: 1000 W
  • Continuous Output Power at 40°C: 900 W
  • Continuous Output Power at 65°C: 600 W
  • Peak Power: 2400 W
  • Maximum Efficiency: 93%
  • Zero Load Power: 8 W
  • Zero Load Power (AES Mode): 5 W
  • Zero Load Power (Search Mode): 2 W
  • Output Voltage: 230 VAC ± 2%
  • Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)

Charger Specifications

  • AC Input Voltage Range: 187 – 265 VAC
  • Input Frequency: 45 – 65 Hz
  • Power Factor: 1
  • Charge Voltage 'Absorption': 14.4 VDC
  • Charge Voltage 'Float': 13.8 VDC
  • Storage Mode: 13.2 VDC
  • Charge Current House Battery: 50 A
  • Charge Current Starter Battery: 4 A
  • Battery Temperature Sensor: Yes
  • Lithium-Ion Battery Compatible: Yes

Key Features & System Integration

  • PowerControl: Automatically adjusts charging to prevent overloading of a limited generator or shore supply.
  • PowerAssist: Supplements a limited AC source with battery power during periods of peak demand.
  • Parallel & Three-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output. Three units of the same model can also be configured for three-phase output.
  • Programmable Relay: Features a relay that can be configured for general alarms, DC under-voltage, or generator start/stop functions.
  • VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration.
  • Remote On-Off: Yes
  • Monitoring & Control: Supports various options including Digital Multi Control Panel, GX devices (Cerbo GX, Ekrano GX), smartphones/tablets (via Bluetooth Smart), and computers (USB).

Mechanical Specifications

  • Enclosure Material & Colour: Aluminium (Blue RAL 5012)
  • Protection Category: IP21
  • Battery Connection: 1.5-meter battery cables included
  • 230 VAC Connection: G-ST18i connector
  • Weight: 10 kg
  • Dimensions (h x w x d): 375 x 214 x 110 mm
  • Operating Temperature Range: -40 to +65°C (fan-assisted cooling)
  • Humidity: Max 95% (non-condensing)

Standards & Compliance

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
  • Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
  • Road Vehicles: ECE R10-4
  • Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.

Shipping & Collection

Tracked Delivery (Currently 1-3 business days):

  • Free over £250.
  • £5.99 for orders under £250.
  • £5.99 for orders under £50.

Next Business Day Delivery:

  • £15 Flat Rate.

Collection:

  • Free to collect from our warehouse.

Pre-Order:

  • 5-10 Business Days delivery unless otherwise stated.

Shipping Policy

Datasheets
Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus - Manual
Victron MultiPlus Compact 12/1200/50-16 230V VE.Bus - Data Sheet
Ask The AI About This Product
System capability

What Can I Power With This?

This kit includes a 1200VA inverter with an estimated continuous output of ~1000W. Well suited to more demanding off-grid living, including refrigeration and selected heating appliances.

Inverter size 1200VA
Continuous output ~1000W

Typical appliances you can run

  • Compressor fridge / freezer (all sizes)
  • Induction hob on a low power setting (around 800–1000W)
  • Small slow cooker (120–200W)
  • Electric blanket (60–100W)
  • Small inverter air-con (for example Dometic, around 650W running)
  • Water pump / pressure pump (300–600W)
  • CPAP with heated humidifier (around 100W)
  • Filter coffee machine (around 800–1000W)
