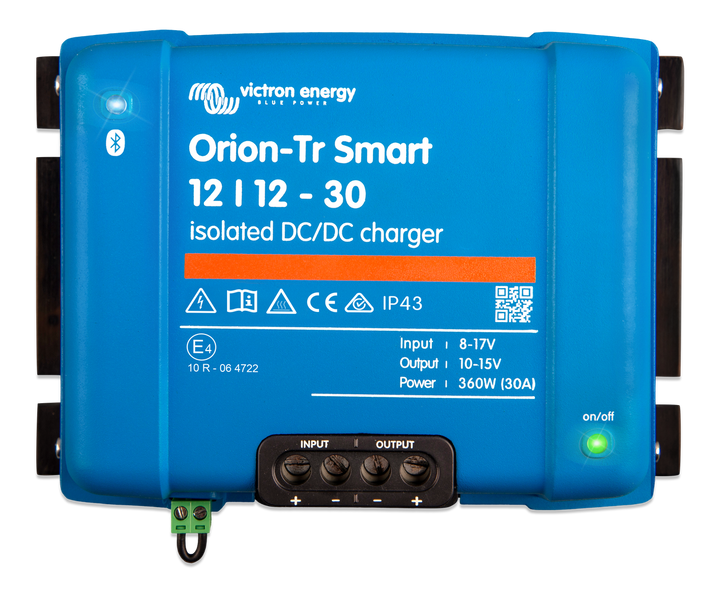

Victron Battery To Battery Charger 30A – 12/12 Orion-Tr Smart – Isolated DC-DC Charger

The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery.

30A Charging Current (360W) For 12V systems. Isolated for systems grounded to a negative busbar. Intelligent charging protects both batteries. Monitor via Bluetooth. Dimensions: 186 x 130 x 80mm Weight: 1.8kg
£308.40 £169.99 SAVE £138.41
This product is on clearance/reduced pricing.
or pay interest-free installments
Klarna
PayPal
Add to Wishlist
SKU: ORI121236120
AVAILABLE IN 7-10 DAYS
Product Details

The Victron 12/12 Orion-Tr Smart 30A Isolated DC-DC Charger is engineered to provide efficient and safe charging for dual 12V battery systems. Its isolated design ensures that the input and output have separate chassis grounds, making it ideal for applications where electrical isolation is required.

Efficient Battery Charging on the Go:
The Victron Orion-Tr Smart 30A Battery to Battery Charger intelligently charges your leisure batteries from your vehicle's starter battery while driving, ensuring a safe and optimized charging process.

Modern Vehicle Compatibility:
Designed for vehicles with Euro 5 or Euro 6 engines equipped with smart alternators, the Orion-Tr Smart B2B eliminates the limitations of basic Voltage Sensitive Relays (VSRs) and offers a viable charging solution.

Easy Installation and Operation:
With a straightforward installation process that requires access to the vehicle's starter battery, the Orion-Tr Smart B2B is user-friendly and efficient. The 30A model charges the leisure battery at a rate of 30A/hr.

Smart Functionality with Bluetooth:
Equipped with built-in Bluetooth, the Victron battery to battery charger connects wirelessly to the VictronConnect App, available on Android or iOS devices. This smart functionality allows for wireless monitoring, programming, and remote control via a switch.

Versatile Charger for Various Applications:
Ideal for dual battery systems in vehicles or boats where the alternator and start battery charge the service battery. The Orion Tr-Smart charger is suitable for both lead acid and lithium batteries, with models available up to 400W. It operates effectively in high temperatures up to 55°C, providing a full-rated output up to 40°C.

Product Specifications

Performance & Electrical Specifications

  • Input Voltage Range: 8 – 17 V
  • Under Voltage Shut Down: 7 V
  • Under Voltage Restart: 7.5 V
  • Nominal Output Voltage: 12.2 V
  • Output Voltage Adjust Range: 10 – 15 V
  • Output Voltage Tolerance: +/- 0.2%
  • Output Noise: 2 mV rms
  • Continuous Output Current (at Nom. Output Voltage and 40°C): 30 A
  • Maximum Output Current (10s at Nom. Output Voltage): 40 A
  • Short Circuit Output Current: 60 A
  • Continuous Output Power at 25°C: 430 W
  • Continuous Output Power at 40°C: 360 W
  • Efficiency: 87%
  • No Load Input Current: < 80 mA
  • Standby Current: < 1 mA
  • Galvanic Isolation: 200 VDC between input, output, and case

Smart Features & Connectivity

  • Bluetooth Smart Enabled: Allows for wireless monitoring, changing settings, and updating the software using Apple and Android smartphones, tablets, or other devices.
  • Fully Programmable: Battery charge algorithm is fully adjustable (via the app) or can be set to a fixed output.
  • Engine Running Detection: Features a built-in mechanism to detect when the engine is running, preventing the charger from discharging the starter battery when the alternator is not active.
  • Remote On-Off: Dedicated terminal for a remote on-off switch or relay contact to control the unit without high-current wiring.
  • Adaptive 3-stage Charge Algorithm: Includes Bulk, Absorption, and Float stages to optimize battery life; for lithium batteries, the charging time is fixed (default 2 hours).

Mechanical & Environmental

  • Operating Temperature Range: -20 to +55 °C (Derating 3% per °C above 40 °C)
  • Maximum Humidity: 95% non-condensing
  • DC Connection: Screw terminals
  • Maximum Cable Cross-Section: 16 mm² (AWG6)
  • Weight: 1.8 kg (4.2 lb)
  • Dimensions (h x w x d): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
  • Protection Category: IP43 (Electronic components), IP22 (Connection area)

Standards & Compliance

  • Safety: EN 60950
  • Emission: EN 61000-6-3, EN 55014-1
  • Immunity: EN 61000-6-2, EN 61000-6-1, EN 55014-2
  • Automotive Directive: ECE R10-5
